Image similar

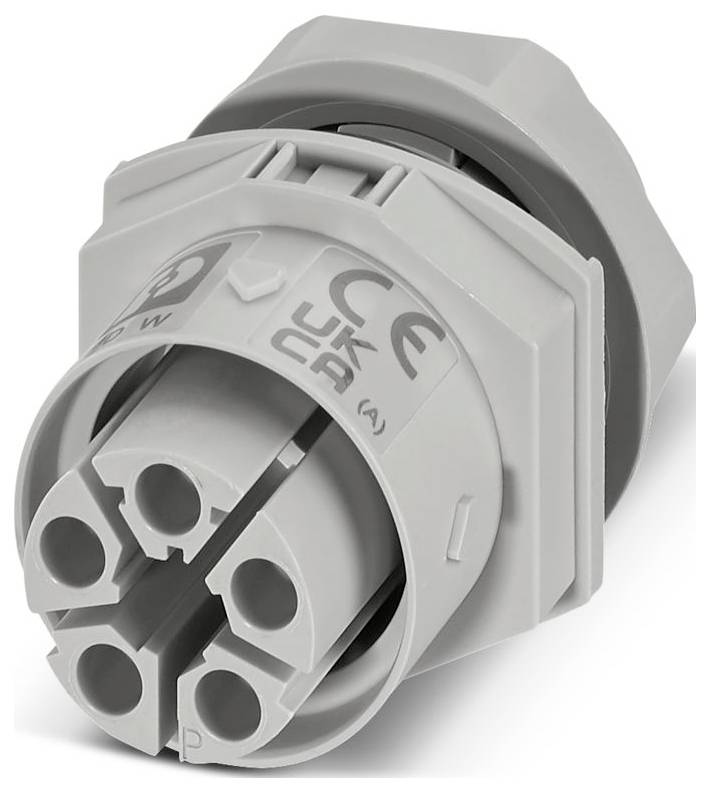

Phoenix Contact 1088692 Feedthrough
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of connections per pin:1
- Colour of coding/contact insert: Grey
- Thread connection dimension M25
- Halogen-free: No.
- Mechanical coding: Yes
- Surface treatment contacts: Silver-plated
- PIN identification: Other
- Number of pins: 5
- Product type
Feedthrough
- Type A
Socket
- Connection
Push-in wire connector
- Rated voltage
600 V
- Test current
17.5 A
- Cable Ø (max.)
2.5 mm²
- Cable Ø up to
0.5 mm²
- Cable Ø range
0.5 - 2.5 mm²
- Number of pins
5
IP66
- Height
32.998247 mm
- Length
43.45 mm
- Width
32.998247 mm
- Case colour
Grey
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563445 Phoenix Contact 1088692 Feedthrough
User & Safety Instructions
User & Safety Instructions 3563445 Phoenix Contact 1088692 Feedthrough
Description
Wall ducts, for connectors, product family: IPD, connection type: Push-in connection, pin number: 4+PE, M25, socket, 0.5 mm² ... 2.5 mm², 600 V, 17.5 a, PA, gray, Coding: P
This text is machine translated.
This text is machine translated.
