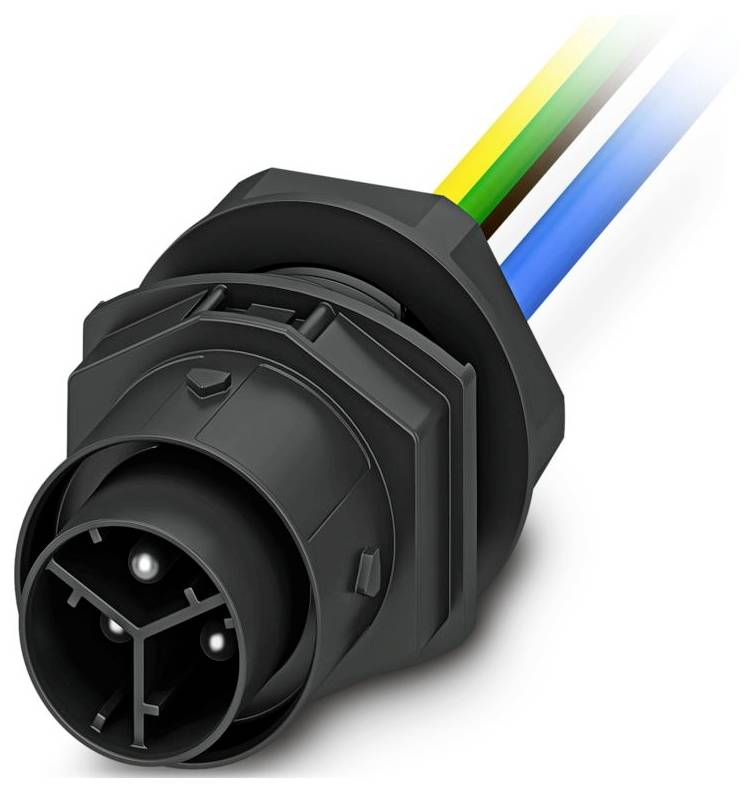

Phoenix Contact 1088693 Feedthrough 0.5 m
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of connections per pin:1
- Colour of the coding/contact insert: Black
- Thread connection dimension M20
- Halogen-free: No.
- Mechanical coding: Yes
- Surface treatment contacts: Silver-plated
- Pole identification L, N, PE
- Number of poles: 3
- Product type
Feedthrough
- Cable length
0.5 m
- Rated voltage
450 V
- Test current
17.5 A
- Mounting type
Wall
- Number of pins
3
IP66
- Height
28.498247 mm
- Length
63.525 mm
- Width
28.498247 mm
- Case colour
Black
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563452 Phoenix Contact 1088693 Feedthrough 0.5 m
User & Safety Instructions
User & Safety Instructions 3563452 Phoenix Contact 1088693 Feedthrough 0.5 m
Description
Feedthrough, for plug connector, product family: IPD, connection type: Single wires, number of poles: 2+PE, M20, PIN, 450 V, 17.5 A, PA, black, coding: P, 2.5 mm², cable length: 0.5 m.
