Multi-pole connector with exposed coloured wires, including black, white, brown and blue, for electrical applications.

Multi-pole connector with exposed coloured wires, including black, white, brown and blue, for electrical applications.

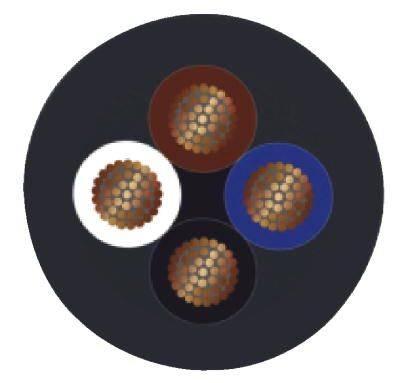

Four coloured cables, showing copper wires, form a pie chart. The colours are white, brown, blue and black.

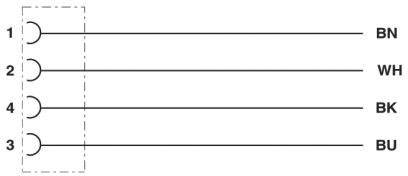

Wiring diagram with numbers and corresponding colour codes: 1 - BR (Brown), 2 - WH (White), 4 - BK (Black), 3 - BL (Blue).

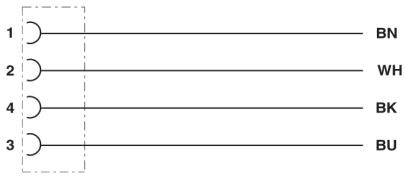

Diagram shows numbered lines 1 to 4. Numbers 1 and 4 lead to 'BN', 'BK'; 2 leads to 'WH'; 3 leads to 'BU'.

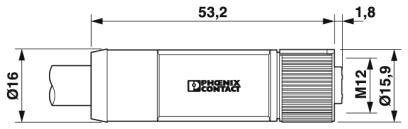

Phoenix Contact connector, side view with dimensions: length 53.2 mm, diameter 16 mm. M12 thread 15.9 mm.

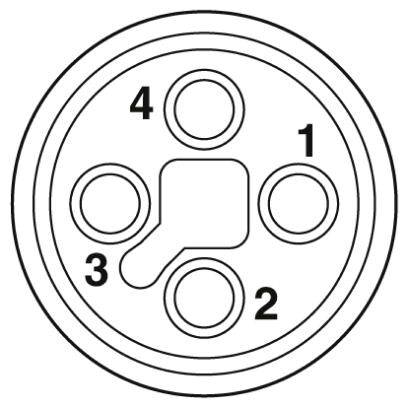

Diagram of a circular plug with four numbered contacts clockwise: 1, 2, 3, 4 and a central guide rail.

1/6

Image similar

Product type

Sensor/actuator cable

Connector type

Socket, straight

Connector standard

Sensor connector

Connection side A

Cable, open end

Connection side B

M12 socket, straight

Datasheet (PDF)

Phoenix Contact

Unavailable
