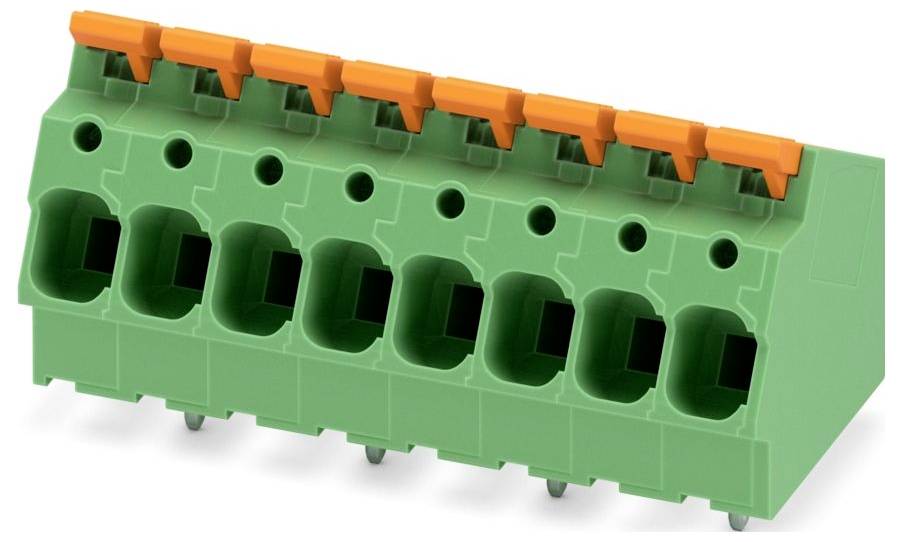

Phoenix Contact 1098181 PCB terminal 10 mm² Number of pins 8 Green 25 pc(s)
EAN:
Part number:
Item no:
Product type
PCB terminal
CS
7.5 mm
Pins per row
8
Number of pins
8
Connection
Push-in button
Datasheet (PDF)
Highlights & Details
PCB terminal
- Content 25 pc(s)
Technical specifications
- Suitable for single wire cross sections of 0.2-10 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves of 0.2-6 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.34-10 mm²
- Multiple wire cross-section that can be connected: 10-10 mm²
- Connection type conductor: Spring-loaded connector
- Type of connection PCB: Solder connection
- Number of electrical connections: 8
- Number of floors: 1
- Tape type: Cardboard (for SMD)
- Type of PCB mounting: Connection contact
- Mounting type: Soldering
- Dimensioning surge voltage: 8 kV
- Rated current In:41 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 2 mm
- Length of the pin 3.6 mm
- Grid dimension of the connections 7.5 mm
- Pollution level: 2
- Material of the connection surface: Tin
- Material of the insulating body: Other
- Over voltage category III
- Type
LPTA 6/ 8-7,5-ZB
- Product type
PCB terminal
- Features
+ actuator
- CS
7.5 mm
- No. of rows
1
- Pins per row
8
- Number of pins
8
- Connection
Push-in button
- Nominal current
41 A
- Cross section (flexible) (min.)
0.2 mm²
- Nominal current - rounded value
41 A
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (max.)
10 mm²
- Contact material
Tin
- Factory colour
Green
- Manufacturer part #
1098181
- Content
25 pc(s)
- Height
33.76 mm
- Case colour
Green
- Rated voltage
1000 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3563601 Phoenix Contact 1098181 PCB terminal 10 mm² Number of pins 8 Green 25 pc(s)
User & Safety Instructions
User & Safety Instructions 3563601 Phoenix Contact 1098181 PCB terminal 10 mm² Number of pins 8 Green 25 pc(s)
Description
Conductor board terminal, rated current: 41 A, rated voltage (III/2): 1000 V, nominal cross-section: 6 mm², number of potentials: 8, number of rows: 1, number of poles per row: 8, product family: LPTA 6/, spacing: 7.5 mm, connection type: Lever push-in connection, mounting: Shaft soldering, Connection direction of conductor/board: 30°, color: green, pin layout: zig-zag-pinning W, pin length [P]: 3.6 mm, packing type: packed in carton
