Name: Phoenix Contact 1106014 TTC-6P-4-24DC-PT-I Surge protection device 1 pc(s)
Brand: Phoenix Contact
SKU: 3563984

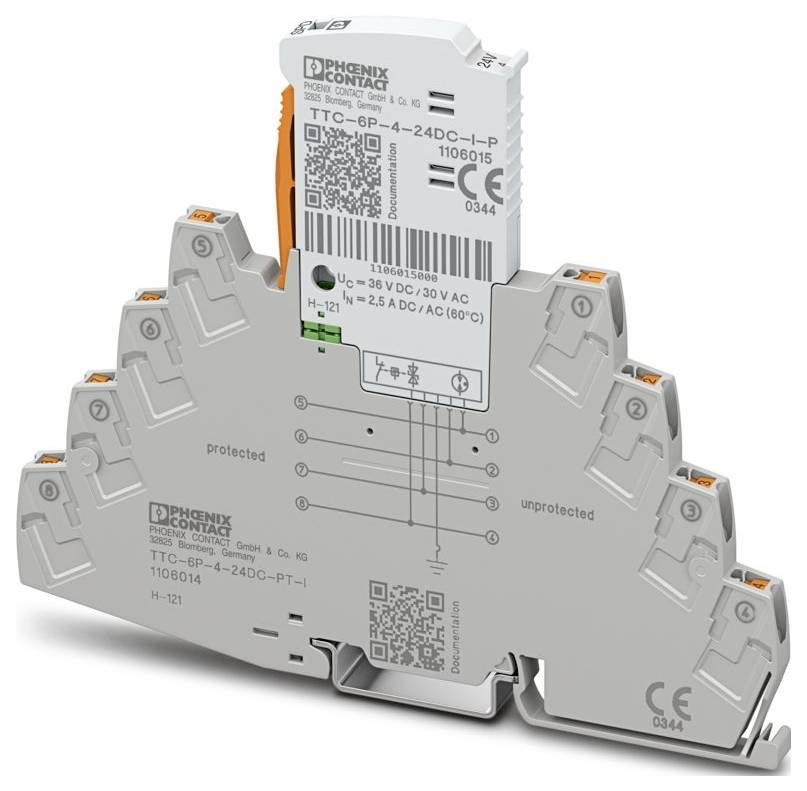

A grey electrical surge protection device with orange connectors and a white labeled module on top, from Phoenix Contact, model TTC-6P-4-24DC-P-T.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: TERMITRAB complete
IEC TEST CLASS C1;C2;C3;D1
Model: Two-part rail module can be plugged
Message Surge Protection Faulty: Optical
RATED VOLTAGE UN 24 V DC;24 V AC
Push-in connection
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 4 mm².
Wire cross-section AWG: 24 ... 12
Width 6.2 mm +0.1 mm
Height: 125 mm
Depth: 100 mm (including mounting rail 7.5 mm)
Flammability class according to UL 94 V-0
Material: housing: PBT
Mechanical Data: Mechanical Data
Open side wall: No.
Direction of action: Line-Line & Line-Earth Ground
Maximum continuous voltage UC: 36 V DC;30 V AC
Rated current 2.5 A (60 °C, for isolated systems)
Operating current IC at UC ≤ 5 µA
Earth current IPE ≤ 1 µA
Total leakage surge current ITtotal (8/20) µs 10 kA
Protection level Up (wire): ≤ 100 V (C1 - 0.7 kV / 350 A);≤ 100 V (C3 - 50 A);≤ 80 V (C3 - 25 A)
Protection level Up (wire-earth): ≤ 900 V (C1 - 1 kV / 500 A);≤ 900 V (C2 - 10 kV / 5 kA)
Capacity (wire-wire): Typ. 30 pF
Capacity (wire-earth): Typ. 30 pF
Resistance per path: 0.03 Ω
Required maximum backup fuse: 2.5 A (F)
C1 - 1 kV / 500 A; C2 - 500 kV / 5 kA; C3 - 100 A; D1 - 10 A
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -40 °C ... 85 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 6000 m (amsl)
Standards/regulations EN 61643-21
Note:2001 + A1:2009 + A2:2013
Mounting type: Mounting rail: TH 35 - 7.5 mm
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
Insulating material PBT
Permissible air humidity (operation): 5 % ... 95 %.
Nominal impulse surge current In (8/20) µs (wire-ground): 5 kA
Impulse leakage surge current Iimp (10/350) µs (wire-ground) 0.5 kA
Response time TA (wire-earth): ≤ 100 ns
Additional technical data: Additional technical data
Colour (plug): Light gray (RAL 7035)
Colour (base element): Grey (RAL 7042)
Max. Total surge current I total max. (8/20) µs 20 kA (1x)
EN 61643-21, EN 61643-21
Nominal suppression current In (8/20) µs (wire-wire) 350 A.
Response time TA (wire-wire): ≤ 1 ns
AE insertion loss, sym.: Typ. 0.3 dB (≤ 12 MHz / 150 Ω)
Cut-off frequency FG (3 dB), balanced IM 150 Ω system > 60 MHz
Surge current resistance (wire) C1 - 700 V / 350 A; C3 - 50 A
Conformity/Approvals: Conformity/approvals
UL, USA / Canada: Class I, div. 2, GROUPS A, B, C, D T4A
