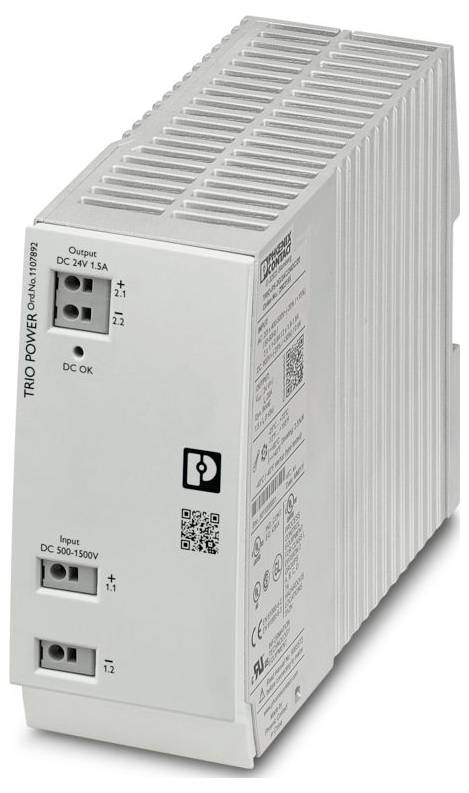

Phoenix Contact 1107892 DC/DC converter 24 V DC 1.5 A Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: TRIO Power
- Push-in connection
- Width 48 mm
- Height: 130 mm
- Colour: green
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C DERATING 2.5 %/K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 61000-6-4
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Vibration (operation): < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6);15 Hz ... 150 Hz, 2.3g, 90 min
- Stripped length: 10 mm
- Conductor cross-section flexible min.: 1 mm²
- Conductor cross-section flexible max.: 2.5 mm²
- Conductor cross-section rigid min.: 1 mm²
- Conductor cross-section rigid max. 4 mm²
- Mounting position: Horizontal mounting rail NS 35, EN 60715
- Frequency range: 0.15 MHz ... 80 MHz
- Protection class: II
- Rated input voltage range: 500 V DC ... 1500 V DC
- Input voltage range: 450 V DC ... 1650 V DC
- Wide-range input: No.
- Voltage strength max.: ≤ 1800 V DC 1 s
- Switch-on current impulse integral (I2t): Typ. 0.15 A2S
- Current consumption: Type 85 mA (450 V DC);typ. 30 mA (1500 V DC)
- Selection of suitable fuse for the input protection: 1 A (gPV)
- Efficiency: Type. 88 % (500 V DC);typ. 87 % (900 V DC);typ. 83 % (1500 V DC)
- Rated output voltage 24 V DC ±3 %
- Nominal output current (IN): 1.5 A.
- Short-circuit-proof: Yes
- Idle: Yes
- Regenerative resistance ≤ 35 V DC
- Protection against overvoltage at output (OVP): ≤ 30 V DC
- < Ripple: 40 mV SS (Ripple);< 50 mV Vss (Noise)
- Rise time: ≤ 30 ms (UOUT (10 % ... 90 %)
- Series switch option: No.
- NO-LOAD POWER MAXIMUM: < 1.1 W (500 V DC);< 1.4 W (900 V DC);< 2.4 W (1500 V DC)
- RATED LOAD POWER MAXIMUM: < 4.2 W (500 VDC);< 5.5 W (900 VDC);< 7.5 W (1500 VDC)
- Parallel switching capability: Yes, for redundancy and power increase
- Safety (secondary side): Electronic
- Input: 3 kV (test efficiency >4 - symmetric);4 kV (test efficiency 4 - asymmetric)
- Output:0.5 kV (test efficiency 2 - symmetric);1 kV (test efficiency 2 - asymmetric)
- LED signaling types
- Number of phases: 1
- Insulation voltage input/output: 4.2 kV DC (type test);2.6 kV DC (routine test)
- MTBF (IEC 61709, SN 29500): > 3300000 h (25 °C);> 1760000 h (40 °C);> 740000 h (60 °C)
- Mounting dimensions
- Mounting instructions: Modular: Horizontal 0 mm (≤ 40 °C) 10 mm (≤ 70 °C), vertical 50 mm
- Protective coating: No.
- Flammability class to UL 94 (housing / terminals): V0
- Housing material: Plastic
- Operating height: ≤ 4000 m (> 2000 m, derating: 10 %/1000 m)
- Max. ass. Humidity (operating): ≤ 95% (at 25°C, no condensation)
- Shock: 11 ms, 15 g, per direction of room (according to IEC 60068-2-27)
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Low Voltage Directive: Conformity to NSR Directive 2014/35/EU
- Line-guided interference emission: Line-guided interference emission
- Interference radiation: Interference radiation
- Discharge of static electricity: Discharge of static electricity
- Contact discharge 4 kV (test efficiency 2)
- 8 kV (test efficiency 3)
- Note: Criterion A
- Electromagnetic HF-field: Electromagnetic HF-field
- 3 V/m test field strength (test strength 1)
- Fast Transients (Burst): Fast Transients (Burst)
- Surge voltage load (SURGE): Surge current load (SURGE)
- Conducted interference: Conducted interference
- Voltage:10 V (testing efficiency 3)
- Voltage dips: Voltage dips
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- National mains voltage typical: 500 V DC;1500 V DC
- Voltage type of supply voltage: DC
- Selection of suitable fuse for the input protection: 1500 V DC
- DC-operation: DC-operation
- Derating: > 60 °C ... 70 °C (2.5 %/K)
- Control deviation: < 1 % (load change static 10 % ... 90< %); 3 % (load change dynamic 10 % ... 90< %, 10 Hz); 0.1 % (input voltage variation ±10 %)
- 36 W power output
- One-conductor/flexible clamping point with wire-end sleeve with plastic sleeve min.: 1 mm²
- Single-conductor/flexible clamping point with wire-end sleeve with plastic sleeve max.: 2.5 mm²
- One-conductor/clamping point flexible with wire-end sleeve without plastic sleeve min.: 1 mm²
- Single-conductor cable/clamping point flexible with wire-end sleeve without plastic sleeve max.: 2.5 mm²
- Wire cross section AWG min 18
- Conductor cross-section AWG max. 12
- Installation distance right / left 0 mm / 0 mm
- Installation distance above/below 50 mm / 50 mm
- Standard - electrical safety: EN 62109-1:2011
- Standard - safety low voltage IEC 62109-1:2011 (SELV)
- Standard - safe separation DIN VDE 0100-410
- UL APPROVALS UL 62109-1:2014;UL 1741
- Design of the casing: Polycarbonate
- Emitted interference: Interference
- IEC 61000-6-2:2005
- Signal output: LED-status display: Signal output: LED-status display
- Designation of signaling: DC OK
- Status indicator: LED "DC OK" green
- Input/output: Asymmetric
- Interference suppression voltage according to EN 55011 55011-3-2 (EN 55022) Class A Application area industry
- Radio interference radiation according to EN 55011: EN 55011 (EN 55022) Class A Industrial area
- DC OK: UOUT > 0.9 X UN (UN = 24 VDC)
- Note on status display: UOUT > 21.5 V: LED on
- Depth (rail mounting): 115 mm (device depth (rail mounting))
- IEC 62109-1: II.
- Product type
DC/DC converter
- Type
TRIO-PS-2G/1500DC/24DC/1.5
- Min. input voltage
450 V DC
- Input voltage (max.)
1650 V DC
- Output voltages
24 V DC
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Connection
Push-in spring-loaded terminal
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 115 x 48 x 130 mm
- Height
130 mm
- Length
115 mm
- Width
48 mm
- Content
1 pc(s)
- Depth
121 mm
IP20
- Recess height
130 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564296 Phoenix Contact 1107892 DC/DC converter 24 V DC 1.5 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3564296 Phoenix Contact 1107892 DC/DC converter 24 V DC 1.5 A Content 1 pc(s)
Description
Primary switching DC/DC converter TRIO Power with push-in connection for rail mounting, input: 1500 V DC, output: 24 V DC / 1.5 A
