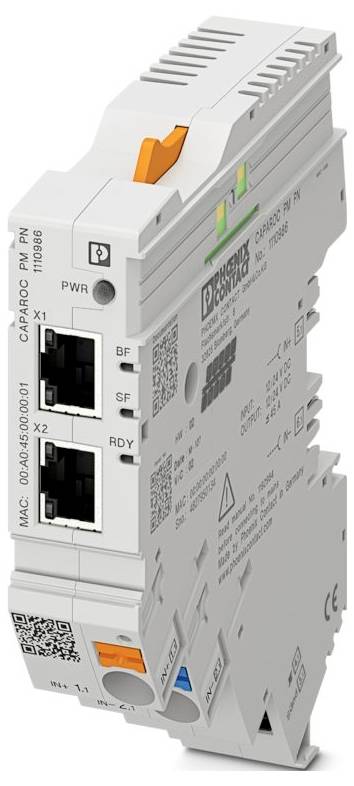

Phoenix Contact 1110986 CAPAROC PM PN Feeder module 1 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder module
Type
Plug-in module
Connection
Push-in spring-loaded terminal
IP rating
IP20
Length
111.3 mm
Datasheet (PDF)
Technical specifications
- Product family: CAPAROC
- Designed: Clip-on module
- Push-in connection
- Conductor cross-section rigid: 0.2 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 24.8 mm
- Height: 132.4 mm
- Depth: 111.3 mm (including mounting rail 7.5 mm)
- Colour: Light gray (RAL 7035)
- Flammability class according to UL 94 V-0
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -30 °C ... 50 °C
- Ambient temperature (storage/transport): -40 °C ... 70 °C
- Altitude: ≤ 4000 m (amsl)
- Standards/regulations EN 60068-2-27
- Note: Environmental influences - shocks
- Mounting type: Pluggable on bus bar CAPAROC CR…
- Insulation properties: Insulation properties
- Pollution level: 2
- Shock (Operation): 30g (11 ms duration, half-sine shock pulse, according to IEC 60068-2-27);25g (6 ms duration, half-sine shock pulse according to IEC 60068-2-27, continuous shock)
- Vibration (operation): 5g (10 Hz ... 150 Hz / 10 cycles / axis / X, Y, Z)
- Operating voltage: 10 V DC ... 30 V DC
- Stripped length: 8 mm
- General: General
- Voltage resistance 35 V DC (load circuit)
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.2 mm² ... 0.75 mm²
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.2 mm² ... 1.5 mm².
- Identification: ISA S71.04.2013 G3 Harsh Group A
- MATERIAL PA 6;PA 6;PA 6;PC
- Power loss: Type 2 W (idle at 24 V);< 3.6 W (at 40 A)
- RATED VOLTAGE 12 V DC;24 V DC
- Protection class III
- Efficiency level > 99 %
- Regenerative resistance: Max. 35 V DC
- MTBF (IEC 61709, SN 29500): 3985174.15 h (at 25 °C with 21 % load);1760834.9 h (at 40 °C with 34.25 % load);601892.76 h (at 35 °C with 100 % load)
- Pollutant test: Pollutant gas test
- Supported protocols: PROFINET
- UL-approval: UL-approval
- Specification: PROFINET-IO RT/IRT, spec. 2.x
- System communication: System communication
- Dimensioning surge voltage: 0.5 kV
- Number of slots: 4
- Redundancy: MRP (Media Redundancy Protocol)
- Load circuit: Load circuit
- Trigger type E (electronic)
- Quiescent current I0: Type 85 mA (when idling at 24 V)
- Temperature derating: 45 A (total current at 35 °C);40 A (total current at 40 °C);15 A (total current at 50 °C)
- Voltage drop 0.048 V (at 40 A)
- Low-voltage cut-off: ≥ 9.2 V DC (active); ≤ 10.2 V DC (inactive)
- Moisture testing 96 h, 95 % RH, 40 °C.
- Rated current IN:45 A DC (total current input)
- Overvoltage cut-off: ≥ 30.5 V DC (active);≤ 29.5 V DC (inactive)
- Main circuit IN+: Main circuit IN+
- Main circuit IN-: Main circuit IN-
- Device function: PROFINET-IO device
- Maximum system configuration: ≤ 16 (stackable CAPAROC modules)
- Connection X1 LED green: Lights up (connected)
- Port X1 LED yellow: Lit (transmission)
- Port X2 LED green: Lit (connected)
- Port X2 LED yellow: Lit (transmission)
- Power (PWR) green LED: Lit (supply voltage)
- Power (PWR) LED red: Lit (supply voltage outside nominal range)
- PROFINET: PROFINET
- Conformance class C
- PROFINET Busfault (BF) LED red: Lit (no connection status available);flashes (connection status OK, no communication connection to PROFINET controller);off (active communication connection to PROFINET controller)
- PROFINET group error (SF) LED red: Lit (PROFINET error);off (no PROFINET error)
- PROFINET Ready (RDY) LED green: Lit (proper operation);flashes (waiting for application start-up);off (no proper operation)
- Product type
Feeder module
- Type
Plug-in module
- Connection
Push-in spring-loaded terminal
IP20
- Length
111.3 mm
- Width
24.8 mm
- Height
132.4 mm
- Compatible with (details)
Power rails CAPAROC CR…
- Content
1 pc(s)
- Type
CAPAROC PM PN
- Dim
(L x W x H) 111.3 x 24.8 x 132.4 mm
- Depth
111.3 mm
- Operating voltage
30 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564305 Phoenix Contact 1110986 CAPAROC PM PN Feeder module 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3564305 Phoenix Contact 1110986 CAPAROC PM PN Feeder module 1 pc(s)
Description
Feed module E (electronic), type of installation: Pluggable on bus bar CAPAROC CR…, rated current: 45 A.
