Image similar
Phoenix Contact 1116982 MM-EML (EX14)R C1 WH/BK Label 12 x 8000 mm No. of labels: 1
EAN:
Part number:
Item no:
Product type
Label
Writing area length
12 mm
Writing area width
8000 mm
Material
Polyester
No. of labels
1
Datasheet (PDF)
Technical specifications
- Height: 14 mm
- Depth: 0.06 mm
- Colour: Multi-color (RAL -);white (RAL 9010);black (RAL 9005)
- Ambient conditions: Environmental conditions
- Ambient temperature (operation): -40 °C ... 150 °C
- Mounting type: Glue
- Ambient temperature (installation) > -4 °C.
- Text field: Text field
- Text field width 8000 mm
- Text field height 12 mm
- Material: Polyester;
- Material base element: Polyester
- IEC 60068-2-11 (VDE 0468-2-11):2022-10
- Result: Test passed
- Procedure: Method B.
- Recommended ambient temperature (storage/transport): 22°C.
- Recommended humidity (storage/transport): 50% (dry and dark storage in the original packaging is recommended)
- Shelf life: 24 months
- Ingredients: Free of silicone, halogen and cadmium
- Test for substances interfering with paint wetting: Test for substances interfering with paint wetting
- Test for paint wetting interference (LABS conformity): VDMA 24364:2018-05
- UV resistance: UV resistance
- Test duration 168 h
- Testing in the condensation changing climate with atmosphere containing sulfur dioxide: Testing in the condensation changing climate with atmosphere containing sulfur dioxide
- Cycles: 2
- Salt mist test: Salt mist test
- Temperature resistance: Temperature resistance
- Resistance to chemicals, oils and fuels: Resistance to chemicals, oils and fuels
- Sodium hydroxide 0.1 mol/l
- [CAS No. 1310-73-2]: Test passed
- Salt water (350 g/l)
- [CAS No. - ]: Test passed
- Ethanol (99 %)
- [CAS No. 64-17-5]: Test passed
- Diesel-fuelled cars
- [CAS No. 68476-34-6]: Test passed
- IRM 901: Test passed
- IRM 902: Test passed
- IRM 903: Test passed
- Acetone (99 %)
- [CAS No. 67-64-1]: Test passed
- Methylethylketone (MEK)
- [CAS No. 78-93-3]: Test passed
- WIPING RESISTANCE DIN EN 61010-1 (VDE 0411-1)
- Labelling: Labelling
- Identification technology: Thermal transfer
- Film thickness 50 µm
- Scratch test for determining scratch resistance: Scratch test for determining scratch resistance
- Requirement ≥ 5 N
- Tesafilm Test: Tesafilm Test
- Rating 150 °C (180 °C): Passed test
- Drums are smear-proof and resistant to marking
- Isopropanol
- [CAS No. 67-63-0]: Test passed
- N-Hexane
- [CAS No. 110-54-3]: Test passed
- Water + petroleum ether
- [CAS No. 64742-82-1]: Test passed
- Weather resistance: Weather resistance
- Roll length 8.00 m
- Free weathering: Free weather
- Product type
Label
- Writing area length
12 mm
- Writing area width
8000 mm
- No. of labels
1
- Factory colour
White/black
- Material
Polyester
- Height
14 mm
- Writing area
12 x 8000 mm
- Manufacturer part #
1116982
- Content
1 pc(s)
- Type
MM-EML (EX14)R C1 WH/BK
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3564451 Phoenix Contact 1116982 MM-EML (EX14)R C1 WH/BK Label 12 x 8000 mm No. of labels: 1
User & Safety Instructions
User & Safety Instructions 3564451 Phoenix Contact 1116982 MM-EML (EX14)R C1 WH/BK Label 12 x 8000 mm No. of labels: 1
Description

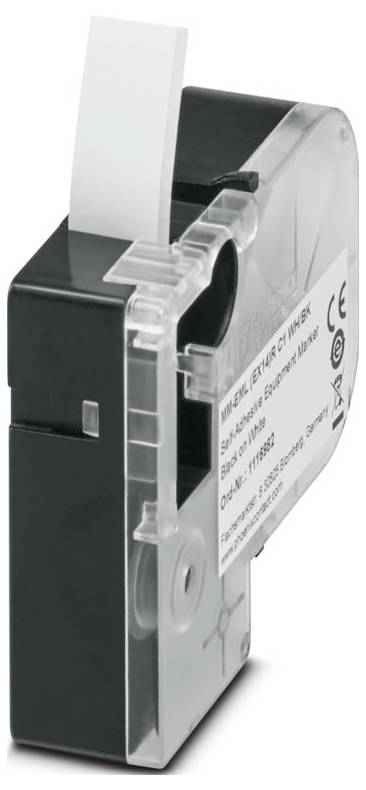

Label, roll, white/black, unlabeled, can be labeled with: THERMOMARK GO, THERMOMARK GO.K, THERMOFOX, installation method: glue, text field height: 12 mm, text field width: 8000 mm
