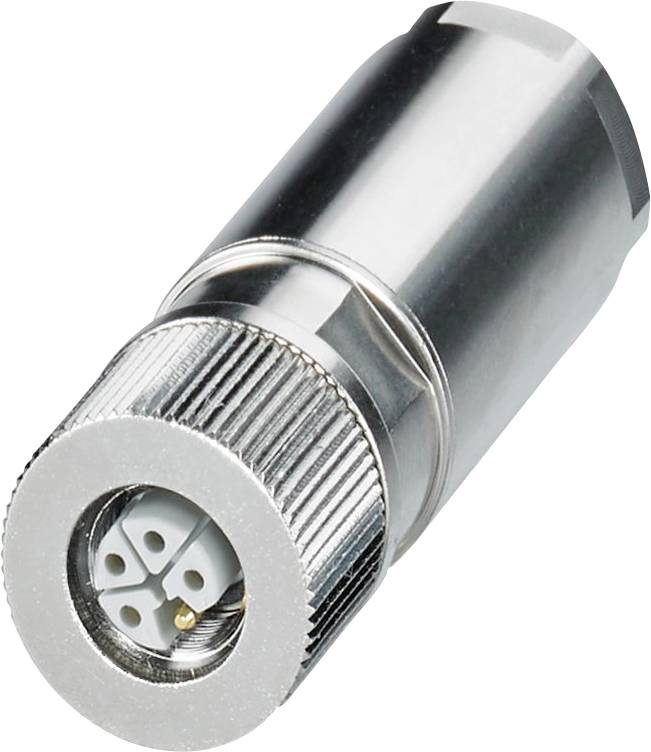

Phoenix Contact 1151390 Connector Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Total no. of pins
5
Connection
Push-lock spring terminal
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
Technical specifications
- Type
SACC-M12FSL-4FEPL-CL
- Product type
Connector
- Total no. of pins
5
- Connection
Push-lock spring terminal
- Content
1 pc(s)
- Max. temperature
85 °C
- Nominal current
16 A
- Min. temperature
-40 °C
- Nominal current - rounded value
16 A
- Leading contact (PE)
No
- Contact material
Gold
- Cable Ø (max.)
13 mm
- Cable Ø up to
8 mm
- Case material
Brass
- Manufacturer part #
1151390
- Cable Ø range
8 - 13 mm
- Number of pins
5
- (Ø)
23 mm
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Cross-section range
1.5 - 2.5 mm²
IP65 (when installed)
- UKCA
yes
