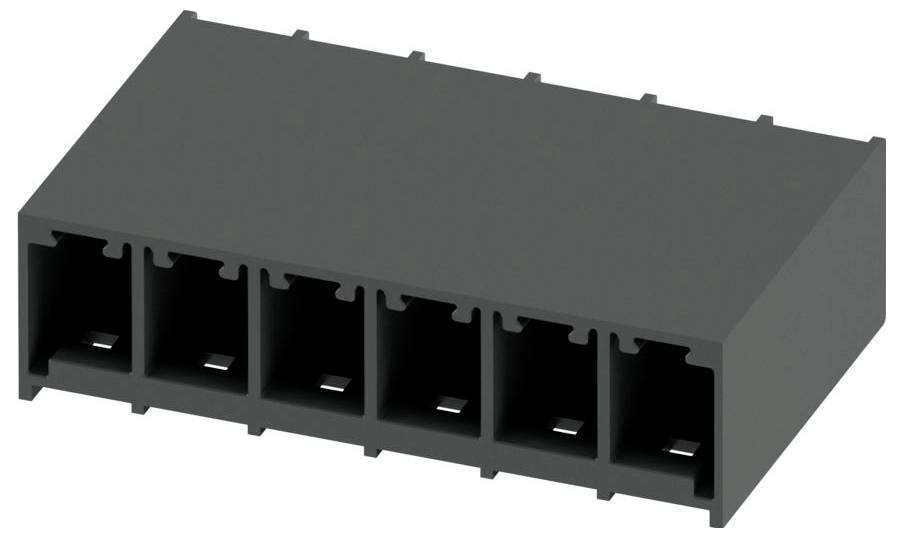

Image similar
Phoenix Contact 1190494 PCB pin header Total number of pins 6 No. of rows 1 50 pc(s) Carton
EAN:
Part number:
Item no:
Product type
PCB pin header
Total no. of pins
6
Connector type
Pin
CS
7.62 mm
Content
50 pc(s)
Datasheet (PDF)
Highlights & Details
PCB terminal strip
- Total number of pins 6
- No. of rows 1
- Content 50 pc(s)
Technical specifications
- Number of plug contact rows: 1
- Tape type: Cardboard (for SMD)
- Design of the electrical connection: Other
- Mounting method: Other
- Dimensioning surge voltage: 6 kV
- Rated current In:41 A.
- Operating temperature 40 to 105 °C.
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.7 mm
- Pin contact type
- Length of the pin 2.6 mm
- Grid dimension of the connections 7.62 mm
- Contact spacing 7.62 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Other
- Over voltage category III
- Packaging type
Carton
- Product type
PCB pin header
- Total no. of pins
6
- Connector type
Pin
- Total number of pins
6
- No. of rows
1
- CS
7.62 mm
- Connection
Soldering
- Case material
PA
- Manufacturer part #
1190494
- Content
50 pc(s)
- Max. temperature
105 °C
- Min. temperature
-40 °C
- Type
PC 6/ 6-G-7,62 P26THR
- Connector contact surface
Tin plated
- Number of pins
6
- Case colour
Black
- Rated voltage
630 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3565885 Phoenix Contact 1190494 PCB pin header Total number of pins 6 No. of rows 1 50 pc(s) Carton
User & Safety Instructions
User & Safety Instructions 3565885 Phoenix Contact 1190494 PCB pin header Total number of pins 6 No. of rows 1 50 pc(s) Carton
Description
PCB baseboard, rated cross-section: 6 3 mm², Colour: Black, rated current: 41 A, rated voltage (III/2): 630 V, contact surface: Sn, contact type: Pen, number of rows: 7.62, number of rows: 2.6, product family: PC 6/.-G-THR, pitch: 1 mm, mounting: THR-soldering / wave soldering, pin layout: Linear pinning, pin length [P]: 6 mm, number of pins: COMBICON PC 6, plug face alignment: standard, locking: without, mounting type: without, packing type: packed in a box
