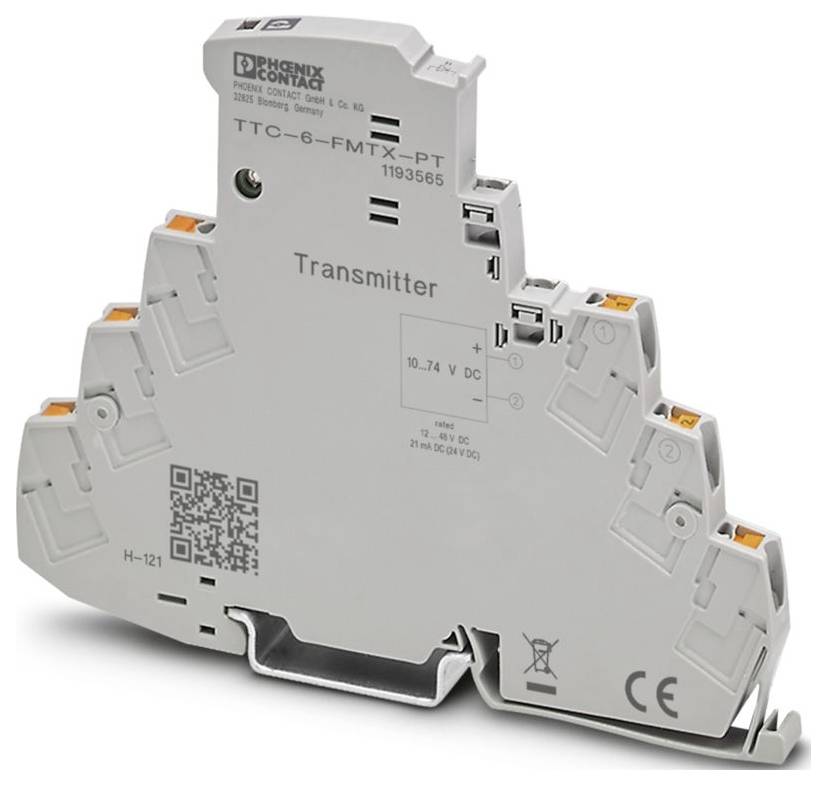

Name: Phoenix Contact 1193565 TTC-6-FMTX-PT TeleCom transmitter Piece 1 pc(s)
Brand: Phoenix Contact
SKU: 3566110

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Technical specifications

Product family: TERMITRAB complete
Designed: Single piece mounting rail module
Message Surge Protection Faulty: None
Push-in connection
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 4 mm².
Wire cross-section AWG: 24 ... 12
Width 6.2 mm +0.1 mm
Height: 1.8" (105.8 mm)
Depth: 83.5 mm (including mounting rail 7.5 mm)
Colour: Grey (RAL 7042)
Flammability class according to UL 94 V-0
Material: housing: PBT
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -40 °C ... 70 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations: GB/T 3836.3
Note: 2021
Mounting type: Mounting rail: TH 35 - 7.5 mm
Insulation properties: Insulation properties
Over-voltage category OV3 (ACC. To DIN EN 50124-1)
Pollution level: PD2 (ACC. To DIN EN 50124-1)
Insulating material PBT
Permissible air humidity (operation): 5 % ... 95 %.
Operating voltage: 12 V DC ... 48 V DC (with derating);24 V AC ... 48 V AC (with derating)
Operating current: ≤ 7 mA DC (24 V);max. 15 mA DC (10 V)
Rated voltage: 24 V AC ... 48 V AC (50/60 Hz, with derating);12 V DC ... 48 V DC (with derating)
Supply: Status display / Remote message: Supply: Status display / Remote message
Number of connectable surge protection modules: 50 (TTC-6);30 (CLT-10)
Conformity/Approvals: Conformity/approvals
UL, USA / Canada: Class I, div. 2, GROUPS A, B, C, D T4
Nominal current IN: ≤ 12 mA (Rx+Tx @ 24 V)
