Name: Phoenix Contact 1199369 VAL-US-277/40/3+0-FM Surge protection device 1 pc(s)
Brand: Phoenix Contact
SKU: 3566091

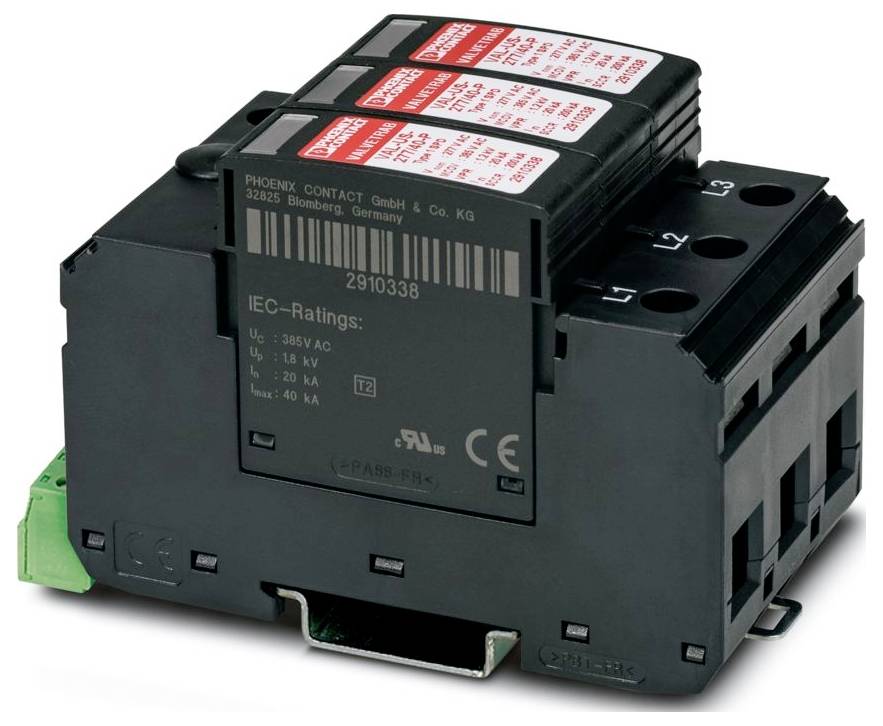

'Phoenix Contact' electrical component showing IEC ratings for different current capacities. Black with labels and connection ports.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: VALVETRAB US
IEC TEST CLASS II;T2
Model: Two-part rail module can be plugged
Number of poles: 3
Message Surge protection defective: Optical, telecommunication contact
NOMINAL VOLTAGE UN 277/480 V AC (TN-C)
Display / distance message: Display / remote message
Switching function: Changer
Connection type: Plug/screw connection via COMBICON
Screw thread M2
Tightening torque 30 lbf-in.
Conductor cross-section flexible: 0.14 mm² ... 1.5 mm².
Conductor cross-section rigid: 0.14 mm² ... 1.5 mm².
Wire cross-section AWG: 14 ... 2
Width 53.4 mm
Height: 98.7 mm
Depth: 65.7 mm
Division unit 3 TE
Colour: Black (RAL 9005)
Flammability class according to UL 94 V-0
Material housing PA 6.6;PBT
Mechanical Data: Mechanical Data
Open side wall: No.
Direction of action: 3L-GND
Earth current IPE ≤ 450 µA
Nominal impulse surge current In (8/20) µs: 20 kA
Ambient conditions: Environmental conditions
Protection type IP20 (only when all clamping points are used)
Ambient temperature (operation): -40 °C ... 80 °C
Ambient temperature (storage/transport): -40 °C ... 80 °C
Altitude: ≤ 2000 m (amsl)
Standards/regulations EN 61643-11
Note: 2012
Mounting type: Rail: 35 mm
EN type T2
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
Nominal frequency FN 50 Hz (60 Hz)
CTI value of material: 600
PA 6.6/PBT insulation
Material group: I
PROTECTION PATHS L-L;L-G
Maximum Surge current Imax (8/20) µs 40 kA
Protection level Up: ≤ 1.8 kV
Residual voltage Ures: ≤ 1.8 kV (in);≤ 1.7 kV (at 10 kA);≤ 1.5 kV (at 5 kA);≤ 1.3 kV (at 3 kA)
TOV behavior at UT: 480 V AC (5 s / resistance mode);530 V AC (120 min / safe failure mode)
Permissible air humidity (operation): 5 % ... 95 %.
Shock (operation): 25g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
UL specifications: UL specifications
Power distribution system: Wye
Nominal frequency 50/60 Hz
SPD type 1
Naming of connection: Remote fault signaling contact
Operating voltage: 125 V/AC
Operating current: 5 mA AC ... 750 mA AC/1 A DC
Stripped length: 7 mm
Remote defect signaling contact: Defect signaling contact
Short-circuit resistance ISCCR 25 kA
Maximum fusing for stub cable wiring: 125 A (gG)
Maximum continuous voltage MCOV (L-G) 385 V AC
Nom. Voltage: 277/480 V AC (3 phase Wye)
UL Display / Telecontrol: UL Display / remote indication
OPERATING CURRENT AC 1 A AC
UL connection data: UL connection data
Maximum continuous voltage MCOV (L-L) 750 V AC
Air and creepage distances: Air and creepage distances
Short circuit resistance (SCCR) 200 kA
NOMINAL VOLTAGE PROTECTION VPR (L-L) 2500 V
NOMINAL VOLTAGE PROTECTION VPR (L-G) 1500 V
Nominal leakage surge current In:20 kA
Maximum continuous voltage UC (L-PEN) 385 V AC
UL-Type: Type 1
Maximum surge current per phase: 40 kA
