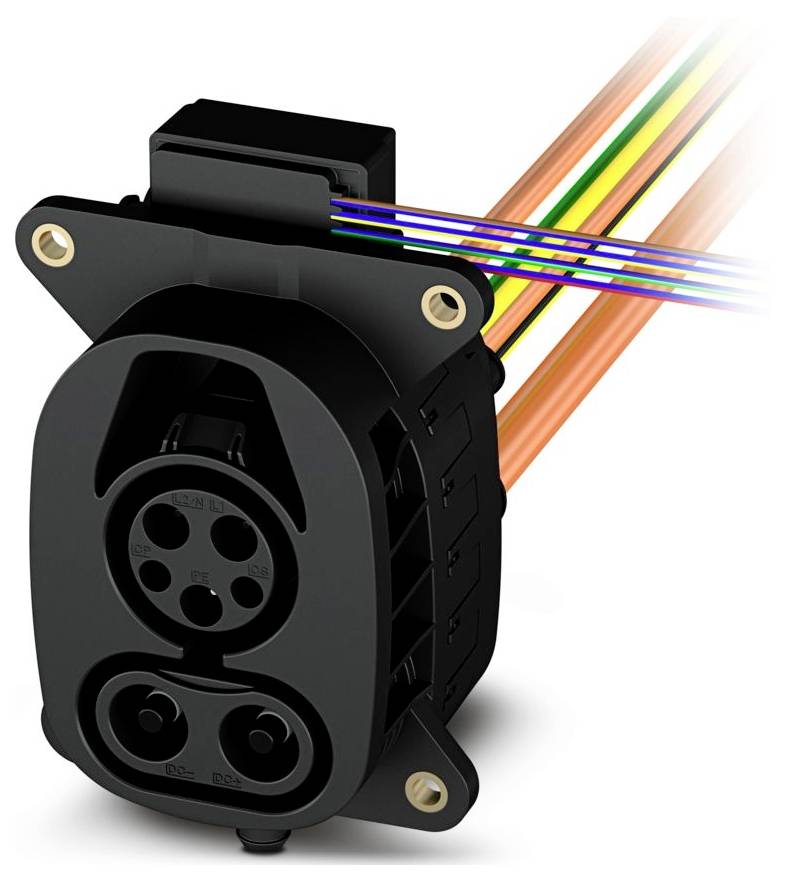

Phoenix Contact 1211595 eMobility charging port Type 1 200 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Number of communication contacts: 2
- LED integrated: No.
- Length of the fixed line: 2 m.
- Nominal current max. 200 A
- With access lock: Yes
- Current type DC
- Product type
eMobility charging port
- Charger connectors
Type 1
- Charging mode
Mode 4
- Cable length
2 m
- Nominal voltage
1000 V
- Nominal current
200 A
- Nominal current - rounded value
200 A
- Length
12.28 cm
- Width
10.8 cm
- Height
15.12 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3566434 Phoenix Contact 1211595 eMobility charging port Type 1 200 A
User & Safety Instructions
User & Safety Instructions 3566434 Phoenix Contact 1211595 eMobility charging port Type 1 200 A
Description
CHARX connect universal, DC CCS type 1, vehicle charging socket, 200 A permanent, 1000 V DC, Single wires, length: 2 m, locking actuator: 12 V, 4-pin, front and rear wall mounting, M6, enclosure: black, DC charging, IEC 62196-2, IEC 62196-3, DC contacts are supplied with a protective cap.
