Phoenix Contact 1252696 Power Supply Power Supply 1 pc(s)
Product type
Power Supply
Dim
(W x H x D) 68 x 135 x 132 mm
Content
1 pc(s)
Width
68 mm
Height
135 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Output voltage can be set: Yes
- Output voltage controlled: Yes
- Rated supply voltage AC 50 Hz: 85-264 V
- Rated supply voltage AC 60 Hz: 85-264 V
- Rated supply voltage DC 90-264 V
- Direct mounting possible: No.
- Suitable for security functions: Yes
- Short-circuit-proof: Yes
- Output: 240 W
- Max. Output current 1 15 A
- Rated output voltage 1: 24 V
- Rated output current 1: 10 A.
- Performance level according to EN ISO 13849-1: Without
- SIL according to IEC 61508: Without
- Voltage type of supply voltage: AC
- Stabilised: Yes
- Mounting rail mounting possible: Yes
- Product type
Power Supply
- Dim
(W x H x D) 68 x 135 x 132 mm
- Content
1 pc(s)
- Width
68 mm
- Height
135 mm
- Depth
132 mm
IP20
- Recess height
135 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452848 Phoenix Contact 1252696 Power Supply Power Supply 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3452848 Phoenix Contact 1252696 Power Supply Power Supply 1 pc(s)
Description

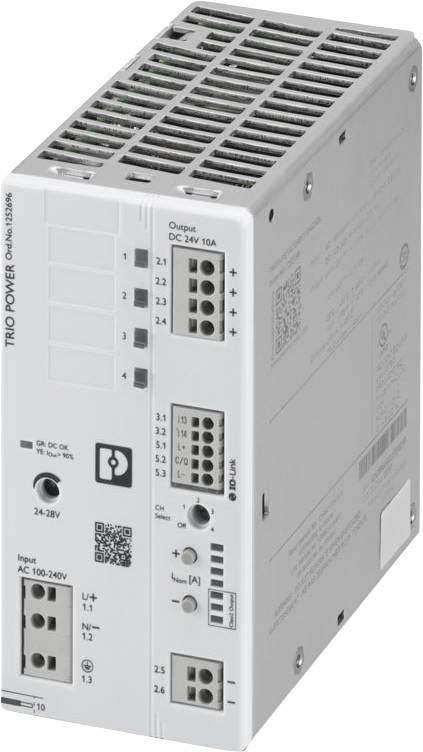

Primary-switched power supply, TRIO Power, push-in connection, 4-channel electronic device protection switch, IO-Link, Rail mounting, input: 1-phase, output: 24 V DC / 10 A, adjustable from 24 V DC ... 28 V DC
