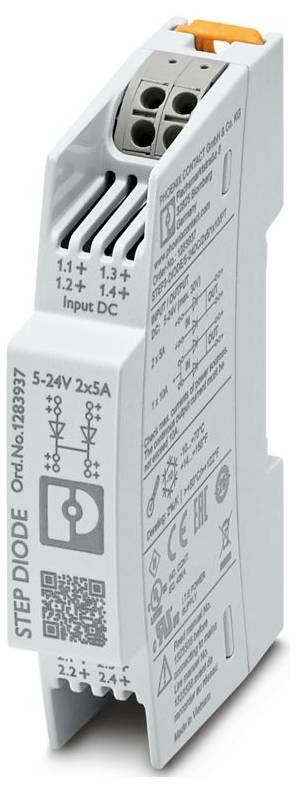

Phoenix Contact 1283937 Redundancy module 10 A No. of outputs: 2 x
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: STEP DIODE
- Push-in connection
- Width: 18 mm
- Height: 90 mm
- Depth: 61 mm
- 1 HP (DIN 43880) division unit
- Material: housing: PC
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -10 °C ... 70 °C (DERATING: > 50 °C | 2 %/K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 61000-4-5
- Note: T4 (-10 °C ... +70 °C, > 50 °C, DERATING 2 %/K)
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Pollution level: 2
- Shock (operating): 18 ms, 30 g, per direction of room (IEC 60068-2-27)
- Vibration (operation): < 15 Hz, amplitude ±2.5 mm (IEC 60068-2-6);15 Hz ... 150 Hz, 2.3g, 90 min
- Stripping length: 10 mm (rigid / flexible / wire-end sleeve without plastic sleeve);13 mm (wire-end sleeve with plastic sleeve)
- Mounting position: Horizontal mounting rail NS 35, EN 60715
- Frequency range: 150 kHz ... 80 MHz
- UL/C-UL Listed ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
- Protection class III
- Rated input voltage range: 5 V DC ... 24 V DC
- Input voltage range: 4.5 V DC ... 30 V DC
- Nominal output voltage UIN - 0.5 V
- Rated output current (IN): 2x 5 A; 1x 10 A
- Input: 1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
- Wire connection: Conductor connection
- rigid: 0.2 mm² ... 2.5 mm².
- flexible: 0.2 mm² ... 2.5 mm².
- Flexible with wire-end sleeve without plastic sleeve: 0.5 mm² ... 1.5 mm²;1 mm² (recommended)
- Flexible with wire-end sleeve with plastic sleeve: 0.2 mm² ... 1 mm²;1 mm² (recommended)
- Output:1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
- Insulation voltage input/output 550 V AC
- MTBF (IEC 61709, SN 29500): > 29675000 h (25 °C);> 18693000 h (40 °C);> 13996000 h (50 °C)
- Article dimensions: Article dimensions
- Mounting dimensions
- Mounting instructions: Modular: Horizontal 0 mm, vertical 30 mm
- Flammability class to UL 94 (housing / terminals): V0
- Case material: metal
- Operating height: ≤ 5000 m (> 2000 m, derating: 10 %/1000 m)
- Max. ass. Humidity (operating): ≤ 95% (at 25°C, no condensation)
- Standard name: Protective extra-low voltage
- Low voltage: Protective extra-low voltage
- UL
- Shipbuilding: Shipbuilding
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Low Voltage Directive: Conformity to NSR Directive 2014/35/EU
- Note: Criterion A
- Fast Transients (Burst): Fast Transients (Burst)
- Surge voltage load (SURGE): Surge current load (SURGE)
- Conducted interference: Conducted interference
- Input/output/signal: Asymmetrical
- Voltage:10 V (testing efficiency 3)
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- AWG: 24 ... 14 (Cu)
- Voltage type of supply voltage: DC
- Derating: 50 °C ... 70 °C (2 % / K)
- Installation distance right / left 0 mm / 0 mm
- Installation distance above/below 30 mm / 30 mm
- IEC 61000-6-2:2019
- Electrical Safety: Electrical Safety
- Insulation voltage input, output/case 550 V AC
- Depth (device depth (rail mounting): 55 mm (device depth (rail mounting))
- Material: Bolt: Polyamide
- Rated input current (IN): 1x 10 A;2x 5 A
- Reverse polarity protection yes, < 60 VDC
- Input/output voltage drop: Typ. 0.5 V (IOUT = 5 A)
- Transient overvoltage protection: Trans-diode
- LED: Yes
- Dry heat (IEC 60068-2-2) 70 °C (16 h)
- Cyclic humidity heat (IEC 60068-2-30):55°C (95 %, 2 x 23 h)
- Cold (IEC 60068-2-1) -25 °C (16 h)
- Type
Carry rail mounting
- Product type
Redundancy module
- Min. input voltage
4.5 V DC
- Input voltage (max.)
30 V DC
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- No. of outputs
2 x
- Connection
Push-in spring-loaded terminal
- Dim
(L x W x H) 61 x 18 x 90 mm
- Output type (power supply units)
Fixed voltage
- Manufacturer part #
1283937
- Width
18 mm
- Height
90 mm
- Length
61 mm
- Max. temperature
70 °C
- Min. temperature
-10 °C
- Type
STEP3-DIODE/5-24DC/2X5/1X10/PT
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3568236 Phoenix Contact 1283937 Redundancy module 10 A No. of outputs: 2 x
User & Safety Instructions
User & Safety Instructions 3568236 Phoenix Contact 1283937 Redundancy module 10 A No. of outputs: 2 x
Description
Redundancy module STEP DIODE, mounting rail, 5 V DC ... 24 V DC, 1x 10 a, 2x 5 a
