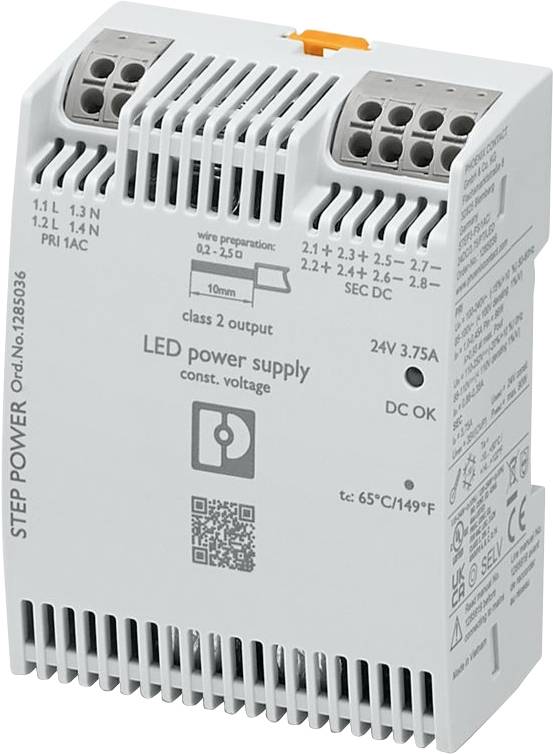

Phoenix Contact 1285036 Power Supply Power Supply 1 pc(s)
Product type
Power Supply
Dim
(W x H x D) 72 x 90 x 43 mm
Content
1 pc(s)
Width
72 mm
Height
90 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Output voltage can be set: No.
- Output voltage controlled: Yes
- Rated supply voltage AC 50 Hz: 85-264 V
- Rated supply voltage AC 60 Hz: 85-264 V
- Rated supply voltage DC 88-275 V
- Direct mounting possible: Yes
- Suitable for serial mounting: Yes
- Suitable for security functions: Yes
- Short-circuit-proof: Yes
- Output: 90 W
- Max. Output current 1 3.75 A
- Rated output voltage 1: 24 V
- Rated output current 1: 3.75 A.
- Performance level according to EN ISO 13849-1: Without
- SIL according to IEC 61508: Without
- Voltage type of supply voltage: AC/DC
- Stabilised: Yes
- Mounting rail mounting possible: Yes
- Product type
Power Supply
- Dim
(W x H x D) 72 x 90 x 43 mm
- Content
1 pc(s)
- Width
72 mm
- Height
90 mm
- Depth
43 mm
IP20
- Recess height
90 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452853 Phoenix Contact 1285036 Power Supply Power Supply 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3452853 Phoenix Contact 1285036 Power Supply Power Supply 1 pc(s)
Description
Primary clocked LED-power supply, STEP Power, push-in connection, carry rails and direct mounting, input: 1-phase, EXIT 24 V DC/3.75 MA
