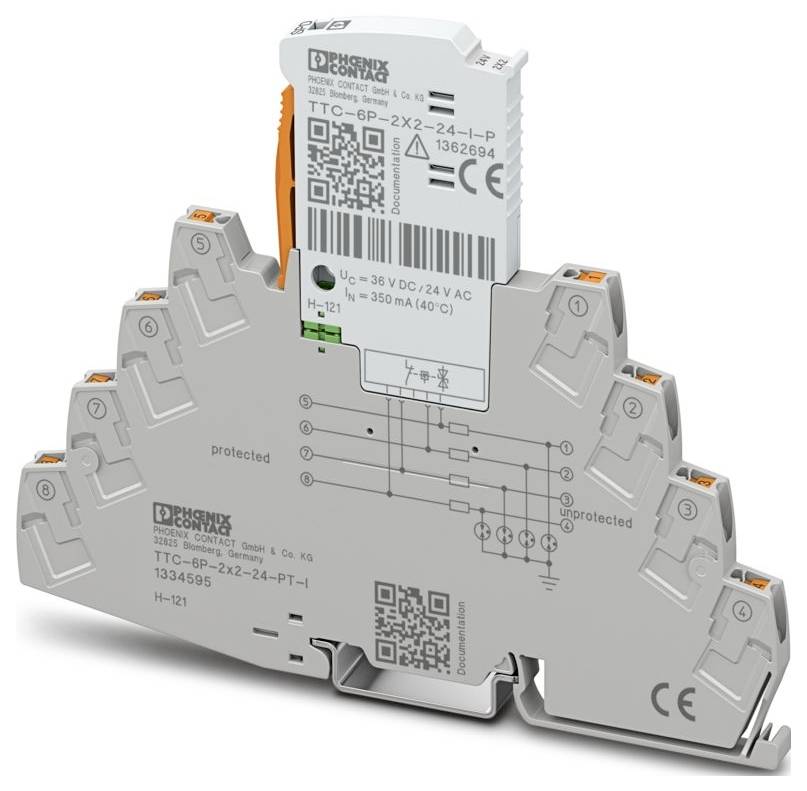

Name: Phoenix Contact 1334595 TTC-6P-2X2-24-PT-I Surge protection device 1 pc(s)
Brand: Phoenix Contact
SKU: 3587919

'Phoenix Contact surge protection device, DIN rail mountable, model TTC-6P-2x2-24-PT, for 24V DC systems. Compact grey module.'

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: TERMITRAB complete
IEC TEST CLASS C1;C2;C3;D1
Model: Two-part rail module can be plugged
Message Surge Protection Faulty: Optical
RATED VOLTAGE UN 24 V DC;24 V AC
Push-in connection
Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
Conductor cross-section rigid: 0.2 mm² ... 4 mm².
Wire cross-section AWG: 24 ... 12
Width 6.2 mm +0.1 mm
Height: 125 mm
Depth: 100 mm (including mounting rail 7.5 mm)
Flammability class according to UL 94 V-0
Material: housing: PBT
Mechanical Data: Mechanical Data
Open side wall: No.
Direction of action: Line-Line & Line-Earth Ground
Maximum continuous voltage UC: 36 V DC;26 V AC
Rated current 300 mA (40 °C)
Operating current IC at UC ≤ 5 µA
Earth current IPE ≤ 5 µA
Total leakage surge current ITtotal (8/20) µs 15 kA
Protection level Up (wire): ≤ 80 V (C1 - 1 kV / 500 A);≤ 160 V (C2 - 10 kV / 5 kA);≤ 55 V (C3 - 25 A)
Protection level Up (wire-earth): ≤ 950 V (C1 - 1 kV / 500 A);≤ 850 V (C2 - 10 kV / 5 kA);≤ 700 V (C3 - 25 A)
Capacity (wire-wire): Typ. 2 nF
Resistance per path: 3.3 Ω ±20 %
Required maximum backup fuse: 315 mA (FF)
C1 - 1 kV / 500 A; C2 - 1 kV / 5 kA; C3 - 100 A; D1 - 10 kA
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -40 °C ... 85 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations EN 61643-21
Note:2001 + A1:2009 + A2:2013
Mounting type: Mounting rail: TH 35 - 7.5 mm
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
Insulating material PBT
Permissible air humidity (operation): 5 % ... 95 %.
Nominal impulse surge current In (8/20) µs (wire-ground): 8 kA
Impulse leakage surge current Iimp (10/350) µs (wire-ground) 1 kA
Response time TA (wire-earth): ≤ 100 ns
Additional technical data: Additional technical data
Colour (plug): Light gray (RAL 7035)
Colour (base element): Grey (RAL 7042)
Impulse reset time (wire-earth): ≤ 25 ms
Max. Total discharge surge current I total max. (8/20) µs: 20 kA
Response time TA (wire-wire): ≤ 1 ns
AE insertion loss, sym.: Typ. 0.3 dB (≤ 200 kHz / 150 Ω)
Cut-off frequency FG (3 dB), balanced 150 Ω system: > 900 kHz
Surge current (core) C1 - 1 kV / 500 A; C2 - 10 kV / 5 kA; C3 - 100 A
Output voltage limitation at 1 kV/µs (wire-wire): ≤ 50 V.
