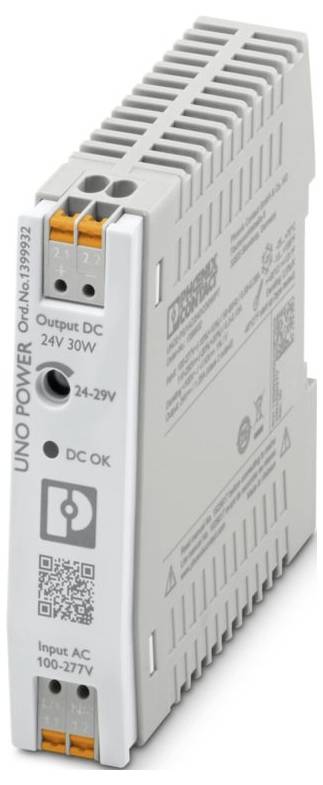

Image similar
Phoenix Contact 1399932 Power supply unit 24 V DC 1.3 A 30 W Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: UNO Power
- Push-in connection
- Width 21 mm
- Height: 90 mm
- Depth: 90 mm
- Colour: green
- Flammability class to UL 94: V0 (housing, terminals)
- Material: housing: PC
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 70 °C (> 55 °C DERATING OUT 2.5 %/K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 61000-4-11
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Shock (operating): 18 ms, 30 g, per direction of room (IEC 60068-2-27)
- Vibration (operation): 10 Hz ... 56.9 Hz, amplitude ±0.35 mm (IEC 60068-2-6);59.6 Hz ... 150 Hz, 5g, 20 cycles
- Stripped length: 10 mm
- Mounting position: Horizontal mounting rail NS 35, EN 60715
- Frequency range: 0.15 MHz ... 80 MHz
- CB scheme (IEC 61010-1, IEC 61010-2-201)
- Protection class: II
- Frequency: 50 Hz
- Rated input voltage range: 100 V AC ... 277 V AC
- Input voltage range: 110 V DC ... 250 V DC ±20 %;125 V DC ... 250 V DC ±10 % (UL)
- Switch-on current impulse: Typical 35 A at 25 °C
- Switch-on current surge integral (I2t) < 0.3 A2S
- Mains failure bridging time: Typ. 18 ms (120 V AC);typ. 90 ms (230 V AC)
- CURRENT CONSUMPTION 0.3 A (110 V DC);0.13 A (250 V DC)
- On-time: Typ. 1 s
- Selection of suitable fuse for the input protection: 6 A ... 16 A (characteristic B, C, D, K or comparable)
- Efficiency: Type. 90.5 % (120 V AC);typ. 91.9 % (230 V AC)
- Rated output voltage 24 V DC
- Setting range of output voltage (USet): 24 V DC ... 29 V DC (> 24 V DC, limited power constant)
- Nominal output current (IN): 1.3 A.
- Short-circuit-proof: Yes
- Output power (PN) 30 W
- Regenerative resistance ≤ 35 V DC
- Protection against overvoltage at output (OVP): ≤ 35 V DC
- Residual ripple: Type 60 mVss (at nominal values)
- Rise time: < 1 s (Uout = 10 % ... 90 %
- Series switching capability: Yes, for increasing the voltage
- No-load power Maximum < 0.26 W (230 V AC)
- Power dissipation Maximum load: < 2.7 W (230 V AC)
- Parallel switching capability: Yes, for enhancing the power and redundancy with diode
- Safety (secondary side): Electronic
- Input: 2 kV (test efficiency 4 - symmetric);4 kV (test efficiency 4 - asymmetric)
- Position: 2.x
- Wire connection: Conductor connection
- rigid: 0.2 mm² ... 4 mm².
- flexible: 0.2 mm² ... 4 mm².
- Flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 2.5 mm².
- Flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 2.5 mm².
- Rigid (AWG): 24 ... 12;17
- Output:1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
- LED signaling: LED signaling
- Signalling types: LED DC OK - signal state operation (UN = 24 VDC, Iout = IN)
- Function: Visual display operating condition
- Number of phases: 1
- Insulation voltage input/output: 4 kV AC (type test);3.75 kV AC (routine test)
- MTBF (IEC 61709, SN 29500): > 2872000 h (25 °C);> 1743000 h (40 °C);> 980000 h (55 °C)
- Service life (electrolytic capacitors): Life expectancy (electrolytic capacitors)
- Current: 0.938 A
- Temperature 25 °C.
- Time 378000 h
- Additional text: Class 3
- Article dimensions: Article dimensions
- Mounting dimensions
- Mounting instructions: Modular: 0 mm horizontally, 30 mm vertically
- Protective coating: No.
- Housing material: Plastic
- Operating height: ≤ 5000 m
- Max. ass. Humidity (operating): ≤ 95% (at 25°C, no condensation)
- Temp code: T4 (-25 ... +70 °C | > 55 °C, DERATING OUT 2.5 %/K)
- EN 61010-1: II (≤ 5000 m)
- EN 62477-1: III (≤ 2000 m)
- Standard name: Network variation/undervoltage
- Low voltage: Protective extra-low voltage
- UL
- SIQ: SIQ
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Low Voltage Directive: Conformity to NSR Directive 2014/35/EU
- EMC requirements Immunity: EN 61000-6-2
- Line-guided interference emission: Line-guided interference emission
- Interference radiation: Interference radiation
- Discharge of static electricity: Discharge of static electricity
- Contact discharge 6 kV (test efficiency 3)
- 8 kV (test efficiency 3)
- Note: Criterion A
- Electromagnetic HF-field: Electromagnetic HF-field
- 10 V/m test field strength (test strength 3)
- Fast Transients (Burst): Fast Transients (Burst)
- Surge voltage load (SURGE): Surge current load (SURGE)
- Conducted interference: Conducted interference
- Voltage 230 V, AC II
- Voltage dips: Voltage dips
- Voltage dip 0%
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Criterion C: Intermittent impairment of the operating behavior that the device itself corrects or can be restored by operating the controls.
- Surrounding temperature (startup type tested): -40 °C
- AWG: 24 ... 14 (Cu)
- AC operation: AC operation
- TN, TT, IT (PE)
- National mains voltage typical: 120 V AC;230 V AC
- Voltage type of supply voltage: DC
- Frequency range (FN): 50 Hz ... 60 Hz ±10 %
- Protective circuit: Transient overvoltage protection | varistor
- Leakage current against PE < 0.25 mA
- DC-operation: DC-operation
- DERATING < 110 V DC (1 %/V)
- Control deviation: < 1 % (load change static 10 % ... 90< %); 3 % (load change dynamic 10 % ... 90< %); 0.1 % (input voltage variation ±10 %)
- Crest factor: Typ. 3.21 (120 V AC);typ. 4.23 (230 V/ AC)
- Installation distance right / left 0 mm / 0 mm
- Installation distance above/below 30 mm / 30 mm
- EN 61558-2-16: III ( 2000 M, UIN: 100 V AC ... 250 V AC, 110 V DC ... 250 V DC);II (≤ 2000 M)
- Harmonic currents: Harmonic currents
- Flicker: Flicker
- Number of periods: 1 period
- Design of the casing: Polycarbonate
- Emitted interference: Interference acc . To EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial sector)
- Input/output: Asymmetric
- 4 A internal (device protection), slow-blow device input fuse
- Minimum idle power loss: < 0.16 W (120 V AC)
- Power loss nominal load minimum: < 3.2 W (120 V AC)
- Integrated security: No.
- LED off: Supply voltage input AC not present (off)
- LED on (green), DC OK: UOUT > 0.9 x UN (on (green), DC OK)
- Operating height (derating output power): > 2000 m (derating POUT: 10 %/1000 m)
- Safety of power supplies up to 1100 V (insulation distances): Safety of power supplies up to 1100 V (insulation distances)
- Electrical Safety: Electrical Safety
- Safe separation: Secure separation
- Limiting network harmonic currents: Limiting line harmonic currents
- Mains variation/undervoltage: Supply variation/undervoltage
- Output current range: 1 A ... 1.25 A
- Depth (device depth (rail mounting): 84 mm (device depth (rail mounting))
- ANSI/UL 121201 ANSI/UL 121201
- Short circuit current 2 A
- Material footbolts: PBT (polybutylene terephthalate)
- Product type
Power supply unit
- Min. input voltage
100 V AC
110 V DC
- Input voltage (max.)
277 V AC
250 V DC
- Max. output current
1.3 A
- Output current (max.) - rounded
1.3 A
30 W
- Output type (power supply units)
Adjustable
- Phases
1
- Output voltage (nominal)
24 V DC
- Connection
Push-in spring-loaded terminal
- Dim
(L x W x H) 90 x 21 x 90 mm
- Output voltage (max.)
29 V DC
- Output voltage (min.)
24 V DC
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
55 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
1399932
- Content
1 pc(s)
- MTBF
2872000 h
- PSU features
Adjustable voltage output
- Width
21 mm
- Height
90 mm
- Length
90 mm
IP20
- Max. temperature
70 °C
- Min. temperature
-25 °C
- Type
UNO2-PS/1AC/24DC/30W/PT
- Efficiency
91.9 %
- Depth
90 mm
- Recess height
90 mm
21 mm
90 mm
90 mm
90 mm
FALSE
TRUE
AC
30 W
TRUE
Other
TRUE
FALSE
TRUE
IP20
FALSE
24-29 V
TRUE
85-305 V
85-305 V
TRUE
None
1.3 A
24 V
1.3 A
None
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3588098 Phoenix Contact 1399932 Power supply unit 24 V DC 1.3 A 30 W Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3588098 Phoenix Contact 1399932 Power supply unit 24 V DC 1.3 A 30 W Content 1 pc(s)
Description
Primary-switched power supply, UNO Power, push-in connection, mounting rail, 1-phase input, Output: 24 V DC / 1.3 A, adjustable from 24 V DC ... 29 V DC
