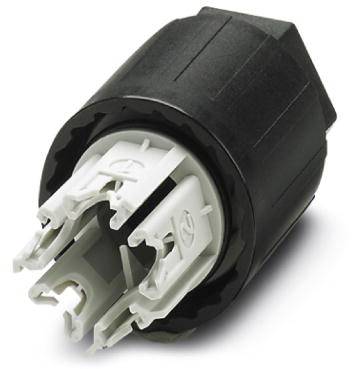

Phoenix Contact 1410409 Nut Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Nut
Total no. of pins
5
Connection
IDC
Content
1 pc(s)
Nominal current - rounded value
40 A
Datasheet (PDF)
Technical specifications

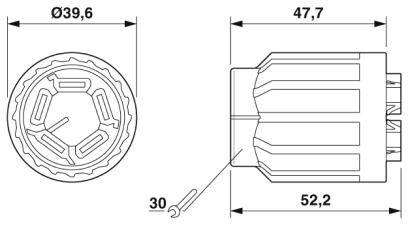

- Design: QPD 5x6.0
- Connection method: QUICKON connection
- Spanner size 30 mm
- Tightening torque union nut: 15 Nm
- Number of connections: 10
- Wire insulation material: PVC / PE / TPE / rubber
- Wire diameter incl. insulation: 2.95 mm ... 5 mm
- External diameter of the cable: 9 mm ... 14 mm
- Ambient temperature (storage/transport): -40 °C ... 80 °C
- Rated surge voltage (III/3) 8 kV
- Material contact carrier: PA
- Flammability class according to UL 94: V0
- Over voltage category III
- Pollution level 3
- Type
QPD N 4PE6,0 9-14 BK
- Product type
Nut
- Total no. of pins
5
- Connection
IDC
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+100 °C
- Nominal current
40 A
- Min. temperature
-40 °C
- Nominal current - rounded value
40 A
- Nominal voltage
690 V
14 bis 10
- Manufacturer part #
1410409
- Insulation material
PA
- Number of pins
5
- max. cross section
6 mm²
- Min. cross section
2.5 mm²
- Cross-section range
2.5 - 6 mm²
- RoHS-compliant
Yes
IP66
IP68
IP69K
Other
FALSE
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137279 Phoenix Contact 1410409 Nut Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2137279 Phoenix Contact 1410409 Nut Total number of pins: 5 1 pc(s)
Description
Innovative and time-saving - QUICKON quick connection saves up to 80% time when connecting on site. Convenient: Easy and quick assembly without special tools. Extremely robust: Housing in the protection types IP68/IP69K and IK07 for a wide range of applications.
