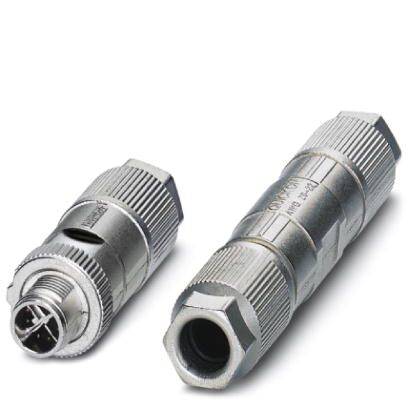

Phoenix Contact 1414412 Wire connector Total number of pins: 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Wire connector
Total no. of pins
8
Connection
Cut & Clip connector
Content
1 pc(s)
Type
SACC-CC-8QO SH ETH
Datasheet (PDF)
Technical specifications

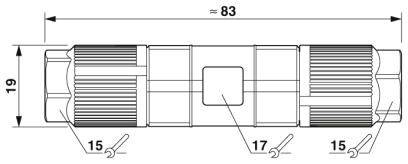

- Spanner size 15 mm
- Wire insulation material: PVC / PE / PP / rubber

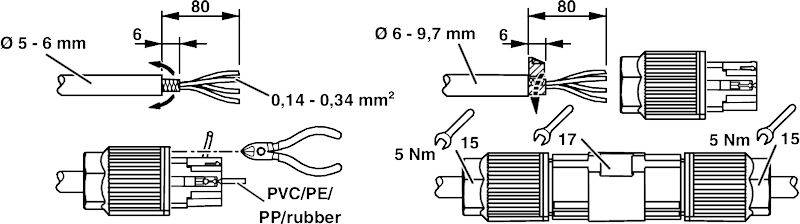

- Wire diameter incl. insulation: 0.75 mm ... 2 mm
- Material contact carrier PA 6.6
- Flammability class according to UL 94: V0
- Over voltage category III
- Pollution level 3
- Material seal: NBR
- Insulation resistance ≥ 100 MΩ
- Standards/regulations: PA 6.6: Fire protection in rail vehicles - Requirements sets R22, R23 and R24 according to DIN EN 45545-2 (Hazard level HL1 - HL3)
- Material knurl: Die-cast zinc, nickel-plated
- Type
SACC-CC-8QO SH ETH
- Product type
Wire connector
- Total no. of pins
8
- Connection
Cut & Clip connector
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Contact material
CuSn
- Manufacturer part #
1414412
- Number of pins
8
- RoHS-compliant
Yes
IP65
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137602 Phoenix Contact 1414412 Wire connector Total number of pins: 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2137602 Phoenix Contact 1414412 Wire connector Total number of pins: 8 1 pc(s)
Description
Transmit signals reliably - 360° shielding in electromagnetically loaded environment.
