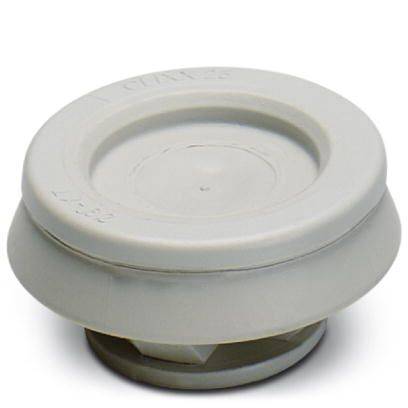

Phoenix Contact 1415188 MG-INC-M25-M67L-PTES-LG Membrane gland M25 M25 Polypropylene Light grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Membrane gland
External thread
M25
Size
M25
Material
Polypropylene
Outside Ø
25 mm
Datasheet (PDF)

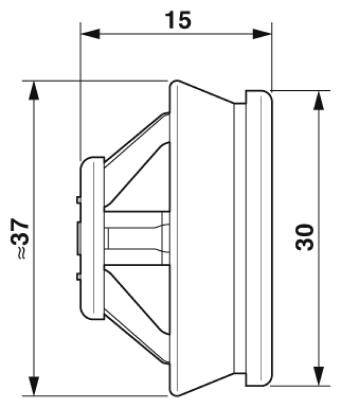

Technical specifications
- Length without connection thread: 7 mm
- Diameter of connection thread 25 mm
- Hexagonal corner dimensions 40 mm
- Screw connection material: Polypropylene
- Material seal: TPE
- Diameter through hole 25 mm - 25.7 mm
- External diameter of the cable: 9 mm - 17 mm
- Product type
Membrane gland
- Outside Ø
25 mm
- Factory colour
Light grey
- External thread
M25
- Size
M25
- Thread length
8 mm
- Clamp Ø
9 mm
- Terminal Ø (max.)
17 mm
- Length
15 mm
IP67
IP66
- Min. temperature
-40 °C
- Max. temperature
+65 °C
- Material
Polypropylene
- Content
20 pc(s)
- Dim
7
- Dimensions
7 mm
- Manufacturer part #
1415188
- Type
MG-INC-M25-M67L-PTES-LG
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209210 Phoenix Contact 1415188 MG-INC-M25-M67L-PTES-LG Membrane gland M25 M25 Polypropylene Light grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 2209210 Phoenix Contact 1415188 MG-INC-M25-M67L-PTES-LG Membrane gland M25 M25 Polypropylene Light grey 20 pc(s)
Description
Screw connection, material Screw connection: Polypropylene, Application: Standard, cable outer diameter 9 mm ... 17 mm, shielding: no, connection thread: M25, color: Light gray
