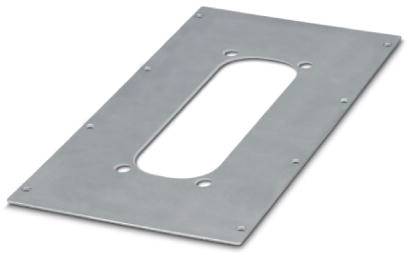

Phoenix Contact 1415245 Base Bottom plate Stainless steel, NBR Silver-grey 1 pc(s)
Product type
Bottom plate
Factory colour
Silver-grey
Dim

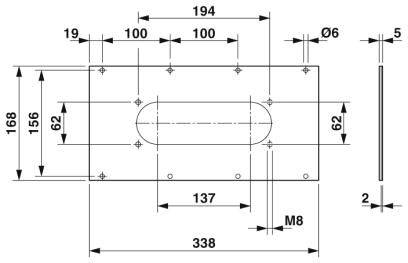

(L x W x H) 338 x 168 x 2 mm
Content
1 pc(s)
Material
Stainless steel
NBR
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (operation): -40 °C ... 100 °C
- Note: Including fixing screws

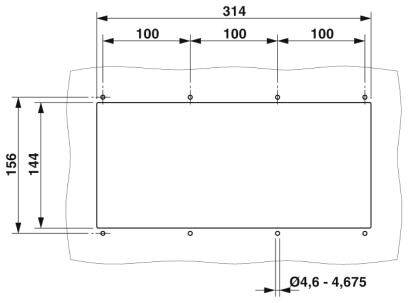

- Mounting instructions: Diameter mounting hole for self-tapping screw: 4.5 mm ... 4.7 mm, fixing screws (M5x12): Tightening torque 1.0 Nm ...1.2 Nm, inner hexagon SW4
- Gasket present: Yes
- Product type
Bottom plate
- Factory colour
Silver-grey
- Dim
(L x W x H) 338 x 168 x 2 mm
- Content
1 pc(s)
- Material
Stainless steel
NBR
- Width
168 mm
- Height
2 mm
- Length
338 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2137134 Phoenix Contact 1415245 Base Bottom plate Stainless steel, NBR Silver-grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2137134 Phoenix Contact 1415245 Base Bottom plate Stainless steel, NBR Silver-grey 1 pc(s)
Description
Base plate, with seal, for CES multigates, with 1 opening, including fixing screws
