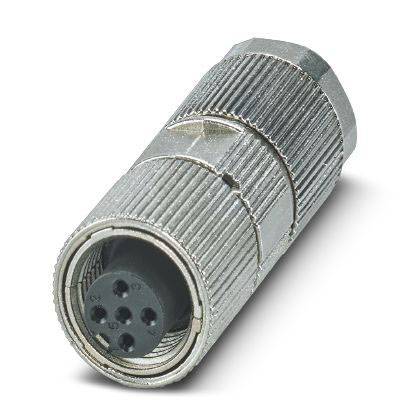

Phoenix Contact 1422852 Connector Socket, straight Total number of pins: 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector
Connector type
Socket, straight

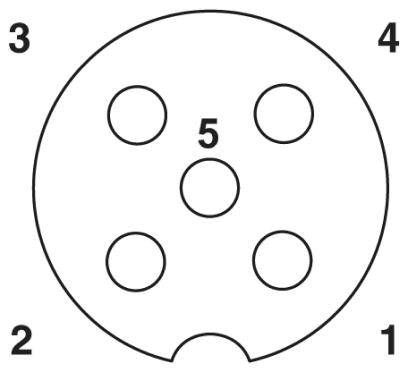

Total no. of pins
5
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
Technical specifications
- Spanner size 15 mm
- Cable outer diameter: 4.5 mm ... Wire cross section 7.5 mm
- Mating cycles: ≥ 100
- Material contact carrier PA 6.6
- Flammability class according to UL 94: V0
- Over voltage category III
- Pollution level 3
- Material seal: FKM
- Insulation resistance ≥ 100 MΩ
- Coding: A - standard
- Standards/regulations: M12 connector IEC 61076-2-101; shock, vibration EN 50155:2001
- Material knurl: Die-cast zinc, nickel-plated
- Type
SACC-M12FS-5CT-CM SH
- Product type
Connector
- Connector type
Socket, straight
- Total no. of pins
5
- Connection
Crimp
- Content
1 pc(s)
- Max. temperature
+85 °C
- Min. temperature
-40 °C
- Manufacturer part #
1422852
- Number of pins
5

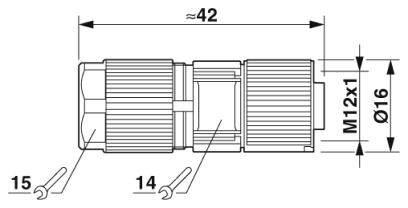

- Length
42 mm
- (Ø)
16 mm
- RoHS-compliant
Yes
IP65
IP67
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209240 Phoenix Contact 1422852 Connector Socket, straight Total number of pins: 5 1 pc(s)
Datasheet 2209240 Phoenix Contact 1422852 Connector Socket, straight Total number of pins: 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2209240 Phoenix Contact 1422852 Connector Socket, straight Total number of pins: 5 1 pc(s)
Description
Extremely compact due to small connection space and high contact density. Safe use in the field thanks to high degrees of protection. Automated processing possible.
