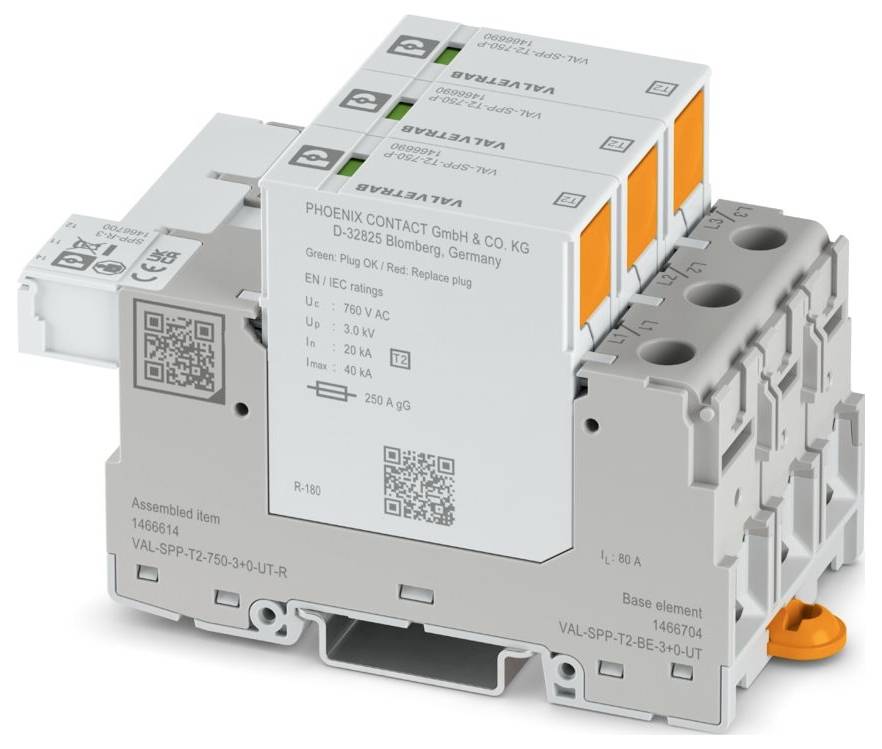

Phoenix Contact 1466614 VAL-SPP-T2-750-3+0-UT-R Surge arrester Piece 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: VAL-SPP
- IEC TEST CLASS II;T2
- Model: Two-part rail module can be plugged
- Number of poles: 3
- Message Surge protection defective: Optical, telecommunication contact
- NOMINAL VOLTAGE UN 554/960 V AC ±10 % (TN-C);690 V AC ±10 % (IT)
- Display / distance message: Display / remote message
- Switching function: Changer
- Push-in connection
- M5 screw thread
- Tightening torque 30 lbf-in.
- Conductor cross-section flexible: 0.25 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.25 mm² ... 1.5 mm².
- Wire cross-section AWG: 14 ... 2
- Width 53.4 mm
- Height: 109.1 mm
- Depth: 71.5 mm (including mounting rail 7.5 mm)
- Division unit 3 TE
- Colour: Grey (RAL 7042);light gray (RAL 7035)
- Flammability class according to UL 94 V-0
- Material housing: PA 6.6-FR 20 % GF;PBT
- Highest continuous voltage UC 760 V AC
- Earth current IPE ≤ 1 mA
- Nominal impulse surge current In (8/20) µs: 20 kA
- Total leakage surge current ITtotal (8/20) µs 120 kA
- Response time TA ≤ 25 ns
- Required maximum backup fuse: 1 A (gG)
- Ambient conditions: Environmental conditions
- Protection type: IP20C (when installed)
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 5000 m (amsl)
- Standards/regulations EN 61643-11
- Note:2012 + A11:2018
- Mounting type: Rail: 35 mm
- EN type T2
- POWER SUPPLY SYSTEM IEC: TN-C;IT
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Nominal frequency FN 50 Hz (60 Hz)
- CTI value of material: 600
- INSULATION MATERIAL PA 6.6-FR 20 % GF;PBT
- Material group: I
- PROTECTION PATHS L-L;L-G
- Standby power consumption PC: ≤ 1200 MVA
- Maximum Surge current Imax (8/20) µs 40 kA
- Protection level Up: ≤ 3 kV
- Residual voltage Ures: ≤ 3 kV (in);≤ 2.7 kV (at 10 kA);≤ 2.5 kV (at 5 kA);≤ 2.3 kV (at 3 kA)
- TOV behavior at UT: 1005 V AC (5 s / resistance mode);1316 V AC (120 min / safe failure mode)
- Permissible air humidity (operation): 5 % ... 95 %.
- Shock (operation): 25g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
- UL specifications: UL specifications
- Power distribution system: Delta
- Nominal frequency 50/60 Hz
- SPD type 4CA
- Naming of connection: Remote fault signaling contact
- Operating voltage 250 V AC
- Stripped length: 8 mm
- Remote defect signaling contact: Defect signaling contact
- Nominal load current IL: 80 A (25 mm²)
- Short-circuit resistance ISCCR 25 kA
- Maximum fusing for V-passage wiring: 80 A (gG)
- Maximum fusing for stub cable wiring: 250 A (gG)
- Maximum continuous voltage MCOV (L-G) 750 V AC
- Nominal voltage: 600 V/AC
- Measured limiting voltage MLV (L-G): 3120 V
- UL Display / Telecontrol: UL Display / remote indication
- Operating current AC: 5 mA AC ... 1 A AC
- UL connection data: UL connection data
- Maximum continuous voltage MCOV (L-L) 1500 V AC
- Measured limiting voltage MLV (L-L): 6240 V
- General: General
- Nominal leakage surge current In:20 kA
- 2 conductors of the same cross-section flexible with TWIN cable end sleeve with plastic sleeve: 1.5 mm² ... 16 mm²
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 1.5 mm².
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 0.75 mm²
- Insulation type: The product has double / reinforced insulation between the main and auxiliary circuits.
- Ambient temperature (mounting): -5 °C ... 50 °C
- OPERATING VOLTAGE AC: 5 V AC ... 250 V AC (≤ 2000 m (amsl));5 V AC ... 150 V AC (≤ 5000 m (amsl))
- OPERATING VOLTAGE DC 30 V DC
- Operating current DC 200 mA DC
- Product type
Surge arrester
- Nominal voltage
600 V AC
- Type
Mounting rail module can be plugged in two parts
IP20C (when fitted)
- Manufacturer part #
1466614
- Type
2
- Dim
(W x H x D) 53.4 x 109.1 x 71.5 mm
- Width
53.4 mm
- Height
109.1 mm
- Depth
71.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3568610 Phoenix Contact 1466614 VAL-SPP-T2-750-3+0-UT-R Surge arrester Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3568610 Phoenix Contact 1466614 VAL-SPP-T2-750-3+0-UT-R Surge arrester Piece 1 pc(s)
Description
Pluggable surge arrester, according to Type 2 / Class II, for 3-phase power supply networks with combined laid PE and N in one conductor (4-conductor system: L1, L2, L3, PEN), with telecommunication contact.
