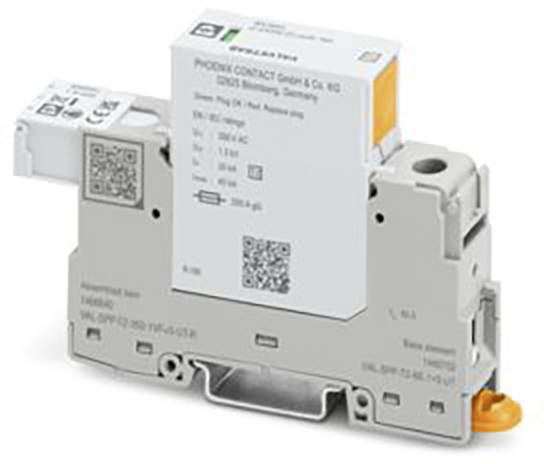

Phoenix Contact 1466640 VAL-SPP-T2-350-1VF+0-UT-R Surge arrester 20 kA 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: VAL-SPP
- IEC TEST CLASS II;T2
- Model: Two-part rail module can be plugged
- Number of poles: 1
- Message Surge protection defective: Optical, telecommunication contact
- NOMINAL VOLTAGE UN: 240 V AC ±10 % (TN);240 V AC ±10 % (TT);230 V AC ±10 % (IT)
- Display / distance message: Display / remote message
- Switching function: Changer
- Push-in connection
- M5 screw thread
- Tightening torque: 3 Nm ... 3.5 Nm
- Conductor cross-section flexible: 0.25 mm² ... 1.5 mm².
- Conductor cross-section rigid: 0.25 mm² ... 1.5 mm².
- Wire cross-section AWG: 24 ... 16
- Width 17.8 mm
- Height: 1.8" (110.8 mm)
- Depth: 71.5 mm (including mounting rail 7.5 mm)
- Division unit 1 TE
- Colour: Grey (RAL 7042);light gray (RAL 7035)
- Flammability class according to UL 94 V-0
- Material housing: PA 6.6-FR 20 % GF;PBT
- Highest continuous voltage UC 350 V AC
- Earth current IPE ≤ 5 µA
- Nominal impulse surge current In (8/20) µs: 20 kA
- Response time TA ≤ 25 ns
- Required maximum backup fuse: 1 A (gG)
- Ambient conditions: Environmental conditions
- Protection type: IP20C (when installed)
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 5000 m (amsl)
- Standards/regulations EN 61643-11
- Note:2012 + A11:2018
- Mounting type: Rail: 35 mm
- EN type T2
- POWER SUPPLY SYSTEM IEC: TN;TT
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level 3
- Nominal frequency FN 50 Hz (60 Hz)
- CTI value of material: 600
- INSULATION MATERIAL PA 6.6-FR 20 % GF;PBT
- Material group: I
- PROTECTION PATHS L-N;L-PE;L-PEN
- Maximum Surge current Imax (8/20) µs 40 kA
- Protection level Up: ≤ 1.5 kV
- Residual voltage Ures: ≤ 1.5 kV (in);≤ 1.3 kV (at 10 kA);≤ 1.2 kV (at 5 kA);≤ 1.1 kV (at 3 kA)
- Impulse contact voltage at 6 kV (1.2/50) µs: ≤ 1.5 kV
- TOV behavior at UT: 460 V AC (5 s / resistance mode);460 V AC (120 min / resistance mode)
- Permissible air humidity (operation): 5 % ... 95 %.
- Shock (operation): 25g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation): 5g (10 ... 500 Hz / 2.5 h / X, Y, Z)
- Naming of connection: Remote fault signaling contact
- Stripped length: 8 mm
- Remote defect signaling contact: Defect signaling contact
- Nominal load current IL: 80 A (25 mm²)
- Short-circuit resistance ISCCR 25 kA
- Maximum fusing for V-passage wiring: 80 A (gG)
- Maximum fusing for stub cable wiring: 200 A (gG)
- Operating current AC: 5 mA AC ... 1 A AC
- General: General
- 2 conductors of the same cross-section flexible with TWIN cable end sleeve with plastic sleeve: 1.5 mm² ... 16 mm²
- Conductor cross-section flexible with wire-end sleeve with plastic sleeve: 0.25 mm² ... 1.5 mm².
- Conductor cross-section flexible with wire-end sleeve without plastic sleeve: 0.25 mm² ... 0.75 mm²
- Insulation type: The product has double / reinforced insulation between the main and auxiliary circuits.
- Ambient temperature (mounting): 5 °C ... 50 °C
- OPERATING VOLTAGE AC: 5 V AC ... 250 V AC (≤ 2000 m (amsl) at pollution level 2);5 V AC ... 150 V AC (≤ 5000 m (amsl))
- Operating voltage DC: 125 V DC (≤ 5000 m (amsl))
- Operating current DC 200 mA DC
- Maximum power loss at rated conditions: ≤ 1.75 MVA
- Product type
Surge arrester
- Leakage current
20 kA
- Type
Mounting rail module can be plugged in two parts
IP20C (when fitted)
- Manufacturer part #
1466640
- Type
2
- Dim
(W x H x D) 17.8 x 110.8 x 71.5 mm
- Width
17.8 mm
- Height
110.8 mm
- Depth
71.5 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
TRUE
Other
350 V
20 kA
TRUE
1.5 kV
Optic
TRUE
1.5 mm²
35 mm²
FALSE
FALSE
TRUE
FALSE
FALSE
FALSE
FALSE
FALSE
40 kA
25 kA
200 A
80 A
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3568650 Phoenix Contact 1466640 VAL-SPP-T2-350-1VF+0-UT-R Surge arrester 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3568650 Phoenix Contact 1466640 VAL-SPP-T2-350-1VF+0-UT-R Surge arrester 20 kA 1 pc(s)
Description
Pluggable surge arrester, according to Type 2 / Class II, for 1-phase power supply networks with combined laid PE and N in one conductor (2-conductor system: L, N/PEN), with telecommunication contact.
