Name: Phoenix Contact 1466780 VAL-SPP-T2-1500DC-PV-P Surge protection plug Surge protection for: PV systems 20 kA Piece 10 pc(
Brand: Phoenix Contact
SKU: 3588261

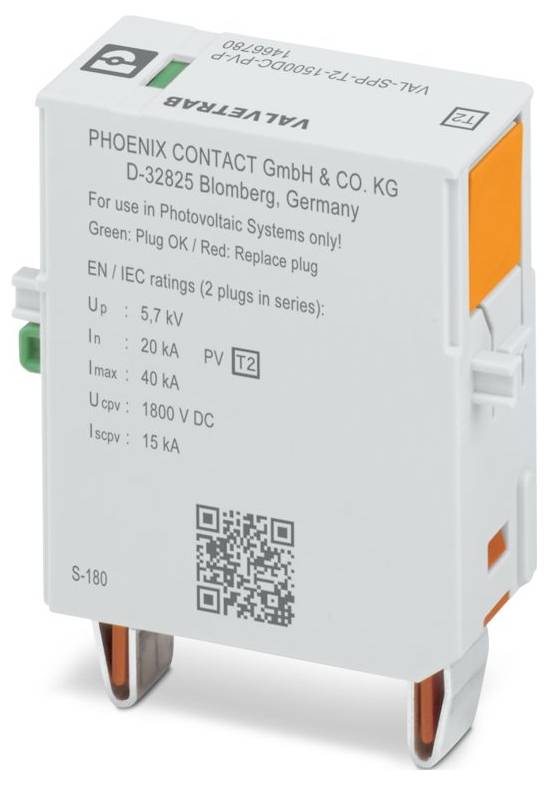

A white electrical device labeled 'PHOENIX CONTACT GmbH & CO. KG' with specifications for PV and Ucpv ratings, designed for plug replacement.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: VAL-SPP
IEC-TEST CLASS PV II;PV T2
Plug type
Number of poles: 1
Message Surge Protection Faulty: Optical
Connection type: Pluggable
Width 17.5 mm
Height: 54.2 mm
Depth: 61.5 mm
Division unit 1 TE
Colour: Light gray (RAL 7035)
Flammability class according to UL 94 V-0
Material housing PA 6.6-FR 20 % GF
Earth conductor current IPE ≤ 350 µA AC;≤ 100 µA DC
Nominal impulse surge current In (8/20) µs: 20 kA
Total leakage surge current ITtotal (8/20) µs 40 kA
Response time TA ≤ 25 ns
Ambient conditions: Environmental conditions
Protection class: IP20C
Ambient temperature (operation): -40 °C ... 85 °C
Ambient temperature (storage/transport): -40 °C ... 85 °C
Altitude: ≤ 4000 m (amsl)
Standards/regulations: IEC 61643-31
Note: 2018
Mounting type: On base element
EN type T2
Power supply system IEC DC
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
CTI value of material: 600
INSULATION MATERIAL PA 6.6-FR 20 % GF
Material group: I
Standby power consumption PC: ≤ 90 MVA
Maximum Surge current Imax (8/20) µs 40 kA
Protection level Up: ≤ 5.7 kV (2 plugs in series)
Ures residual voltage: ≤ 5.7 kV (in, 2 plugs in series);≤ 5 kV ( in series at 10 kA, 2 plugs) ;≤ 4.8 kV (in series at 5 kA, 2 plugs in series);≤ 4.5 kV ( in series at 3 kA, 2 plugs)
Permissible air humidity (operation): 5 % ... 95 %.
Shock (operation): 25g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation): 5g (5-500 Hz / 2.5 h / XYZ)
Mounting location: Interior
Location of the separator: Internal
Accessibility: Accessible
SPD failure behavior: OCFM (separation fault behavior)
DC side protection circuit (DC): Protective circuit DC side (DC)
Maximum continuous voltage UCPV:1800 V DC (2 connectors in series)
Short-circuit resistance ISCPV 15000 A.
Open circuit voltage UOCSTC: 1500 V DC (2 connectors in series)
Riso insulation resistance > 5 MΩ (at 500 V DC)
Port configuration: Y-configuration
Protective circuit PV: Protective circuit PV
Continuous operating current ICPV ≤ 100 µA DC
Ambient temperature (mounting): -5 °C ... 50 °C

Product type: Surge protection plug

Surge protection for: PV systems

Leakage current: 20 kA

Type: Connector

: IP20C

Manufacturer part #: 1466780

Type: 2

Dim: (W x H x D) 17.5 x 54.2 x 61.5 mm

Width: 17.5 mm

Height: 54.2 mm

Depth: 61.5 mm

Content: 10 pc(s)

Packaging type: Piece

UKCA: yes
