Phoenix Contact 1629084 Connector straight Total number of pins: 18 1 pc(s)

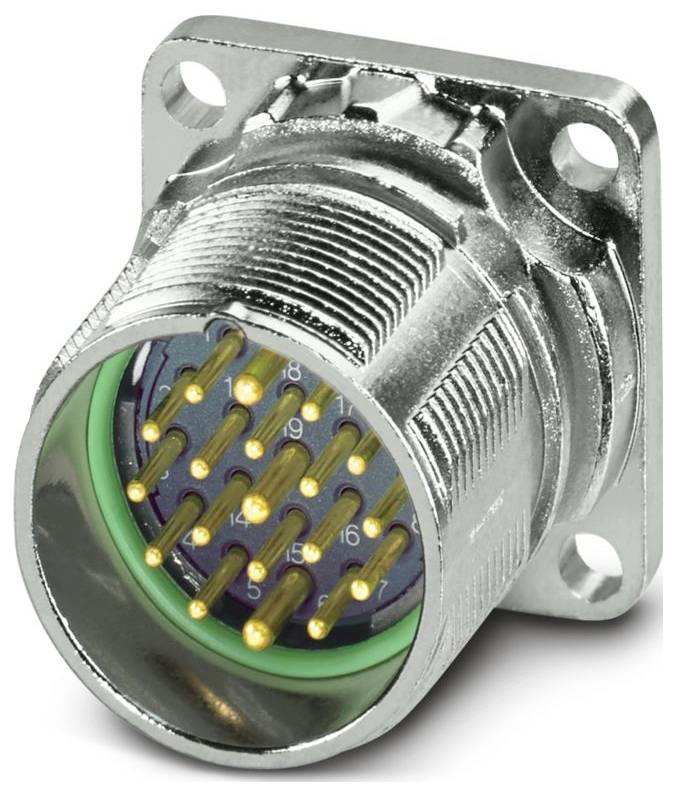

A metallic plug connector with multiple gold pins arranged in two rows, used for industrial or electronic applications.

A metallic plug connector with multiple gold pins arranged in two rows, used for industrial or electronic applications.

Image similar

Product type

Connector

Connector type

straight

Total no. of pins

18

Content

1 pc(s)

Type

M23-1RP1N8AW500S

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: M23-1RP1N8AW500S

Product type: Connector

Connector type: straight

Total no. of pins: 18

Content: 1 pc(s)

Max. temperature: 105 °C

Min. temperature: 105 °C

Leading contact (PE): No

No. of contact sizes: 4

Manufacturer part #: 1629084

Dimensions: 26 mm x 26 mm mm

Number of pins: 18

Feature: shielded

: IP68

Pin diameter: 3.2 mm

UKCA: yes
