Phoenix Contact 1629091 Connector Total number of pins: 9 Single 1 pc(s)

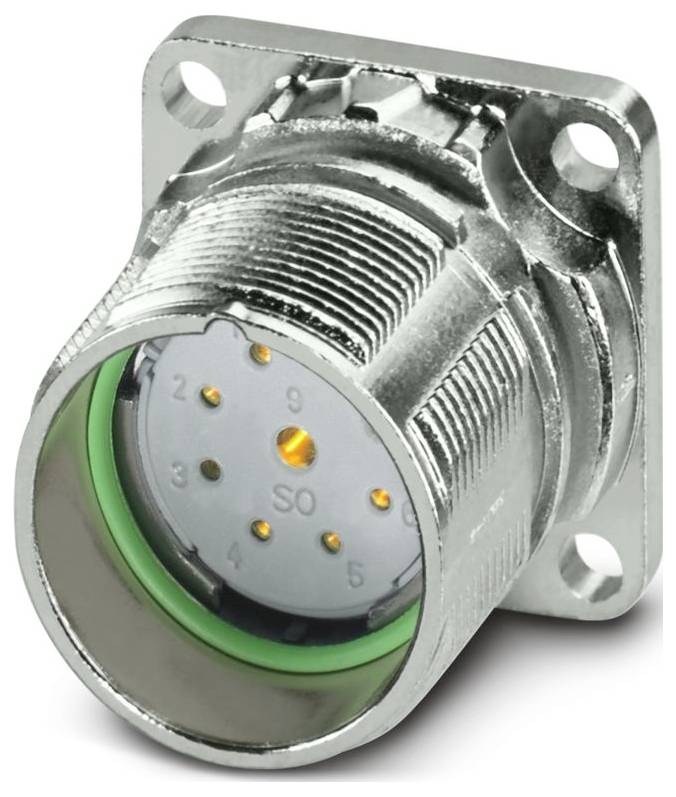

A close-up of a metallic industrial connector with multiple pin holes, mounted on a square base, often used in electrical applications.

A close-up of a metallic industrial connector with multiple pin holes, mounted on a square base, often used in electrical applications.

Image similar

Product type

Connector

Total no. of pins

9

Connection

Socket

Content

1 pc(s)

Type

M23-09S1N8AW500S

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: M23-09S1N8AW500S

Product type: Connector

Total no. of pins: 9

Connection: Socket

Content: 1 pc(s)

Max. temperature: 105 °C

Min. temperature: 105 °C

Leading contact (PE): No

Connection angle: 0°

No. of contact sizes: 4

Manufacturer part #: 1629091

Insulation material: UL 94 V0 standard

Contact size: 3.2

Dimensions: 26 mm x 26 mm mm

Number of pins: 9

Width: 26 mm

Feature: shielded

: IP68

Packaging type: Single

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3572056 Phoenix Contact 1629091 Connector Total number of pins: 9 Single 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3572056 Phoenix Contact 1629091 Connector Total number of pins: 9 Single 1 pc(s)
