Phoenix Contact 1629093 Connector Total number of pins: 7 Piece 1 pc(s)

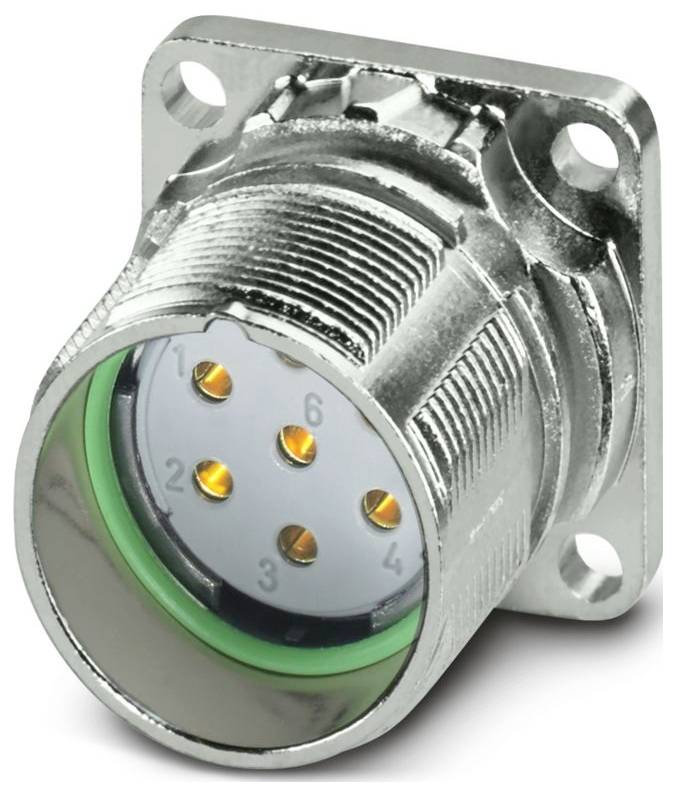

A metallic circular connector with six gold pins, numbered 1 to 6, mounted on a square plate with four screw holes.

A metallic circular connector with six gold pins, numbered 1 to 6, mounted on a square plate with four screw holes.

Image similar

Product type

Connector

Total no. of pins

7

Connection

Socket

Content

1 pc(s)

Type

M23-07S1N8AW500S

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Type: M23-07S1N8AW500S

Product type: Connector

Total no. of pins: 7

Connection: Socket

Content: 1 pc(s)

Max. temperature: 105 °C

Min. temperature: 105 °C

Leading contact (PE): No

No. of contact sizes: 4

Manufacturer part #: 1629093

Insulation material: UL 94 V0 standard

Contact size: 3.2

Dimensions: 26 mm

Number of pins: 7

Feature: shielded

: IP68

Pin diameter: 3.2 mm

Packaging type: Piece

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3571602 Phoenix Contact 1629093 Connector Total number of pins: 7 Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3571602 Phoenix Contact 1629093 Connector Total number of pins: 7 Piece 1 pc(s)
