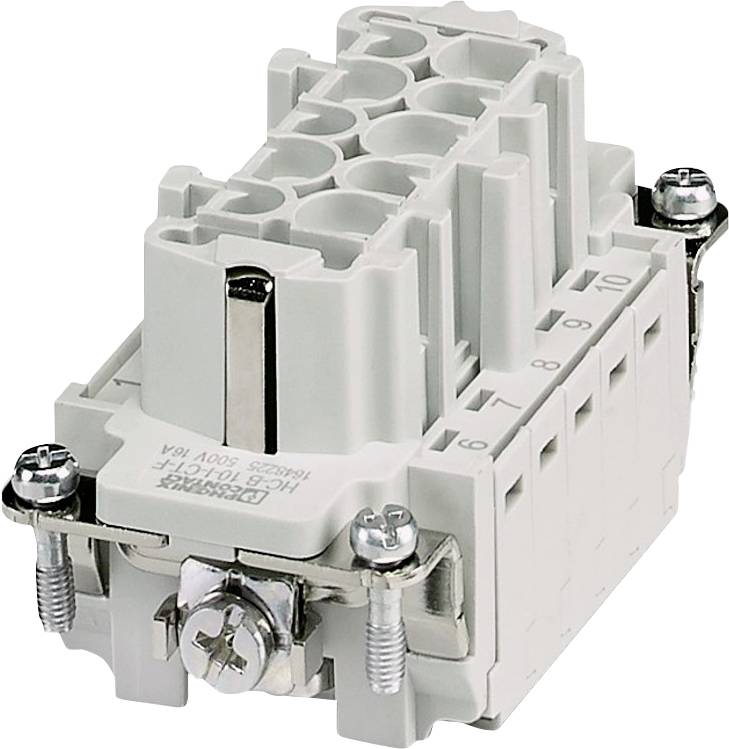

Phoenix Contact 1648225 Connector insert Socket Total number of pins: 10 + PE 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector insert
Connector type
Socket
Total no. of pins
10 + PE
Content
1 pc(s)
Type
HC-B 10-I-CT-F
Datasheet (PDF)
Technical specifications
- Type
HC-B 10-I-CT-F
- Product type
Connector insert
- Connector type
Socket
- Total no. of pins
10 + PE
- Content
1 pc(s)
- Max. temperature
125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Case material
Thermoplastic
- Manufacturer part #
1648225
- Insulation material
Thermoplastic
- Dimensions
34. 34.6. 64 mm
- Number of pins
10
- Width
34 mm
- Height
34.6 mm
- Depth
64 mm
- (Ø)
2.5 mm
- max. cross section
4 mm²
- Min. cross section
0.5 mm²
- Cross-section range
0.5 - 4 mm²
- UKCA
yes
