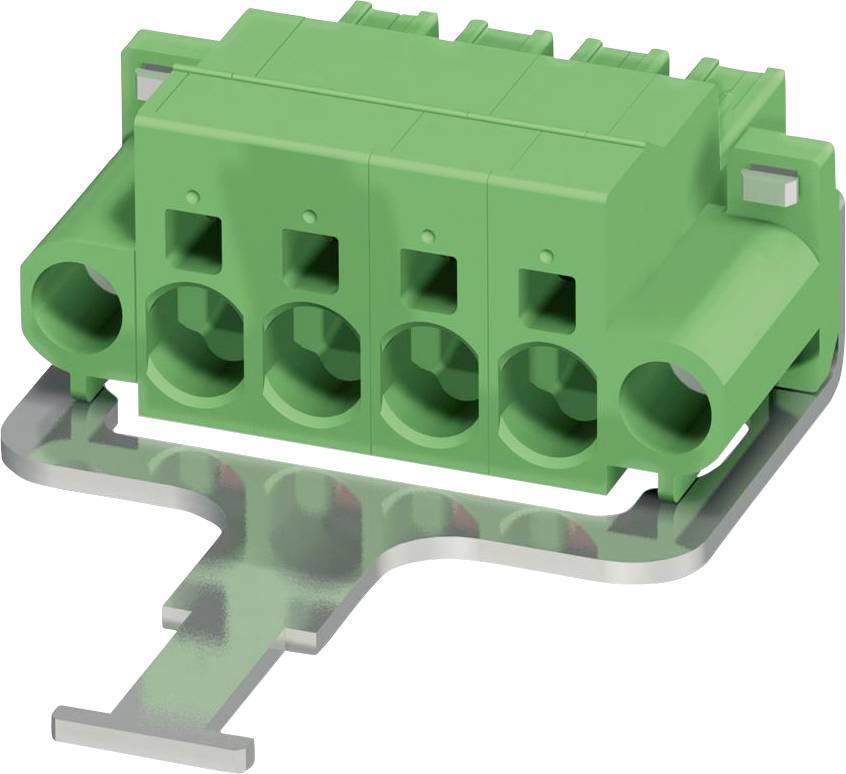

Phoenix Contact 1704071 PCB connector Total number of pins 4 No. of rows 1 50 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
4
CS
7.62 mm
Content
50 pc(s)
No. of rows
1
Datasheet (PDF)
Highlights & Details
PCB connector
- No. of rows 1
- Content 50 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Suitable for single wire cross sections of 0.2-10 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves of 0.25-4 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.2-6 mm²
- Design of electrical connection: Spring-loaded connection
- Rated voltage: 1000 V
- Dimensioning surge voltage: 6 kV
- Flammability class of insulation material according to UL94: V0
- Contact version: Socket
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Polyamide (PA)
- Over voltage category III
- Product type
PCB connector
- Total no. of pins
4
- No. of rows
1
- CS
7.62 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1704071
- Content
50 pc(s)
- Contact material
Copper
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
SPC 5/ 4-STF-SH-7,62
- Number of pins
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3452616 Phoenix Contact 1704071 PCB connector Total number of pins 4 No. of rows 1 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3452616 Phoenix Contact 1704071 PCB connector Total number of pins 4 No. of rows 1 50 pc(s)
Description
PCB connector, nominal cross-section: 6 mm², color: Green, nominal current: 32 0 A, rated voltage (III/2): 1000 V, contact surface: Sn, contact type: Socket, number of potentials: 4, number of rows: 5, number of connections: 7.62, product family: SPC 1/..-STF-SH, grid dimension: 4 mm, connection type: Push-in spring connection, connection direction conductor/board: 4 °, locking hook: COMBICON PC 5, Electrical properties: shielded, locking: screw locking, mounting method: screw flange, packing type: packed in cardboard
