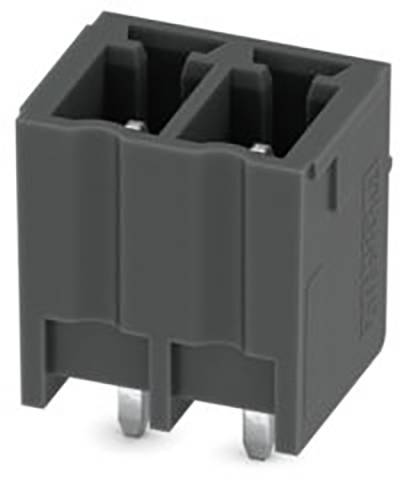

Phoenix Contact 1825665 PCB pin header 200 pc(s)
EAN:
Part number:
Item no:
Product type
PCB pin header
Content
200 pc(s)
Case material
PA
Manufacturer part #
1825665
Type
MCV 1,5/ 2-G-3,81 P20 THRR32
Datasheet (PDF)
Highlights & Details
PCB terminal strip
- Content 200 pc(s)
Technical specifications
- Number of plug contact rows: 1
- Belt type: Other
- Design of the electrical connection: Other
- Mounting method: Other
- Dimensioning surge voltage: 2.5 kV
- Rated current In:8 A.
- Operating temperature 40 °C
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.4 mm
- Pin contact type
- Length of the pin 2 mm
- Number of poles: 2
- Grid dimension of the connections 3.81 mm
- Contact spacing 3.81 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Other
- Over voltage category III
- Product type
PCB pin header
- Case material
PA
- Manufacturer part #
1825665
- Content
200 pc(s)
- Type
MCV 1,5/ 2-G-3,81 P20 THRR32
- Case colour
Black
- Rated voltage
160 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3576220 Phoenix Contact 1825665 PCB pin header 200 pc(s)
User & Safety Instructions
User & Safety Instructions 3576220 Phoenix Contact 1825665 PCB pin header 200 pc(s)
Description
PCB baseboard, rated cross-section: 1.5 mm², Colour: Black, rated current: 8 2 A, rated voltage (III/2): 160 V, contact surface: Sn, contact type: Pen, number of potential: 2, number of rows: 1.5, number of terminals: 3.81, product family: MCV 1/..-G-THR, grid dimension: 2 mm, mounting: THR-soldering, pin layout: Linear pinning, pin Pin length [P]: 2 mm, number of soldering pins per potential: 1, connector system: COMBICON MC 1.5, orientation: plug face: standard, locking: without, mounting type: without, packaging type: belt in 32 mm width, user information and design recommendations for Through Hole Reflow technology can be found under: Downloads
