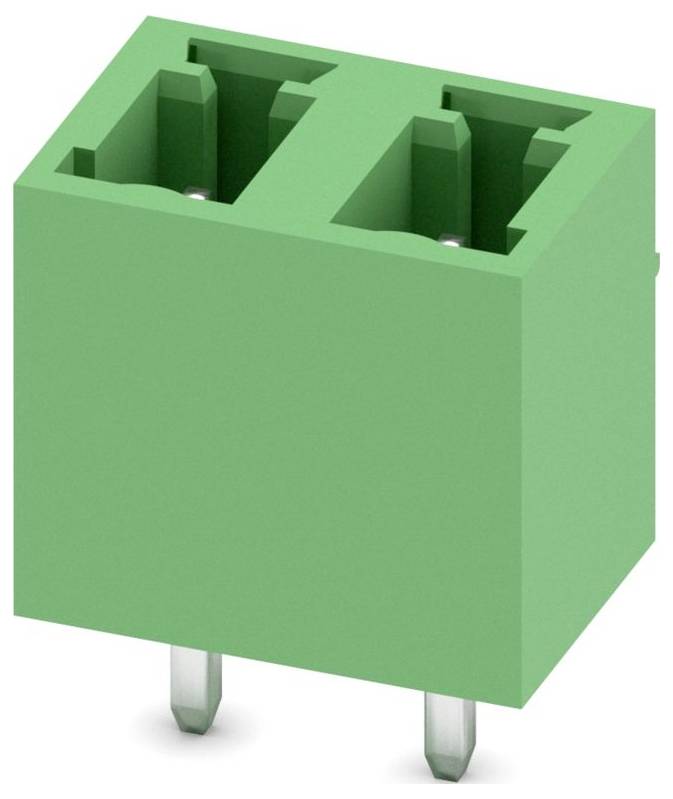

Phoenix Contact 1836299 PCB pin header Total number of pins 2 No. of rows 1 250 pc(s)
EAN:
Part number:
Item no:
Product type
PCB pin header
Total no. of pins
2
Connector type
Plug, mount
CS
5.08 mm
Content
250 pc(s)
Datasheet (PDF)
Highlights & Details
PCB terminal strip
- Total number of pins 2
- No. of rows 1
- Industrial goods Yes
- Content 250 pc(s)
Technical specifications
- Number of plug contact rows: 1
- Tape type: Cardboard (for SMD)
- Design of the electrical connection: Other
- Mounting method: Other
- Dimensioning surge voltage: 4 kV
- Rated current In:8 A.
- Operating temperature 40 °C
- Flammability class of insulation material according to UL94: V0
- Diameter connection pin 1.2 mm
- Pin contact type
- Length of the pin 3.4 mm
- Number of poles: 2
- Grid dimension of the connections 5.08 mm
- Contact spacing 5.08 mm
- Connector design: Fixed connector
- Pollution level: 2
- Material of the contact coating: Tin
- Material of the insulating body: Other
- Over voltage category III
- Product type
PCB pin header
- Total no. of pins
2
- Connector type
Plug, mount
- Total number of pins
2
- No. of rows
1
- CS
5.08 mm
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Pins per row
2
- Connection
THT
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1836299
- Content
250 pc(s)
- Contact material
Copper alloy
- Width
10.16 mm
- Height
10 mm
- Length
7.25 mm
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
MCV 1,5/ 2-G-5,08
- Contact resistance
1.2 mΩ
- Dim
(L x W x H) 7.25 x 10.16 x 10 mm
- Coating thickness (PCB side)
5 µm
- Connector coating thickness
5 µm
- Grade
Standard industry
- Industrial packaging
Yes
- Insulation resistance
10 GΩ
- Hole spacing
5.08 mm
- Dimensions
Rastermaß 5,08 mm / Stiftabmessung 0,8 x 0,8 mm
- Moisture Sensitiviy Level (MSL)
1
- Nominal voltage
320 V
- Compatible with (details)
Series MC 1.5/..-ST-5.08 / MCVR 1.5/..-ST-5.08 / MCVW 1.5/.-ST-5.08 connector
- Number of pins
2
- Mating cycles
25
- Pin length
3.40 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3835573 Phoenix Contact 1836299 PCB pin header Total number of pins 2 No. of rows 1 250 pc(s)
User & Safety Instructions
User & Safety Instructions 3835573 Phoenix Contact 1836299 PCB pin header Total number of pins 2 No. of rows 1 250 pc(s)
Description
Set your PCB connection to the worldwide standard for maximum signal and power transmission. The Phoenix Contact base with item number 1836299 combines precise production, optimum space utilization and highest flexibility in your control cabinet or device.
This text is machine translated.
This text is machine translated.
Features
- Total number of pins: 2
- Number of rows 1
- Industrial goods Yes
- Content 250 pcs
Scope of delivery
- Content 250 pcs
