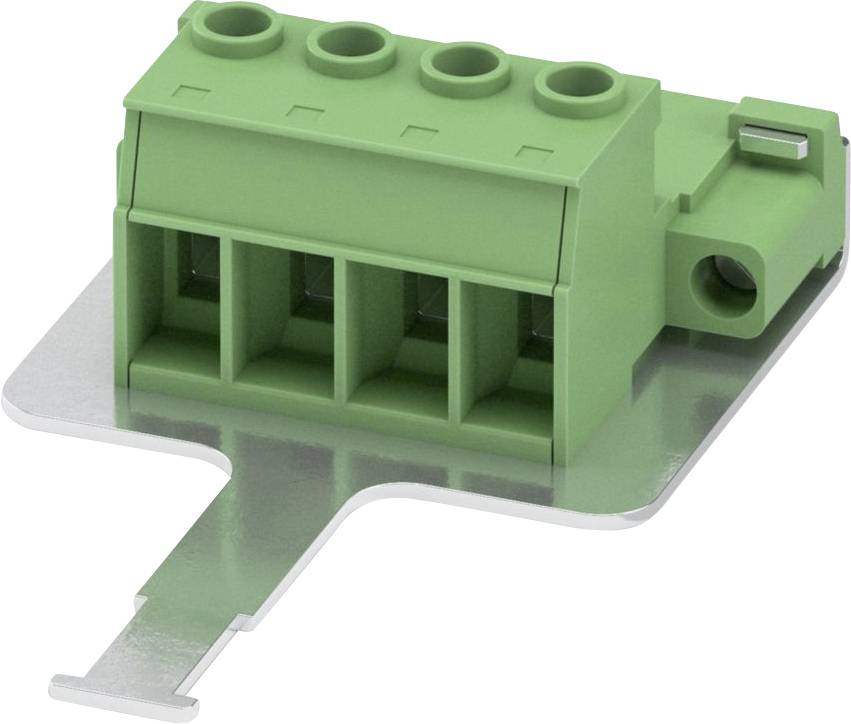

Phoenix Contact 1970346 PCB connector Total number of pins 4 No. of rows 1 25 pc(s)
EAN:
Part number:
Item no:
Product type
PCB connector
Total no. of pins
4
CS
10.16 mm
Content
25 pc(s)
No. of rows
1
Datasheet (PDF)
Highlights & Details
PCB connector
- No. of rows 1
- Content 25 pc(s)
Technical specifications
- Connectable cable type: Round cable
- Suitable for single wire cross sections of 0.75-16 mm²
- Suitable for wire cross-sections of fine wire with wire-end sleeves of 0.5-10 mm²
- Suitable for wire cross-section of without wire-end sleeves: 0.75-16 mm²
- Design of electrical connection: Screw connection
- Rated voltage: 1000 V
- Dimensioning surge voltage: 6 kV
- Flammability class of insulation material according to UL94: V0
- Pollution level: 2
- Material of the contact coating: Silver
- Material of the insulating body: Polyamide (PA)
- Over voltage category III
- Product type
PCB connector
- Total no. of pins
4
- No. of rows
1
- CS
10.16 mm
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Factory colour
Green
- Case material
PA
- Manufacturer part #
1970346
- Content
25 pc(s)
- Contact material
Copper
- Max. temperature
100 °C
- Min. temperature
-40 °C
- Type
IPC 16/ 4-STF-SH-10,16
- Number of pins
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453290 Phoenix Contact 1970346 PCB connector Total number of pins 4 No. of rows 1 25 pc(s)
User & Safety Instructions
User & Safety Instructions 3453290 Phoenix Contact 1970346 PCB connector Total number of pins 4 No. of rows 1 25 pc(s)
Description
PCB connector, nominal cross-section: 16 mm², color: Green, nominal current: 76 4 0 A, rated voltage (III/2): 1000 V, contact surface: AG, contact type: Pin, number of potential: 4, number of rows: 16, number of connections: 10.16, product family: IPC 1/..-STF-SH, grid dimension: 4 mm, connection type: Screw connection: L locking/connecting hook: - without snap-in hook, connector system: COMBICON PC 16, Electrical properties: shielded, locking: screw locking, mounting type: screw flange, type of packaging: packed in cardboard
