Phoenix Contact 2316364 GW PL PA/MODBUS I/O module Modbus-RTU 30 V DC 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Ambient temperature (storage/transport): -40 °C ... 85 °C

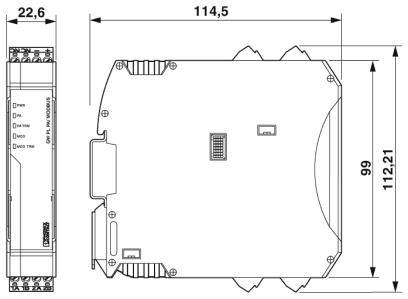

- Depth: 114.5 mm
- Permissible air humidity (operation): 0 % ... 95% (no condensation)
- Altitude: 2000 m.
- Protection class: IP20
- Net weight 206 g
- Material casing: PA V0
- Colour: grey
- Conductor cross-section flexible max.: 2.5 mm²
- Conductor cross-section flexible min.: 0.2 mm²
- Conductor cross-section AWG max. 12
- Conductor cross-section AWG min.: 24
- Number of ports: 1
- Connection type: COMBICON||COMBICON plug-in screw terminal
- Mounting position: On horizontal mounting rail NS 35 according to EN 60715
- Pollution level: 2
- Overvoltage category II
- Conductor cross-section rigid max.: 2.5 mm²
- Conductor cross-section rigid min.: 0.2 mm²
- Connection method: Screw connection
- Data rate 31.25 kBit/s
- Product type
I/O module
- Interfaces
Modbus-RTU
- Type
GW PL PA/MODBUS
- Operating voltage
30 V DC
- Max. operating temperature
+85 °C
- Min. operating temperature
-40 °C
- Operating temperature
-40 up to +85 °C
- Dim
(W x H) 22.5 mm x 99 mm
- Max. current consumption
34 mA
- Height
99 mm
- Width
22.5 mm
- Manufacturer part #
2316364
- Interfaces
Serial
PROFIBUS PA
Modbus/RTU
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2209703 Phoenix Contact 2316364 GW PL PA/MODBUS I/O module Modbus-RTU 30 V DC 1 pc(s)
Datasheet 2209703 Phoenix Contact 2316364 GW PL PA/MODBUS I/O module Modbus-RTU 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2209703 Phoenix Contact 2316364 GW PL PA/MODBUS I/O module Modbus-RTU 30 V DC 1 pc(s)
Description
Modbus/RTU to PROFIBUS PA protocol converter
