Phoenix Contact 2403335 SOL-SC-4ST-0-DC-1MPPT-1011 Generator junction box

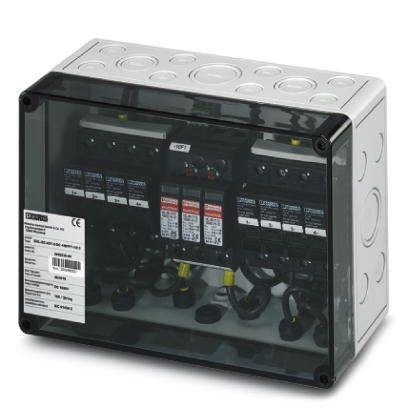

An electrical distribution enclosure with multiple switches and cable connections. A label with technical specifications is visible.

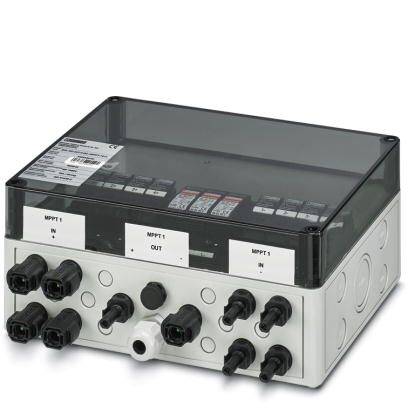

An electrical distribution board with multiple connections and fuses, labelled 'MPPT1'.

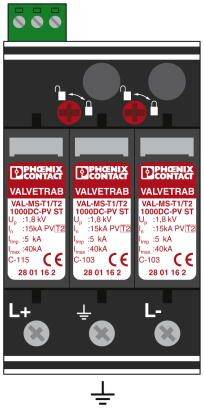

Figure of a surge protection device by the brand 'Phoenix Contact' with the designation 'VALVETRAB', used for overvoltage protection in photovoltaic systems.

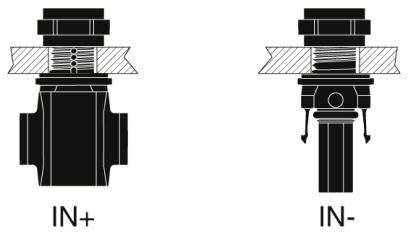

'IN+' and 'IN-': Technical drawing of two valves with markings for the inlet and outlet of fluidic systems.
Phoenix Contact 2403335 SOL-SC-4ST-0-DC-1MPPT-1011 Generator junction box-4

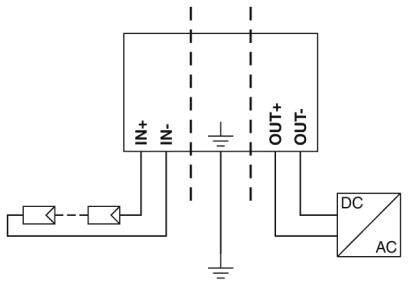

Circuit diagram shows a rectifier with inputs 'IN+' and 'IN-', outputs 'OUT+' and 'OUT-', transformer and earth contact.

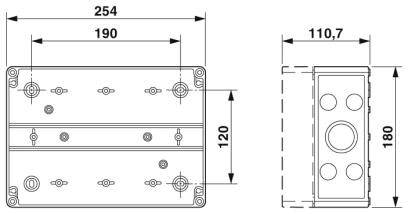

Technical drawing of a rectangular device with dimensions: Width 254 mm, Depth 110.7 mm, Height 180 mm.
Two technical drawings of valves. On the left, an external threaded valve labelled 'OUT+', on the right, an internal threaded valve labelled 'OUT-'.
1/8
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • IP65 rating
  • Ambient temperature (operation): -20 °C - +55 °C.
  • Cover/door material: Polycarbonate (transparent)
  • Number of string inputs: 4
  • Current per string: 10 A.
  • Number of outputs: 1 (per MPP tracker)
  • Number of MPP trackers supported: 1
  • Type of cable entry: SUNCLIX
  • Cable cross-section String input: 2.5 mm² - 6 mm²
  • Cable cross-section output: 2.5 mm² - 6 mm²
Product type

Generator junction box

Dim

(W x H x D) 254 x 180 x 111 mm

Content

1 pc(s)

Width

254 mm

Height

180 mm

Depth

111 mm

System voltage

1000 V

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2209741 Phoenix Contact 2403335 SOL-SC-4ST-0-DC-1MPPT-1011 Generator junction box

Datasheet 2209741 Phoenix Contact 2403335 SOL-SC-4ST-0-DC-1MPPT-1011 Generator junction box

User & Safety Instructions

User & Safety Instructions 2209741 Phoenix Contact 2403335 SOL-SC-4ST-0-DC-1MPPT-1011 Generator junction box

Description

Standard-compliant switching device combination thanks to the application of DIN EN 61439.
