Name: Phoenix Contact 2702540 FL WLAN 2101 Wi-Fi access point 2.4 GHz, 5 GHz
Brand: Phoenix Contact
SKU: 2209859

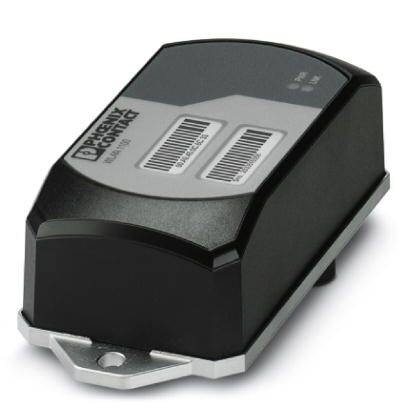

Black, rectangular electronic device with two barcode stickers. Manufacturer name 'Phoenix Contact' is visible.

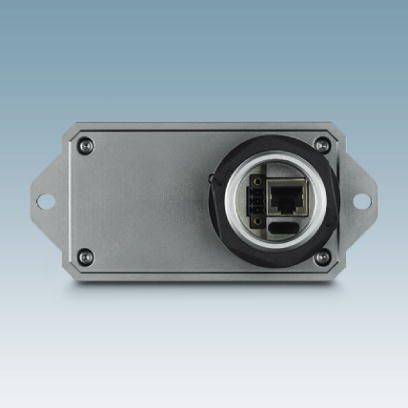

A rectangular grey device with a black cable entry point and an RJ45 port in the centre, against a blue background.

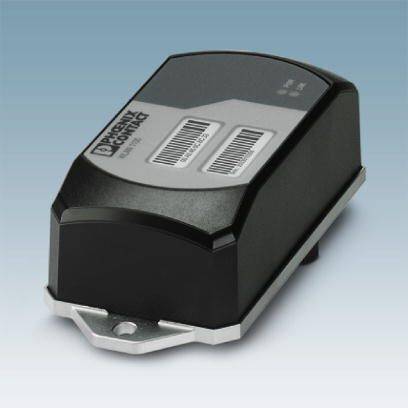

Electronic device in a robust housing with two barcodes and a manufacturer's name on the top surface. Designed for industrial applications.

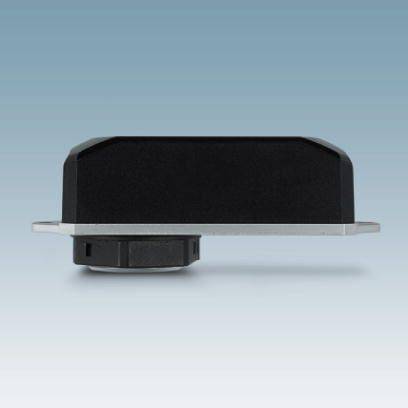

A rectangular electronic device with a black front and metallic frame against a blue background.

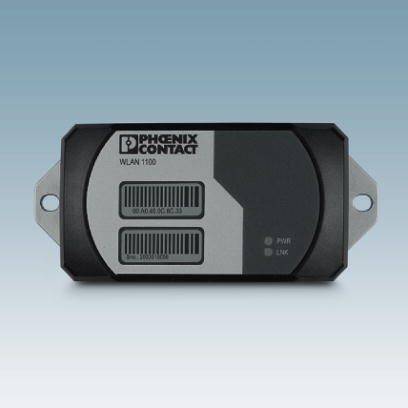

A rectangular device with the inscription 'PHOENIX CONTACT WLAN 1100', two ventilation slots, LED indicators for 'PWR' and 'Link'.

1/5

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

PROTECTION CLASS IP65, IP66, IP67, IP68
Ambient temperature (operating): -40 °C - +60 °C.
Ambient temperature (storage/transport): -40 °C - +85 °C.
Transmission power max. 20 dBm (EIRP)
Operating modes: Access point / client adapter / repeater

Product type: Wi-Fi access point

Type: FL WLAN 2101

Wi-Fi standard: IEEE802.11a
IEEE802.11b
IEEE802.11g
IEEE802.11n

Wi-Fi frequency band: 2.4 GHz
5 GHz

Wi-Fi speed 2.4 GHz: 300 MBit/s

Wi-Fi speed 5 GHz: 300 MBit/s

LAN data transfer rate: 10 / 100 MBit/s

Interfaces: RJ45

No. of LAN ports: 1 x

Safety: 802.11i
WPA PSK (preshared key)
WPA2
AES
TKIP
MAC filter
Supports 802.1x / Radius

Power supply (LOV): via DC in

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2209859 Phoenix Contact 2702540 FL WLAN 2101 Wi-Fi access point 2.4 GHz, 5 GHz

User & Safety Instructions

User & Safety Instructions 2209859 Phoenix Contact 2702540 FL WLAN 2101 Wi-Fi access point 2.4 GHz, 5 GHz

Description

WLAN access point, client for USA and Canada, with two internal antennas for single hole mounting, IP66/68, WLAN 802.11 a, b, g, n, frequency: 2.4 GHz, 5 GHz, connections: COMBICON 9 ... 32 V DC, RJ45: For LAN, Web, http/https, CLI

This text is machine translated.
