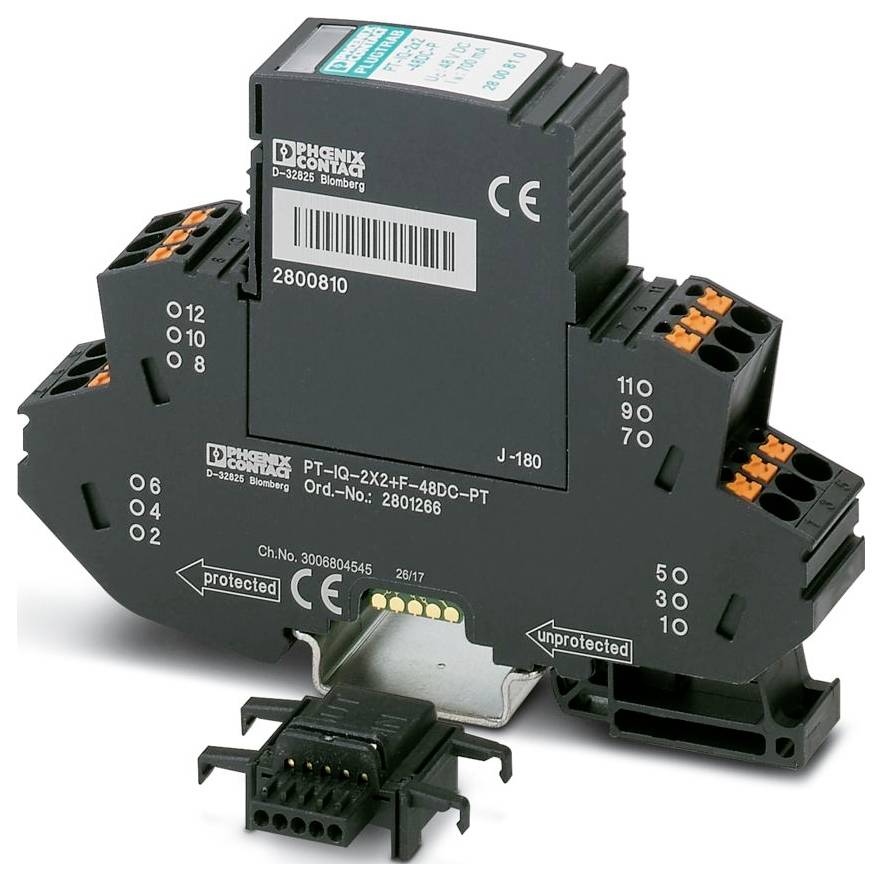

Phoenix Contact 2801266 PT-IQ-2X2+F-48DC-PT Surge protection device 20 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: PLUGTRAB IQ
- IEC TEST CLASS C1;C2;C3;D1
- Model: Two-part rail module can be plugged
- Message Surge protection defective: Optical, multi-stage
- NOMINAL VOLTAGE 48 V DC
- Push-in connection
- Conductor cross-section flexible: 0.2 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12
- Width 17.7 mm
- Height: 109.3 mm
- Depth: 77.5 mm (including mounting rail 7.5 mm)
- Division unit 1 TE
- Colour: Black (RAL 9005);black (RAL 9005)
- Flammability class according to UL 94 V-0
- Material housing PA 6.6
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Direction of action: Line & Line signal Ground/Shield & optional signal Ground/Shield-Earth Ground
- Maximum continuous voltage UC: 53 V DC;37 V AC
- Rated current 300 mA
- Operating current IC at UC ≤ 5 µA (per system)
- Earth current IPE ≤ 1 µA
- Total leakage surge current ITtotal (8/20) µs 20 kA
- Protection level Up (wire): ≤ 100 V (C1 - 1 kV / 500 A);≤ 150 V (C2 - 10 kV / 5 kA);≤ 90 V (C3 - 25 A);≤ 95 V (C3 - 100 A)
- Protection level Up (wire-earth): ≤ 900 V (C1 - 1 kV / 500 a);≤ 1300 V (C2 - 10 kV / 5 kA);≤ 1000 V (C3 - 25 a);≤ 1300 V (C3 - 100 a)
- Capacity (wire-wire): Typ. 1.5 nF
- Resistance per path: 1.2 Ω ±5 %
- Required maximum backup fuse: 315 mA (FF)
- C1 - 1 kV / 500 A; C2 - 10 kV / 5 kA; C2 - 10 kA; C3 - 100 A; D1 - 2.5 kA
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 70 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m (amsl)
- Standards/regulations EN 61000-6-2
- Note: 2005
- Mounting type: Rail: 35 mm
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Conductor pairs per module: 2
- Nominal impulse surge current In (8/20) µs (wire-ground): 10 kA
- Impulse leakage surge current Iimp (10/350) µs (wire-ground) 2.5 kA
- Response time TA (wire-earth): ≤ 100 ns
- General: General
- Protection level Up static (wire-earth): ≤ 130 V (C2 - 10 kV / 5 kA);≤ 60 V (C3 - 25 A)
- Impulse reset time (wire-earth): ≤ 30 ms
- Nominal suppression current In (8/20) µs (wire-wire) 10 kA
- Response time TA (wire-wire): ≤ 1 ns
- AE insertion loss, sym.: Typ. 0.3 dB (≤ 450 kHz / 150 Ω)
- Cut-off frequency FG (3 dB), balanced In the 150 Ω system: Typ. 1.9 MHz
- C1 - 1 kV / 500 A; C2 - 100 kV / 5 kA; C2 - 10 kA; C3 - 10 A
- Impulse reset time (wire): ≤ 300 ms
- Protection level Up (core signal earthing): ≤ 600 V (C1 - 1 kV / 500 A);≤ 750 V (C2 - 10 kV / 5 kA);≤ 700 V (C3 - 25 A);≤ 800 V (C3 - 100 A)
- Product type
Surge protection device
- Leakage current
20 kA
- Type
Mounting rail module can be plugged in two parts
IP20
- Manufacturer part #
2801266
- Dim
(W x H x D) 17.7 x 109.3 x 77.5 mm
- Width
17.7 mm
- Height
109.3 mm
- Depth
77.5 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579439 Phoenix Contact 2801266 PT-IQ-2X2+F-48DC-PT Surge protection device 20 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579439 Phoenix Contact 2801266 PT-IQ-2X2+F-48DC-PT Surge protection device 20 kA 1 pc(s)
Description
Surge protection, comprising of protection plug and base element, with integrated multi-stage status display at the module for two 2-wired signal circuits operated free of earthing potential. Indirect earthing via gas discharge valve. Can be used in safety-related circuits up to SIL 3.
