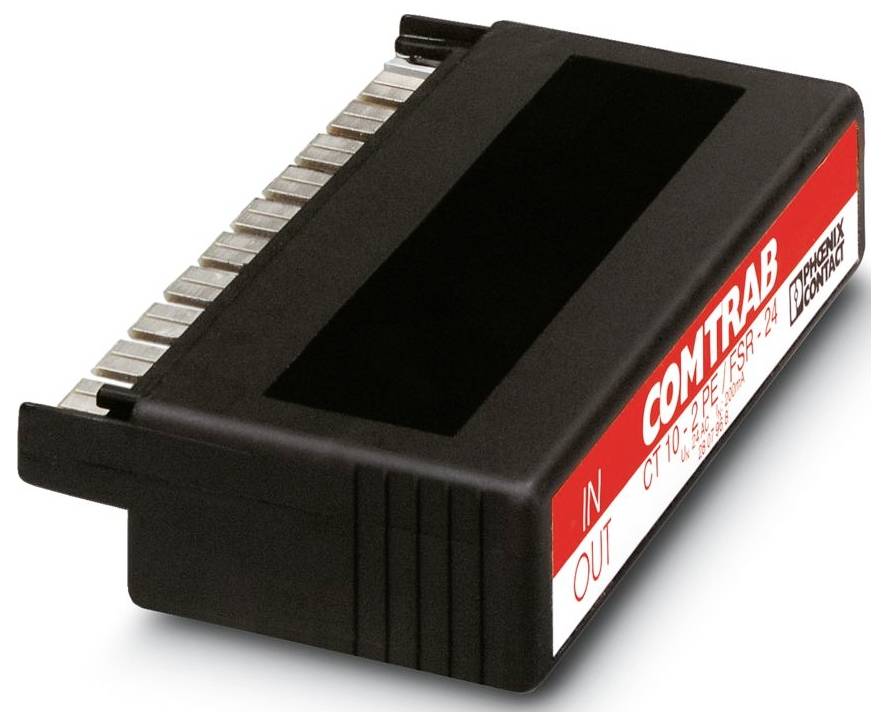

Image similar
Phoenix Contact 2807968 CT 10-2PE/FSR-24 Surge protection plug Piece 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: COMTRAB
- IEC TEST CLASS C1;C2;C3;D1
- LSA-PLUS module
- Message Surge Protection Faulty: None
- NOMINAL VOLTAGE 24 V DC
- Connection type: Plugs into COMTRAB-TERMIBLOCK and LSA-PLUS separation and switching blocks
- Width 111 mm
- Height: 22 mm
- Depth: 68.5 mm
- Colour: Black (RAL 9005)
- Flammability class according to UL 94: V0
- Material: housing: PBT
- Mechanical Data: Mechanical Data
- Open side wall: No.
- Direction of action: Line-Line & Line-Earth Ground
- Maximum continuous voltage UC: 40 V DC;28 V AC
- Rated current 200 mA (25 °C)
- Operating current IC at UC ≤ 5 µA (a-b)
- Earth conductor current IPE ≤ 1 µA (per path)
- Total leakage surge current ITtotal (8/20) µs 10 kA
- Output voltage limitation at 1 KV/µs (wire-earth) static: ≤ 650 V
- Residual voltage at In (wire-wire): ≤ 55 V
- Capacity (wire): 1.1 nF (f=1 MHz / VR = 0V)
- Capacity (wire-earth) 1 pF (typical)
- Resistance per path: 10 Ω ±10 %
- Required maximum backup fuse: 200 mA
- C1 - 1 kV / 500 A; C2 - 2.5 kV / 5 kA; C3 - 100 A; D1 - 10 kA
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 75 °C
- Standards/regulations: IEC 61643-21
- Note: 2000
- Mounting type: On CT-TERMIBLOCK and LSA-PLUS separation strip
- Conductor pairs per module: 10
- Nominal impulse surge current In (8/20) µs (wire-ground): 5 kA
- Output voltage limitation at 1 KV/µs (wire-earth) peak: ≤ 650 V
- Response time TA (wire-earth): ≤ 100 ns
- Air and creepage distances: Air and creepage distances
- Nominal suppression current In (8/20) µs (wire-wire) 5 kA
- Response time TA (wire-wire): ≤ 1 ns
- Insertion loss AE, bal.: 1.5 dB (typ. Up to 2 MHz / 50 Ω);0.6 dB (type. Up to 1 MHz / 150 Ω);0.2 dB (type. Up to 100 kHz / 600 Ω)
- Cut-off frequency FG (3 dB), balanced In the 150 Ω system: 4 MHz (typical)
- Surge current (core) C1 - 1 kV / 500 A; C2 - 10 kV / 5 kA; C3 - 100 A
- Cut-off frequency FG (3 dB), balanced In the 50 Ω system: 7 MHz (typical)
- Discharge surge current Imax (8/20) µs Maximum (wire wire): 5 kA
- Discharge surge current Imax (8/20) µs Maximum (wire-earth): 5 kA
- Output voltage limitation at 1 KV/µs (wire-wire) peak: ≤ 95 V
- Output voltage limitation at 1 KV/µs (wire-wire) static: ≤ 60 V
- Standards Specification Information technology: Standards Specification Information technology
- Surge arrester can be tested with CHECKMASTER software version: From SW-REV. 1.00
- Cut-off frequency FG (3 dB), balanced 600 Ω system: 900 kHz (typical)
- Product type
Surge protection plug
- Nominal voltage
24 V DC
- Type
LSA-PLUS module
IP20
- Manufacturer part #
2807968
- Dim
(W x H x D) 111 x 22 x 68.5 mm
- Width
111 mm
- Height
22 mm
- Depth
68.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3579483 Phoenix Contact 2807968 CT 10-2PE/FSR-24 Surge protection plug Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3579483 Phoenix Contact 2807968 CT 10-2PE/FSR-24 Surge protection plug Piece 1 pc(s)
Description
LSA-PLUS plug (COMTRAB CT 10) with overvoltage protection/fine insulation and uncoupling resistance for 10 earth-potential free operated signal circuits. Nominal voltage 24 V DC Design:10 double wires
