Name: Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2141026

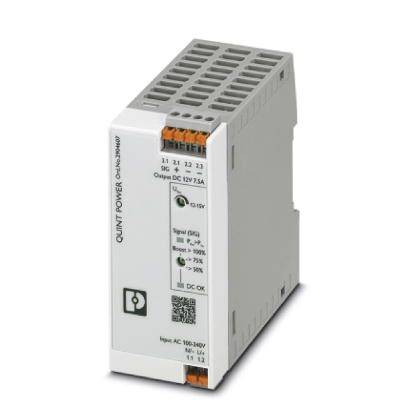

A white QUINT POWER power supply unit with the label 'Output: DC 12V 75A'. It has multiple input and output connections on the top.

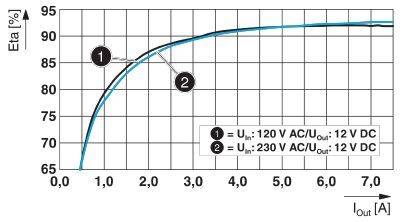

Diagram of an efficiency curve showing performance at two input voltages: 120 V and 230 V AC to 12 V DC, with higher efficiency at 230 V.

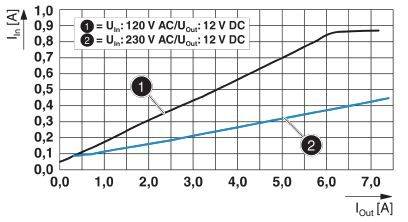

Diagram shows the relationship between input and output current for two voltages: (1) 120 V AC/12 V DC, (2) 230 V AC/12 V DC.

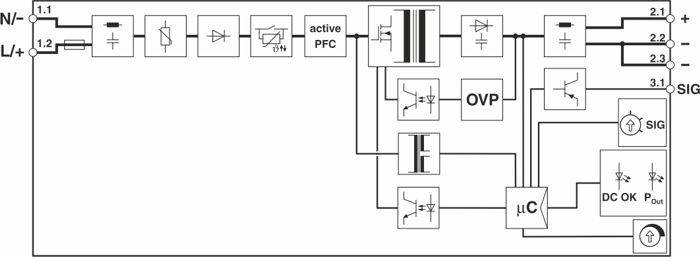

'Block diagram of a power supply unit: Shows input, active PFC, over/under voltage protection (OVP/UVP), microcontroller (µC), and outputs.'

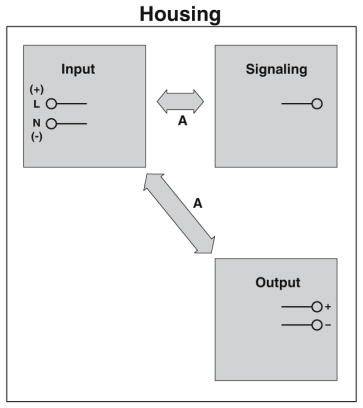

'Schematic representation of an electrical system: Input, signalling, output. Double arrows indicate connections, marked with A.'

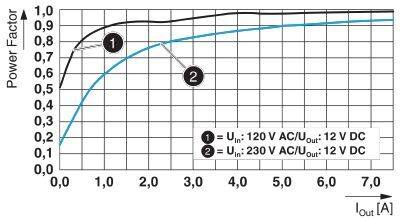

'Graph of Power Factor Curve: Shows the power factor against output current for two input alternating voltages (120 V and 230 V).'

1/6

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Dielectric strength 300 V/AC 60 s.
Wire stripping length: 10 mm
CURRENT CONSUMPTION 1 A (100 V/AC), 0.85 A (120 V/AC), 0.46 A (230 V/AC), 0.44 A (240 V/AC)
Nominal power consumption 96.3 VA

Nominal input voltage: AC 100 V - 240 V; DC 140 V - 300 V

Product type: Rail mounted PSU (DIN)

Min. input voltage: 100 V AC

Output voltage: 12 V DC

Input voltage: 100 V/AC - 240 V AC

Input voltage (max.): 240 V AC

Max. output current: 7.5 A

Output current (max.) - rounded: 7.5 A

: 90 W

Output type (power supply units): Adjustable

Phases: 1

Output voltage (nominal): 12 V DC

No. of outputs: 1 x

Connection: Push-in connector

Dim: (L x W x H) 90 x 45 x 106 mm

Weight: 0.3 kg

Output voltage (max.): 12 V DC

Output voltage (min.): 12 V

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2904607

Content: 1 pc(s)

MTBF: 1221000 h

PSU features: Regulated

Width: 45 mm

Height: 106 mm

Length: 90 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/1AC/12DC/7.5/PT

Efficiency: 92.5 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection

Input voltage (max.)

Min. input voltage

Nominal input voltage

Output current (max.) - rounded

Output type (power supply units)

Output voltage

Output voltage (nominal)

Power

Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Item no:2141026

Unavailable

Conrad Electronic

This article

Push-in connector

240 V AC

100 V AC

AC 100 V - 240 V; DC 140 V - 300 V

7.5 A

Adjustable

12 V DC

90 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2320911 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2209722

Dispatches on Thu 5 Nov

Conrad Electronic

Push-fit screw connector

264 V AC

85 V AC

100-240 V/AC

10 A

Adjustable

24 V DC

24 V

240 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Phoenix Contact 2902646 Rail mounted PSU (DIN) 10 A 50 W Content 1 pc(s)

Item no:2225461

Unavailable

Conrad Electronic

Screws

264 V AC

85 V AC

100-240 V/AC

10 A

5 V DC

50 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902994 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 24 V 3.75 A 90 W Content 1 pc(s)

Item no:2225477

Unavailable

Conrad Electronic

Screws

264 V AC

85 V AC

100-240 V/AC

3.75 A

Fixed voltage

24 V DC

24 V

90 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2902995 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 48 V 1.25 A 60 W Content 1 pc(s)

Item no:2140996

Unavailable

Conrad Electronic

Screws

264 V AC

85 V AC

100-240 V/AC

1.25 A

Fixed voltage

48 V DC

48 V

60 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903002 Rail mounted PSU (DIN) Consumption (standby) 0.3 W 15 V 6.67 A 100 W Content 1 pc(s)

Item no:2141057

Unavailable

Conrad Electronic

Screws

264 V AC

85 V AC

100-240 V/AC

6.67 A

Fixed voltage

15 V DC

15 V

100 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903144 Rail mounted PSU (DIN) 24 V 5 A 120 W Content 1 pc(s)

Item no:2225478

Unavailable

Conrad Electronic

Push-in connector

240 V AC

100 V AC

100-240 V/AC

5 A

Adjustable

24 V DC

24 V

120 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903145 Rail mounted PSU (DIN) 24 V 10 A 240 W Content 1 pc(s)

Item no:2225479

Unavailable

Conrad Electronic

Push-in connector

240 V AC

100 V AC

100-240 V/AC

10 A

Adjustable

24 V DC

24 V

240 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903147 Rail mounted PSU (DIN) 24 V 3 A 72 W Content 1 pc(s)

Item no:2225480

Unavailable

Conrad Electronic

Push-in connector

240 V AC

100 V AC

100-240 V/AC

3 A

Adjustable

24 V DC

24 V

72 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2903156 Rail mounted PSU (DIN) 40 A 960 W Content 1 pc(s)

Item no:2225481

Unavailable

Conrad Electronic

Push-in connector

500 V AC

400 V AC

400 - 500 V/AC

40 A

Adjustable

24 V DC

960 W

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2141026 Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141026 Phoenix Contact 2904607 Rail mounted PSU (DIN) 12 V DC 7.5 A 90 W No. of outputs:1 x Content 1 pc(s)

Description

Primary switched power supply, QUIN POWER, push-in connection, rail mounting, input: 1-phase, output: 12 V DC / 7.5 A.

This text is machine translated.

Description

Primary switched power supply, QUIN POWER, push-in connection, rail mounting, input: 1-phase, output: 12 V DC / 7.5 A.

This text is machine translated.
