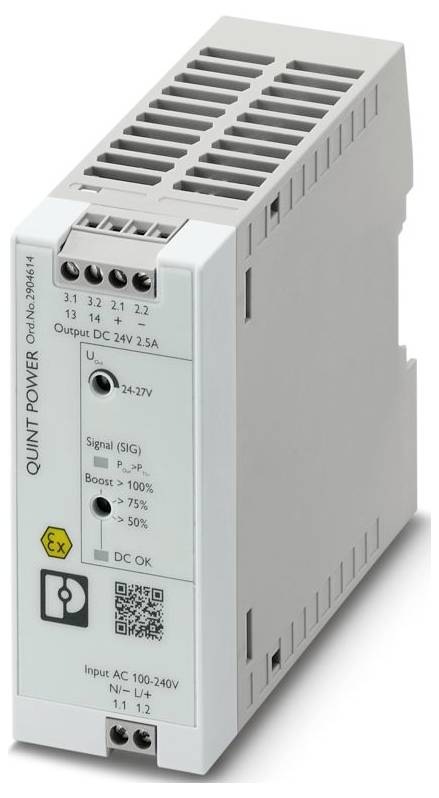

Phoenix Contact 2904614 Power supply unit 24 V DC 2.5 A 69 VA
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Power Supply
- Output 24 V DC / 2.5 A
- Power 69 VA
- Screws
Technical specifications
- Product family: QUINT Power
- Connection type: screw terminals.
- Width 40 mm
- Height: 99 mm
- Depth: 114 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C DERATING 2.5 %/K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 61000-4-18
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Vibration (operation): 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (In accordance with DNV GL Class C)
- Stripped length: 8 mm
- Conductor cross-section flexible min.: 0.14 mm²
- Conductor cross-section flexible max.: 2.5 mm²
- Conductor cross-section rigid min.: 0.14 mm²
- Conductor cross-section rigid max. 2.5 mm²
- Tightening torque min. 0.5 Nm
- ATEX
- IECEx: IECEx
- Frequency range: 50 Hz ... 60 Hz
- CB scheme (IEC 61010-1, IEC 61010-2-201)
- Protection class: II
- Frequency: 60 Hz
- Rated input voltage range: 100 V AC ... 240 V/AC
- Input voltage range: 110 V DC ... 250 V DC -20 % ... +40 %
- Voltage resistance max. 300 V AC 30 s
- Switch-on current impulse: Typical 10 A at 25 °C
- Switch-on current impulse integral (I2t): Typ. 0.1 A2S
- Switch-on current surge limitation 10 A.
- Mains failure bridging time: Typ. 31 ms (120 V AC);typ. 31 ms (230 V AC)
- CURRENT CONSUMPTION 0.75 A (110 V DC);0.33 A (250 V DC)
- Nominal power intake 69 VA
- Switch-on time typical: 500 ms
- Input fuse 4 A (slow-blow, internal)
- Selection of suitable fuse for the input protection: 6 A ... 16 A (characteristic B, C, D, K or comparable)
- Efficiency: Type. 93 % (120 V AC);typ. 94 % (230 V AC)
- Rated output voltage 24 V DC
- Setting range of output voltage (USet): 24 V DC ... 27 V DC (power constant)
- Nominal output current (IN): 2.5 A.
- Static boost (ISTAT.Boost): 3.125 A (≤ 40 °C)
- Dynamic Boost (IDyn.Boost): 4 A (≤ 60 °C (on ≤ 5 s/off ≥ 5 s))
- Short-circuit-proof: Yes
- Idle: Yes
- Regenerative resistance ≤ 32 V DC
- Protection against overvoltage at output (OVP): ≤ 30 V DC ±2 %
- Remaining ripple: < 40 mV SS (at nominal values)
- Rise time: 50 ms (Uout = 10 % ... 90 %
- No-load power Maximum < 1 W (120 V AC);< 1 W (230 V AC)
- Load power rating max.: < 5 W (120 V AC);< 4 W (230 V AC)
- Safety (secondary side): Electronic
- Input:2 kV (symmetric);4 kV (asymmetric)
- Output:1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
- Signal: 4 kV (X - asymmetric)
- LED signaling types
- Default:24 V DC 30 mA 24 V DC for Uout > 0.9 x usset
- Digital 0 V DC 24 V DC 30 mA
- Number of phases: 1
- Insulation voltage input/output: 4 kV AC (type test);3 kV AC (routine test)
- Switching frequency: 90.00 kHz ... 110.00 kHz (auxiliary converter stage);50.00 kHz ... 195.00 kHz (main converter stage);60.00 kHz ... 360.00 kHz (PFC level)
- MTBF (IEC 61709, SN 29500): > 2000000 h (25 °C);> 1161000 h (40 °C);> 514000 h (60 °C)
- Service life (electrolytic capacitors): Life expectancy (electrolytic capacitors)
- Current: 2.5 A
- Temperature 25 °C.
- Time 980000 h
- Additional text: Testing degree of accuracy 2
- Mounting dimensions
- Right/left (active) mounting distance: 15 mm / 15 mm (pout ≥50 %)
- Right/left mounting distance (passive) 5 mm / 5 mm (pout ≥50 %)
- Top/bottom (active) mounting distance: 30 mm / 30 mm (pout ≥50 %)
- Top/bottom (passive) mounting distance: 30 mm / 30 mm (pout ≥50 %)
- Protective coating: Yes
- Flammability class to UL 94 (housing / terminals): V0
- Housing material: Plastic
- Design of the hood: Polycarbonate
- Operating height: ≤ 5000 m (> 2000 m, observe derating)
- Climate class 3K3 (according to EN 60721)
- Max. ass. Humidity (operating): ≤ 95% (at 25°C, no condensation)
- Shock: 18 ms, 30 g, per direction of room (according to IEC 60068-2-27)
- Temp code: T4 (-25 ... +70 °C | > 60 °C, DERATING 2.5 %/K)
- EN 61010-1: II (≤ 5000 m)
- EN 62477-1: III (≤ 2000 m)
- UL
- SIQ: SIQ
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Line-guided interference emission: Line-guided interference emission
- Interference radiation: Interference radiation
- Discharge of static electricity: Discharge of static electricity
- Contact discharge 8 kV (test efficiency 4)
- 15 kV (test efficiency 4)
- Note: Criterion B
- Electromagnetic HF-field: Electromagnetic HF-field
- Test field strength 1000 A/m
- Fast Transients (Burst): Fast Transients (Burst)
- Surge voltage load (SURGE): Surge current load (SURGE)
- Conducted interference: Conducted interference
- Input/output/signal: Asymmetrical
- Voltage:1 kV (symmetric);2.5 kV (asymmetric);1 kV (symmetric)
- Magnetic field with energy-technical frequency: Magnetic field with energy-technical frequency
- Voltage dips: Voltage dips
- Voltage dip 0%
- Pulse-shaped magnetic field: Pulse-shaped magnetic field
- Asymmetric conductive interference variables: Asymmetric conductive interference variables
- Test level 1: 16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (test efficiency 3)
- Test level 2: 16.67 Hz 50 Hz 60 Hz (Test efficiency 2)
- Dampened oscillating shaft: Dampened vibrating shaft
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Criterion C: Intermittent impairment of the operating behavior that the device itself corrects or can be restored by operating the controls.
- Surrounding temperature (startup type tested): -40 °C
- TRACK APPLICATIONS: EN 50121-3-2 ;EN 50121 -4;EN 50121 -5;IEC 62236-3-2 ;IEC 62236-4;IEC 62236-5
- AC operation: AC operation
- National mains voltage typical: 120 V AC;230 V AC
- Voltage type of supply voltage: DC
- Frequency range (FN): 50 Hz ... 60 Hz ±10 %;16.7 Hz (according to EN 50163)
- Protective circuit: Transient overvoltage protection | varistor
- Leakage current against PE: < 0.25 mA (264 V AC, 60 Hz);< 0.22 mA
- DC-operation: DC-operation
- Control deviation: < 0.5 % (load change static 10 % ... 90 < %); 2 % (load change dynamic 10 % ... 90 < %, (10 Hz)); 0.25 % (input voltage variation ±10 %)
- POWER OUTPUT 60 W;75 W;96 W.
- Crest factor: Typ. 1.8 (120 V AC);typ. 1.84 (230 V/ AC)
- Wire cross section AWG min 26
- Conductor cross-section AWG max. 14
- Tightening torque max. 0.6 Nm
- Signal output: Signal output
- Pout: > PThr (LED is yellow, output power > PThr, depending on the position of the rotary selection switch)
- Uout: > 0.9 x USet (LED lights up green);< 0.9 x USet (LED flashes green)
- Environmental Protection Directive: RoHS Directive 2011/65/EU;WEEE;Reach
- Standard - limitation of mains harmonic currents EN 61000-3-2
- Standard - safety extra-low voltage: IEC 61010-1 (SELV);IEC 61010-2-201 (PELV)
- Standard - Safe isolation: IEC 61558-2-16;IEC 61010-2-201
- Standard - Safety for measurement, control, regulation and laboratory devices: IEC 61010-1;IEC 61010-2-201 (SELV)
- Standard - transformer safety EN 61558-2-16
- UL approvals: UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (hazardous location)
- EMC requirements for power supply: IEC 61850-3 (G,H);EN 61000-6-5 (switchgear)
- Harmonic currents: Harmonic currents
- Flicker: Flicker
- Number of periods: 0.5 / 1 / 5 / 50 periods
- Dampened sine vibrations (ring wave): Dampened sine-wave oscillations (ring wave)
- Signal (configurable): Signal (configurable)
- Single-conductor/flexible clamping point with wire-end sleeve min.: 0.25 mm²
- Single-conductor/flexible clamping point with wire-end sleeve max.: 2.5 mm²
- Installation distance right/left (active, passive): 0 mm / 0 mm (pout ≤50 %)
- Top/bottom mounting distance (active, passive): 30 mm / 30 mm (pout ≤50 %)
- Design of the casing: Polycarbonate
- UKEX
- Emitted interference: Interference acc . To EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial sector)
- Immunity: Immunity to EN 61000-6-1-6-2 (residential area), EN 61000-6-2 -6-2 (industrial area) and EN 61000-6-5 -2-4 (switching systems), IEC/EN 61850-3-6-4 (power supply)
- Product type
Power supply unit
- Input voltage (max.)
240 V AC
250 V DC
- Max. output current
2.5 A
- Output current (max.) - rounded
2.5 A
- Min. input voltage
100 V AC
110 V DC
- Dim
(L x W x H) 114 x 40 x 99 mm
- Output voltage (max.)
24 V DC
- Connection
Screws
69 VA
IP20
- Protection class
II
- Operating temperature (max.)
70 °C
- Max. operating temperature (derating)
70 °C
- Min. operating temperature (derating)
60 °C
- Operating temperature (min.)
-25 °C
- Operating temperature
-25 °C - 70 °C
- Width
40 mm
- Height
99 mm
- Length
114 mm
- Type
QUINT4-SYS-PS/1AC/24DC/2.5/SC
- Depth
114 mm
- Recess height
99 mm
- UKCA
yes
