Name: Phoenix Contact 2905473 FLT-SEC-P-T1-N/PE-350/100-P Surge protection plug 0.01 mA 1 pc(s)
Brand: Phoenix Contact
SKU: 3579790

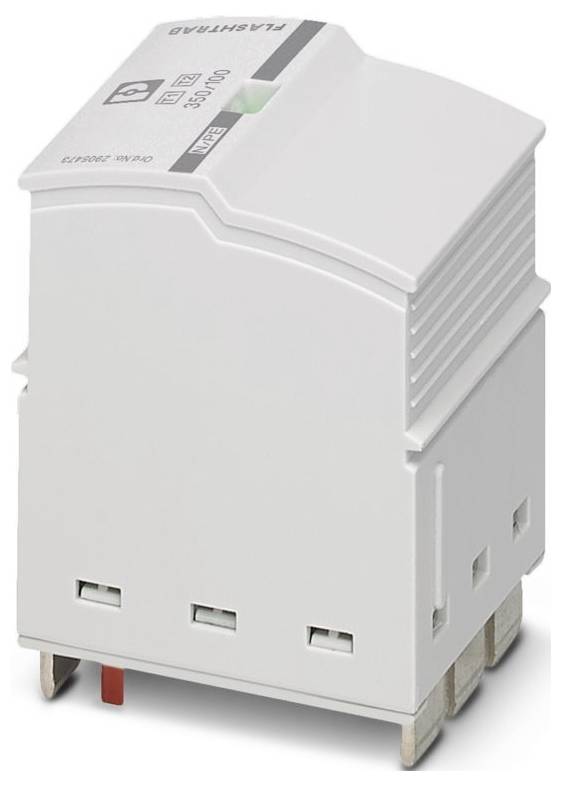

A white electrical device with ventilation slots, labeled 'FLASHSTRAB'. Its front panel includes several small icons and indicators.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Family: SEC Family
IEC TEST CLASS I / II;I;T1 / T2;T1
Plug type
Number of poles: 1
Message Surge Protection Faulty: Optical
NOM. VOLTAGE: 240 V AC (TN - N-PE ONLY);240 V AC (TT - N-PE ONLY)
Connection type: Pluggable
Width 35.5 mm
Height: 46.4 mm
Depth: 59.4 mm
Division unit 2 TE
Colour: Light gray (RAL 7035)
Flammability class according to UL 94 V-0
Material housing: PA 6.6-FR 20 % GF;PBT-FR
Direction of effect N-PE
Highest continuous voltage UC 350 V AC
Earth current IPE ≤ 0.01 mA
Nominal impulse surge current In (8/20) µs: 100 kA
Response time TA ≤ 100 ns
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -40 °C ... 80 °C
Ambient temperature (storage/transport): -40 °C ... 80 °C
Altitude: ≤ 2000 m (amsl)
Standards/regulations EN 61643-11
Note: 2012
Mounting type: On base element
EN TYPE T1 / T2; T1
POWER SUPPLY SYSTEM IEC: TN;TT
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
Nominal frequency FN 50 Hz (60 Hz)
CTI value of material: 600
INSULATION MATERIAL PA6.6-FR 20% GF;PBT-FR
Material group: I
Protective paths N-G
Flash test current (10/350) µs, charge 50 A
Flash test current (10/350) µs, specific energy: 2500 kJ/Ω
Lightning test current (10/350) µs, peak current IIMP: 100 kA
Leakage current erasing capability IFI 100 A (350 V AC)
Protection level Up: ≤ 1.5 kV
Residual voltage Ures: ≤ 1.5 kV (in);≤ 1 kV (at 10 kA);≤ 0.9 kV (at 5 kA);≤ 0.8 kV (at 3 kA)
Impulse contact voltage at 6 kV (1.2/50) µs: ≤ 1.5 kV
TOV behavior at UT: 1200 V AC (200 ms / resistance mode)
Permissible air humidity (operation): 5 % ... 95 %.
Shock (operation): 30g (half-sine / 11 ms / 3x ±X, ±Y, ±Z)
Vibration (operation): 5g (5 - 500 Hz / 2.5 h / X, Y, Z)
UL specifications: UL specifications
Nominal frequency 50/60 Hz
SPD type 1CA
EN 61643-11, EN 61643-11
Nominal leakage surge current In:20 kA
Maximum continuous voltage MCOV 350 V AC
Nominal voltage protection VPR 1200 V
