Phoenix Contact 2906840 TTC-6-MOV-C-120AC-UT-I Surge protection device Piece 1 pc(s)

Switching device by Phoenix Contact, Model T10-C-N/UC-120AC-01-I, for electrical connections, with product information on the surface.

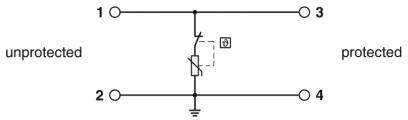

Clear diagram showing an electronic circuit. On the left 'unprotected' and on the right 'protected', with an earthing symbol.

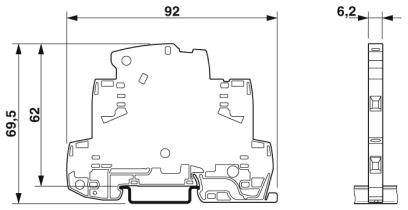

Technical drawing of a component mounting bracket with dimensional units: Width 92 mm, Height 69.5 mm, and Depth 6.2 mm. Front and side view.

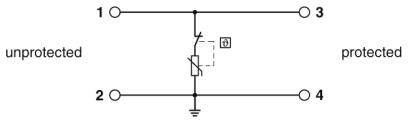

'Electrical Circuit Diagram: A protective diode symbol between terminals 1 and 3 indicates the direction of protection from unprotected to protected.'

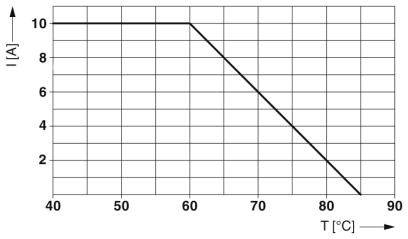

Graph shows the current (I in amperes) as a function of temperature (T in °C). The current remains constant at 10 A up to 60 °C, then linearly decreases to 0 A at 80 °C.
1/5
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Technical specifications

  • Mounting type: Mounting rail 35 mm
  • Material: housing: PBT
  • Flammability class according to UL 94: V-0
  • Design: Mounting rail module one-piece
  • Overvoltage protection fault message: Optical
  • Maximum continuous voltage UC: 150 V DC
  • Protective conductor current IPE: ≤ 100 µA
  • Connection type: screw terminals.
Product type

Surge protection device

Nominal voltage

120 V AC

Operating temperature

-40 °C - +85 °C

IP20

Manufacturer part #

2906840

Factory colour

Traffic grey

Dim

(W x H x D) 92 x 92 x 69.5 mm

Width

92 mm

Height

92 mm

Depth

69.5 mm

Content

1 pc(s)

Packaging type

Piece

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2225668 Phoenix Contact 2906840 TTC-6-MOV-C-120AC-UT-I Surge protection device Piece 1 pc(s)

Datasheet 2225668 Phoenix Contact 2906840 TTC-6-MOV-C-120AC-UT-I Surge protection device Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2225668 Phoenix Contact 2906840 TTC-6-MOV-C-120AC-UT-I Surge protection device Piece 1 pc(s)

Description

Space-saving installation thanks to a narrow width of 6.2 mm. Signaling without additional power supply thanks to mechanical status display. Optional telecommunications module monitors up to 40 items without additional wiring. Safe behavior in the event of overload due to integrated disconnecting device. Surge protection through varistor.
