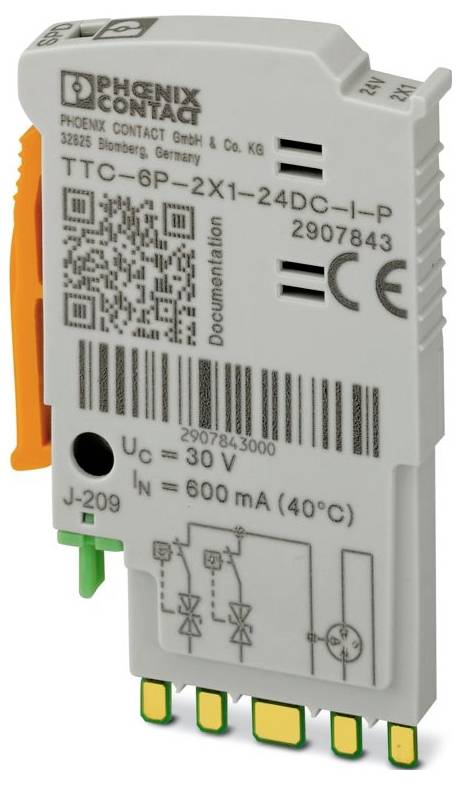

Image similar
Phoenix Contact 2907843 TTC-6P-2X1-24DC-I-P Surge protection plug 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: TERMITRAB complete
- Plug type
- NOMINAL VOLTAGE 24 V DC
- Connection type: Pluggable
- Width 6.2 mm +0.1 mm
- Height: 39 mm
- Depth: 60.3 mm
- Colour: Light gray (RAL 7035);gray (RAL 7042)
- Flammability class according to UL 94 V-0
- Material: housing: PBT
- Highest continuous voltage UC 30 V DC
- Rated current 600 mA (56 °C)
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -40 °C ... 85 °C
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Altitude: ≤ 4000 m (amsl)
- Standards/regulations: IEC 61643-21
- Note: 2000 + Corrigendum 2001 + A1:2008, modified + A2:2012
- Mounting type: On base element
- Insulation properties: Insulation properties
- Over voltage category III
- Pollution level: 2
- Insulating material PBT
- Permissible air humidity (operation): 5 % ... 95 %.
- EN 61643-21, EN 61643-21
- Product type
Surge protection plug
- Nominal voltage
24 V DC
- Type
Connector
IP20
- Manufacturer part #
2907843
- Dim
(W x H x D) 6.2 x 39 x 60.3 mm
- Width
6.2 mm
- Height
39 mm
- Depth
60.3 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580094 Phoenix Contact 2907843 TTC-6P-2X1-24DC-I-P Surge protection plug 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3580094 Phoenix Contact 2907843 TTC-6P-2X1-24DC-I-P Surge protection plug 1 pc(s)
Description
Overvoltage protection connector with integrated status display on the module for two signal lines with common reference potential. Nominal voltage: 24 V/DC
