Name: Phoenix Contact 2910125 DC/DC converter 24 V DC 5 A No. of outputs:1 x Content 1 pc(s)
Brand: Phoenix Contact
SKU: 2141040

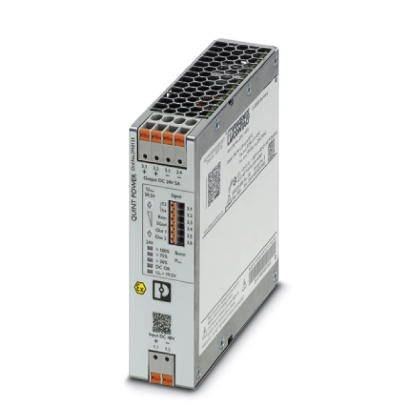

A rectangular, silver-grey switched-mode power supply from Phoenix Contact with orange connections and labels on the front.

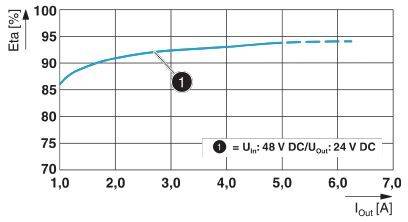

The diagram shows the efficiency (η) [%] of a DC/DC converter with an input and output voltage of 48 V to 24 V. Efficiency rises from 87% to 95% with increasing current [A].

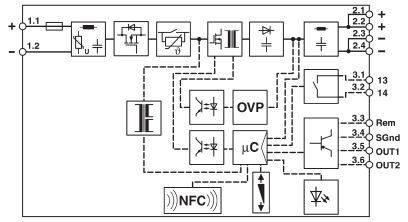

Diagram of an electrical circuit diagram: Shows components such as OVP, microcontroller, NFC symbol, and input and output connections.

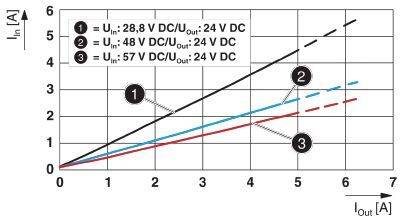

'Diagram shows three linear graphs representing input current I_in [A] as a function of output current I_out [A] at different input voltages. Curve 1: U_in=28.8V, Curve 2: U_in=48V, Curve 3: U_in=57V. All have U_out=24V.'

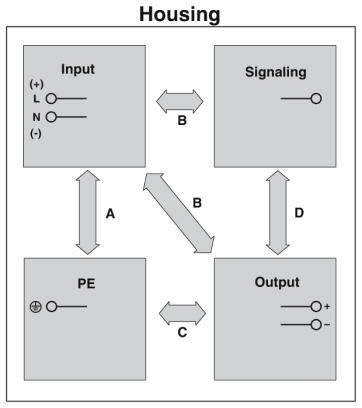

'Diagram shows four main blocks in an enclosure: Input, Signaling, PE and Output. Arrows A to D connect these blocks.'

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Dielectric strength 35 V/DC 60 s.
Wire stripping length: 10 mm
POWER CONSUMPTION 3.3 A (48 V/DC)

Nominal input voltage: 48 V/DC

Product type: DC/DC converter

Min. input voltage: 29 V DC

Output voltage: 24 V DC

Input voltage: 29 V/DC - 57.5 V DC

Input voltage (max.): 57.5 V DC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

Output type (power supply units): Fixed voltage

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Push-in connector

Dim: (L x W x H) 125 x 36 x 130 mm

Weight: 0.6 kg

Output voltage (max.): 24 V DC

Operating temperature (max.): +70 °C

Min. operating temperature (derating): +60 °C

Operating temperature (min.): -25 °C

Manufacturer part #: 2910125

Content: 1 pc(s)

MTBF: 1000000 h

PSU features: DC-to-DC converter

Width: 36 mm

Height: 130 mm

Length: 125 mm

: IP20

Max. temperature: +85 °C

Min. temperature: -40 °C

Type: QUINT4-PS/48DC/24DC/5/PT

Efficiency: 94 %

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Connection

Input voltage (max.)

Min. input voltage

No. of outputs

Nominal input voltage

Output current (max.) - rounded

Output type (power supply units)

Output voltage

Output voltage (nominal)

Phoenix Contact 2910125 DC/DC converter 24 V DC 5 A No. of outputs:1 x Content 1 pc(s)

Item no:2141040

Unavailable

Conrad Electronic

This article

Push-in connector

57.5 V DC

29 V DC

1 x

48 V/DC

5 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2910119 DC/DC converter 5 A 120 W No. of outputs:1 x Content 1 pc(s)

Item no:2141016

Fast track dispatch on Thu 29 Oct

3 Piece(s)Conrad Electronic

Push-in connector

32 V DC

18 V DC

1 x

24 V/DC

5 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 288.48^*

Phoenix Contact 1046800 DC/DC converter 24 V DC 5 A Content 1 pc(s)

Item no:2209025

Unavailable

Conrad Electronic

Screws

32 V DC

18 V DC

24 V/DC

5 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 1046803 DC/DC converter 24 V DC 10 A No. of outputs:1 x Content 1 pc(s)

Item no:2209026

Unavailable

Conrad Electronic

Screws

32 V AC

18 V DC

1 x

24 V/DC

10 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2905007 DC/DC converter 8 A Content 1 pc(s)

Item no:2225620

Unavailable

Conrad Electronic

Push-fit screw connector

18 V DC

9 V DC

12 V/DC

8 A

Fixed voltage

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2905008 DC/DC converter 5 A Content 1 pc(s)

Item no:2225621

Unavailable

Conrad Electronic

Push-fit screw connector

60 V DC

30 V DC

48 V/DC

5 A

Fixed voltage

48 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2905009 DC/DC converter 10 A Content 1 pc(s)

Item no:2225622

Unavailable

Conrad Electronic

Push-fit screw connector

96 V DC

42 V DC

72 V/DC

10 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2905010 DC/DC converter 10 A Content 1 pc(s)

Item no:2225623

Unavailable

Conrad Electronic

Push-fit screw connector

154 V DC

67.2 V DC

10 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2905011 DC/DC converter 10 A 240 VA Content 1 pc(s)

Item no:2225624

Unavailable

Conrad Electronic

Push-fit screw connector

96 V DC

42 V DC

10 A

Fixed voltage

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

Phoenix Contact 2905012 DC/DC converter 24 V 10 A 240 VA No. of outputs:1 x Content 1 pc(s)

Item no:2225625

Unavailable

Conrad Electronic

Push-fit screw connector

154 V DC

67.2 V DC

1 x

10 A

Fixed voltage

24 V DC

24 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

Datasheet

Datasheet 2141040 Phoenix Contact 2910125 DC/DC converter 24 V DC 5 A No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2141040 Phoenix Contact 2910125 DC/DC converter 24 V DC 5 A No. of outputs:1 x Content 1 pc(s)

Description

Primary-switched DC/DC converter, QUIN, rail mounting, SFB Technology (Selective Fuse Breaking), push-in connection, input: 48 V DC, output: 24 V DC / 5 A.

This text is machine translated.

Description

Primary-switched DC/DC converter, QUIN, rail mounting, SFB Technology (Selective Fuse Breaking), push-in connection, input: 48 V DC, output: 24 V DC / 5 A.

This text is machine translated.
