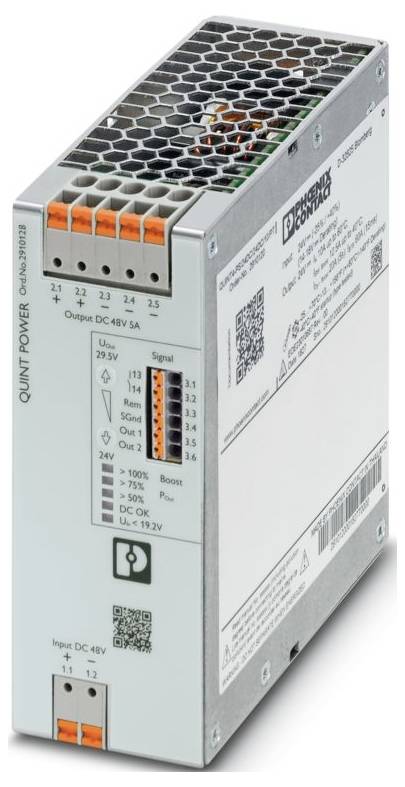

Phoenix Contact 2910128 DC/DC converter 48 V DC 48 V DC 5 A 252 VA Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Product family: QUINT Power
- Push-in connection
- Width 122 mm
- Height: 130 mm
- Depth: 53 mm
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -25 °C ... 70 °C (> 60 °C DERATING 2.5 %/K)
- Ambient temperature (storage/transport): -40 °C ... 85 °C
- Standards/regulations EN 61000-4-10
- Mounting type: Rail mounting
- Insulation properties: Insulation properties
- Overvoltage category: Overvoltage category
- Pollution level: 2
- Vibration (operation): 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (In accordance with DNV GL Class C)
- Stripped length: 8 mm
- Frequency range: 50 Hz ... 60 Hz
- Identification LR
- Protection class: Special with SELV input and output
- Frequency: 300 Hz
- Rated input voltage range 48 V DC
- Input voltage range: 48 V DC -40 % ... +20 %
- Wide-range input: No.
- Voltage strength max. 60 V DC (60 s)
- Switch-on current impulse: Typical 2.3 A
- Switch-on current surge integral (I2t) < 0.1 A2S
- Switch-on current surge limitation 2.3 A.
- Mains failure bridging time: Typ. 17 ms (48 V DC)
- POWER CONSUMPTION 6.8 A (48 V DC)
- Nominal power intake 252 VA
- Switch-on time typical: 300 ms (from SLEEP MODE)
- Switch-on time < 1 seconds
- Input fuse 20 A (slow-blow, internal)
- Selection of suitable fuse for the input protection: 10 A ... 16 A (characteristic B, C, D, K or comparable)
- Efficiency: Type. 95.2 % (48 V DC)
- Output characteristic: U/I Advanced;Smart HICCUP;FUSE MODE
- Rated output voltage 48 V DC
- Setting range of output voltage (USet): 48 V DC ... 56 V DC (> 48 V OUTPUT CONSTANT)
- Nominal output current (IN): 5 A.
- Static Boost (ISTAT.Boost): 6.25 A.
- Dynamic boost (IDyn.Boost) 10 A (5 s)
- Selective Fuse Breaking (ISFB) 30 A (15 ms)
- Magnetic fuse activation: A1 ... A6/B2/C1 ... C2 / Z1 ... Z6
- Short-circuit-proof: Yes
- Idle: Yes
- Output power (PN) 240 W
- Output power (PStat. Boost) 300 W
- Output power (PDyn. Boost) 480 W (5 s)
- Regenerative resistance ≤ 60 V DC
- Protection against overvoltage at output (OVP): ≤ 60 V DC
- Remaining ripple < 50 mV
- Control deviation static: < 3 % (load change static 10 % ... 90 %
- Control deviation dynamic: < 3 % (load change static 10 % ... 90 %
- Control deviation Input voltage change: < 3 % (load change static 10 % ... 90 %
- Rise time: < 100 ms (UOUT (10 % ... 90 %)
- Series switching capability: Yes
- No-load operation Power Maximum < 3 W
- Power loss Nominal load maximum: < 13 W
- POWER LOSS SLEEP MODE < 2 W
- Parallel switching capability: Yes, for redundancy and power increase
- Safety (secondary side): Electronic;thermomagnetic;thermal
- Input: 1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
- Position: 3.x
- Wire connection: Conductor connection
- rigid: 0.2 mm² ... 1 mm²
- flexible: 0.2 mm² ... 1.5 mm².
- Flexible with wire-end sleeve without plastic sleeve: 0.2 mm² ... 1.5 mm².
- Flexible with wire-end sleeve with plastic sleeve: 0.2 mm² ... 0.75 mm²
- Rigid (AWG): 24 ... 16
- Output:1 kV (test efficiency 3 - symmetric);2 kV (test efficiency 3 - asymmetric)
- Signal: 2 kV (test sharpness: 3 – unbalanced)
- LED signaling: LED signaling
- Signalling types: LED, potential-free signal contact, Active signal output Out1 (digital, configurable);Active signal output Out2 (digital, analogue, configurable);Remote contact;Signal earth Snd
- Signal threshold: > 100 % (LED is amber, output power > 240 W);> 75 % (LED is green, output power > 180 W);> 50 % (LED is green, output power > 120 W);> 0.9 x USet (LED is green);< 0.9 x USet (LED flashes green);> 0.8 x UInNom (< LED off); 0.8 x UInNom (LED lights yellow)
- Remote Signal Input (configurable): Remote Signal Input (configurable)
- Terminal identifier 3.4 +
- Function: Signal earthing
- Default: Output voltage
- Signal output Out 1 (configurable): Signal output Out 1 (configurable)
- DIGITAL 24 V DC;1 A;30 V AC;0.5 A
- Signal option: Output current;output power;operating hours;early warning high temperatures;OVP voltage limitation active;UIN input voltage OK
- Signal output Out 2 (configurable): Signal output Out 2 (configurable)
- Analogue: 4 mA ... 20 mA ±5 % (load ≤400 Ω)
- Signal output relay 13/14 (configurable): Signal output relay 13/14 (configurable)
- Switch contact (potential-free): Potential-free
- Signal ground SGnd: Signal ground SGnd
- Reference potential: To OUT1, OUT2, REM
- Number of phases: 1.00
- Insulation voltage input/output: 4 kV DC (type test);2 kV DC (routine test)
- Switching frequency: 190.00 kHz ... 220.00 kHz (auxiliary converter stage);67.00 kHz ... 135.00 kHz (main conversion stage)
- MTBF (IEC 61709, SN 29500): > 1476000 h (25 °C);> 877000 h (40 °C);> 378000 h (60 °C)
- Service life (electrolytic capacitors): Life expectancy (electrolytic capacitors)
- Current 5 A
- Temperature 30 °C.
- Time: 50 ms
- Additional text: Testing degree of accuracy 2
- Article dimensions: Article dimensions
- Part dimensions for alternative mounting: Part dimensions for alternative mounting
- Mounting dimensions
- Right/left (active) mounting distance: 15 mm / 15 mm (≤ 70°C)
- Right/left mounting distance (passive): 0 mm / 0 mm (≤ 70°C)
- Top/bottom (active) mounting distance: 50 mm / 50 mm (≤ 70°C)
- Top/bottom (passive) mounting distance: 50 mm / 50 mm (≤ 70°C)
- Mounting instructions: Modular: PN ≥50 %, horizontal 5 mm, next to active components 15 mm, vertical 50 mm
- Modular: PN <50%, horizontal 0 mm, vertical top 40 mm, vertical bottom 20 mm
- Protective coating: No.
- Flammability class to UL 94 (housing / terminals): V0
- Case material: metal
- Design of the hood: Stainless steel X6Cr17
- Execution of side parts: Aluminium
- Operating height: ≤ 5000 m (> 2000 m, observe derating)
- Climate class 3K22 (according to EN 60721-3-3)
- Max. ass. Humidity (operating): ≤ 95% (at 25°C, no condensation)
- Shock: 18 ms, 30 g, per direction of room (according to IEC 60068-2-27)
- Temp code: T4 (-25 ... +70 °C | > 60 °C, DERATING 2.5 %/K)
- EN 61010-1: II (≤ 5000 m)
- EN 62477-1: III (≤ 5000 m)
- Standard name: Railway applications
- Safety Measuring, control, control and laboratory equipment: Safety of measuring, control, control and laboratory equipment
- Low voltage: Protective extra-low voltage
- Mains voltage dips: Mains voltage dips
- UL
- CSA
- SIQ: SIQ
- Shipbuilding: Shipbuilding
- Electromagnetic compatibility: Conformity to EMC directive 2014/30/EU
- Low Voltage Directive: Conformity to NSR Directive 2014/35/EU
- EMC requirements for emission of interference EN 61000-6-3;EN 61000-6-4
- EMC requirements for immunity EN 61000-6-1;EN 61000-6-2
- EMC requirements for power station: IEC 61850-3;EN 61000-6-5
- Line-guided interference emission: Line-guided interference emission
- Interference radiation: Interference radiation
- DNV GL conductive emission of interference: DNV GL conductive emission of interference
- DNV: Class B
- DNV GL interference radiation: DNV GL interference radiation
- Discharge of static electricity: Discharge of static electricity
- Contact discharge 8 kV (test efficiency 4)
- 15 kV (test efficiency 4)
- Note: Criterion B
- Electromagnetic HF-field: Electromagnetic HF-field
- Test field strength 1000 A/m
- Fast Transients (Burst): Fast Transients (Burst)
- Surge voltage load (SURGE): Surge current load (SURGE)
- Conducted interference: Conducted interference
- Input/output/signal: Asymmetrical
- Voltage: 1 kV
- Magnetic field with energy-technical frequency: Magnetic field with energy-technical frequency
- Voltage dips: Voltage dips
- Voltage dip 0%
- Pulse-shaped magnetic field: Pulse-shaped magnetic field
- Asymmetric conductive interference variables: Asymmetric conductive interference variables
- 100 kHz testing level 1
- Test level 2 1 MHz
- 1.5 kHz 15 kHz (test level 3 3) test level
- 15 kHz 150 kHz (test level 4 3) test level
- Test level 5: 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (test efficiency 3)
- Test level 6: 0 Hz 16.7 Hz 50 Hz 60 Hz (test efficiency 3)
- Alternating portion of DC voltage: Alternating share of DC voltage
- Switching percentage: 14% (UN)
- Dampened oscillating shaft: Dampened vibrating shaft
- Input, output (test level 1): 100 kHz 1 MHz (test level 2 - balanced)
- Input, output (test level 2): 100 kHz 1 MHz (test level 2 - unbalanced)
- Input, output (test level 3): 10 MHz (test level 2 - unbalanced)
- Signals (test level 1): 100 kHz 1 MHz (test level 2 - balanced)
- Signals (test level 2): 100 kHz 1 MHz (test level 2 - unbalanced)
- Dampened oscillating magnetic field: Damped oscillating magnetic field
- Criteria: Criteria
- Criterion A: Normal operating behavior within the defined limits.
- Criterion B: Temporary impairment of the operating behavior, which the device itself corrects.
- Criterion C: Intermittent impairment of the operating behavior that the device itself corrects or can be restored by operating the controls.
- Surrounding temperature (startup type tested): -40 °C
- Railway applications: Railway applications
- Product type
DC/DC converter
- Type
QUINT4-PS/48DC/48DC/5/PT
- Nominal voltage
48 V DC
- Output voltages
48 V DC
- Max. output current
5 A
- Output current (max.) - rounded
5 A
252 VA
- Connection
Push-in spring-loaded terminal
- Operating temperature (min.)
-25 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 125 x 50 x 130 mm
- Height
130 mm
- Length
125 mm
- Width
50 mm
- Content
1 pc(s)
- Depth
125 mm
IP20
- Recess height
130 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3580291 Phoenix Contact 2910128 DC/DC converter 48 V DC 48 V DC 5 A 252 VA Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3580291 Phoenix Contact 2910128 DC/DC converter 48 V DC 48 V DC 5 A 252 VA Content 1 pc(s)
Description
Primary DC/DC converter, QUINT Power, Rail Mount, SFB Technology (Selective Fuse Breaking), Input 48 V DC, Output 48 V DC / 5 A
