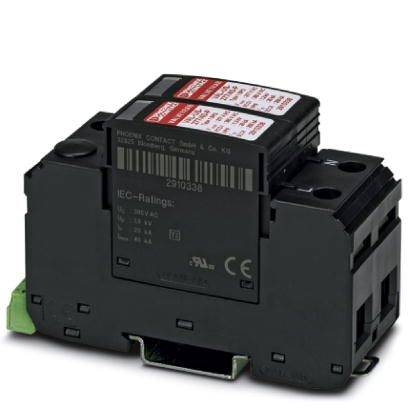

Phoenix Contact 2910344 VAL-US-48/40/1+1V-FM Surge protection device 15 kA 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Division unit: 2 TE
- Power supply system IEC: DC
- Mounting type: Mounting rail 35 mm
- Material housing: PA 6.6
- Pollution level: 2
- Flammability class according to UL 94: V-0
- Design: Two-part plug-in rail module
- Number of poles: 2
- Overvoltage protection fault message: Optical, remote signaling contact
- Maximum continuous voltage UC: 100 V DC
- Protective conductor current IPE: ≤ 0.45 mA
- Short-circuit resistance ISCCR: 5 kA
- Maximum pre-fuse for spur line wiring: 125 A (GG)
- Connection type: screw terminals.
- Rated load current IL: 80 A.
- Product type
Surge protection device
- Leakage current
15 kA
- Nominal voltage
60 V DC
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
2910344
- Factory colour
Black
- Dim
(W x H x D) 96.8 x 96.8 x 65.5 mm
- Width
96.8 mm
- Height
96.8 mm
- Depth
65.5 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2225793 Phoenix Contact 2910344 VAL-US-48/40/1+1V-FM Surge protection device 15 kA 1 pc(s)
Datasheet 2225793 Phoenix Contact 2910344 VAL-US-48/40/1+1V-FM Surge protection device 15 kA 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225793 Phoenix Contact 2910344 VAL-US-48/40/1+1V-FM Surge protection device 15 kA 1 pc(s)
Description
Separation device on each individual plug. Mechanical coding of all slots. Consists of base element and connector. Optical, mechanical status display of the individual arresters. Base element with / without potential-free telecommunication contact.
