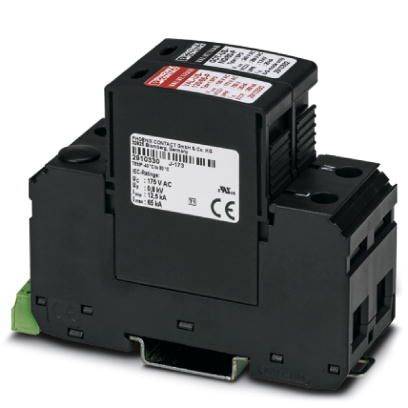

Phoenix Contact 2910356 VAL-US-120/65/1+1-FM Surge protection device Piece 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Division unit: 2 TE
- POWER SUPPLY SYSTEM IEC: TN-S, TT
- Mounting type: Mounting rail 35 mm
- Material housing: PA 6.6
- Pollution level: 2
- Flammability class according to UL 94: V-0
- Design: Two-part plug-in rail module
- Number of poles: 2
- Overvoltage protection fault message: Optical, remote signaling contact
- Protective conductor current IPE: ≤ 5 µA
- Short circuit resistance ISCCR 25kA
- Maximum pre-fuse for spur line wiring: 160 A (GG)
- Connection type: screw terminals.
- Rated load current IL: 80 A.
- Product type
Surge protection device
- Nominal voltage
120 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-40 °C - +80 °C
IP20
- Manufacturer part #
2910356
- Factory colour
Black
- Dim
(W x H x D) 96.8 x 96.8 x 77.5 mm
- Width
96.8 mm
- Height
96.8 mm
- Depth
77.5 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225796 Phoenix Contact 2910356 VAL-US-120/65/1+1-FM Surge protection device Piece 1 pc(s)
Datasheet 2225796 Phoenix Contact 2910356 VAL-US-120/65/1+1-FM Surge protection device Piece 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225796 Phoenix Contact 2910356 VAL-US-120/65/1+1-FM Surge protection device Piece 1 pc(s)
Description
With potential-free telecommunication contact. Plug can be tested with CHECKMASTER.
