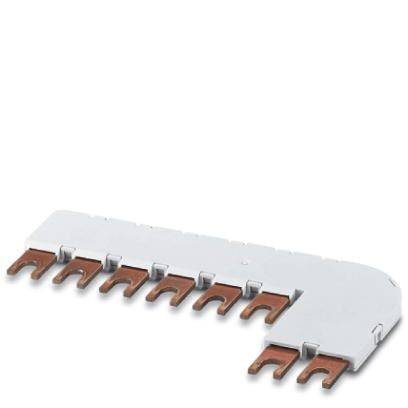

Phoenix Contact 2910501 FLT-SEC-H MPB-3+1 Surge protection bridging cable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Mounting type: Clip-on mounting
- Pollution level: 2
- Flammability class according to UL 94: V-0
- Design: Comb bridge
- Number of pins: 8
- Product type
Surge protection bridging cable
IP20
- Manufacturer part #
2910501
- Factory colour
Light grey
- Dim
(W x H x D) 141 x 141 x 2 mm
- Width
141 mm
- Height
141 mm
- Depth
2 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2225803 Phoenix Contact 2910501 FLT-SEC-H MPB-3+1 Surge protection bridging cable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2225803 Phoenix Contact 2910501 FLT-SEC-H MPB-3+1 Surge protection bridging cable 1 pc(s)
Description

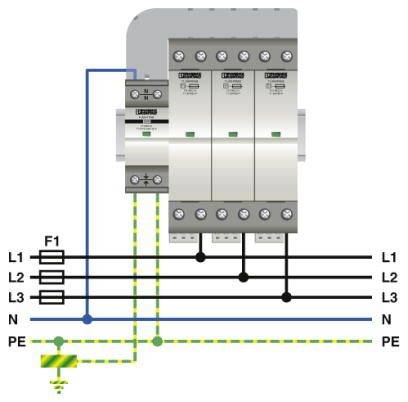

Wiring bridge for connecting three FLASHHTRAB SEC HYBRID lightning conductors to an N/PE spark gap to a 3+1 circuit for TN-S/TT systems. Connection grid 17.5 mm, 1-phase, 8-pole, cross-section 35 mm² with sturdy plastic housing for the necessary touch protection when used as a neutral conductor bridge.
