Name: Phoenix Contact 2920829 CT 10-2/2-GS/3E-110AC Cartridge Surge protection for: Networks (LSA) 5 kA Piece 1 pc(s)
Brand: Phoenix Contact
SKU: 3580277

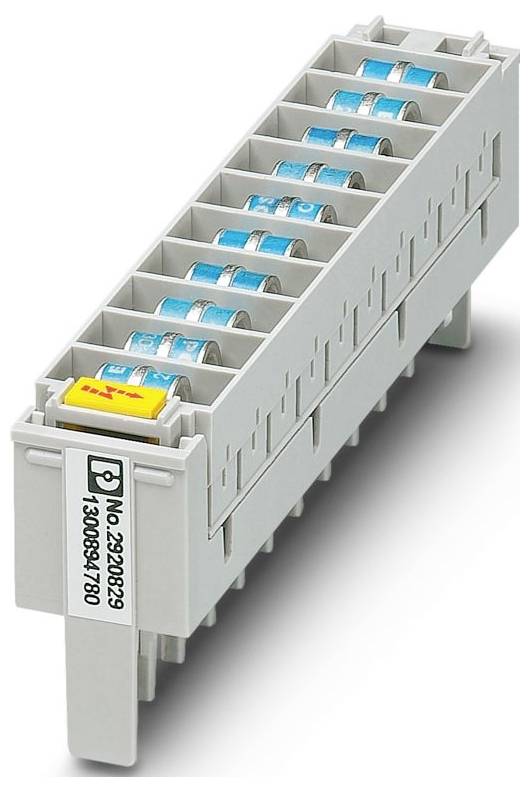

'Phoenix Contact' modular terminal block, grey with blue internal components, yellow release button on top. Used for electrical wiring.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product family: COMTRAB
IEC TEST CLASS C2; C3; D1
LSA-PLUS module
Number of pins: 20
Message Surge Protection Faulty: None
NOMINAL VOLTAGE 110 V AC
Connection type: Plugs into COMTRAB-TERMIBLOCK and LSA-PLUS separation and switching blocks
Width: 113.3 mm
Height: 22.5 mm
Depth: 41.35 mm
Colour: Grey (RAL 7042)
Flammability class according to UL 94 V-0
Material: housing: PBT
Mechanical Data: Mechanical Data
Open side wall: No.
Direction of action: Line-Line & Line-Earth Ground
Maximum continuous voltage UC: 60 V DC;130 V AC
Rated current: 1.5 A AC (per path);150 mA DC (per path)
Active operating current IC at UC: ≤ 1 µA (per path)
Earth current IPE ≤ 20 µA
Nominal pulse current Ian (10/1000)µs (wire-earth): 100 A.
Capacity (wire-earth): Typ. 5 pF
Resistance per path: ≤ 10 mΩ
Surge current (Wire-Earth) C2 - 10 kV / 5 kA;C3 - 100 A;D1 - 2.5 kA
Ambient conditions: Environmental conditions
Protection class: IP20
Ambient temperature (operation): -25 °C ... 75 °C
Height: ≤ 2000 mm (amsl)
Standards/regulations EN 61643-21
Note:2001 + A1:2009 + A2:2013
Mounting type: On CT-TERMIBLOCK and LSA-PLUS separation strip
Insulation properties: Insulation properties
Over voltage category III
Pollution level: 2
Conductor pairs per module: 10
Nominal impulse surge current In (8/20) µs (wire-ground): 5 kA
Impulse leakage surge current Iimp (10/350) µs (wire-ground) 2.5 kA
Output voltage limitation at 1 KV/µs (wire-earth) peak: ≤ 500 V
Response time TA (wire-earth): ≤ 100 ns
Alternating current (wire-earth) 10 A - 1 s
Air and creepage distances: Air and creepage distances
